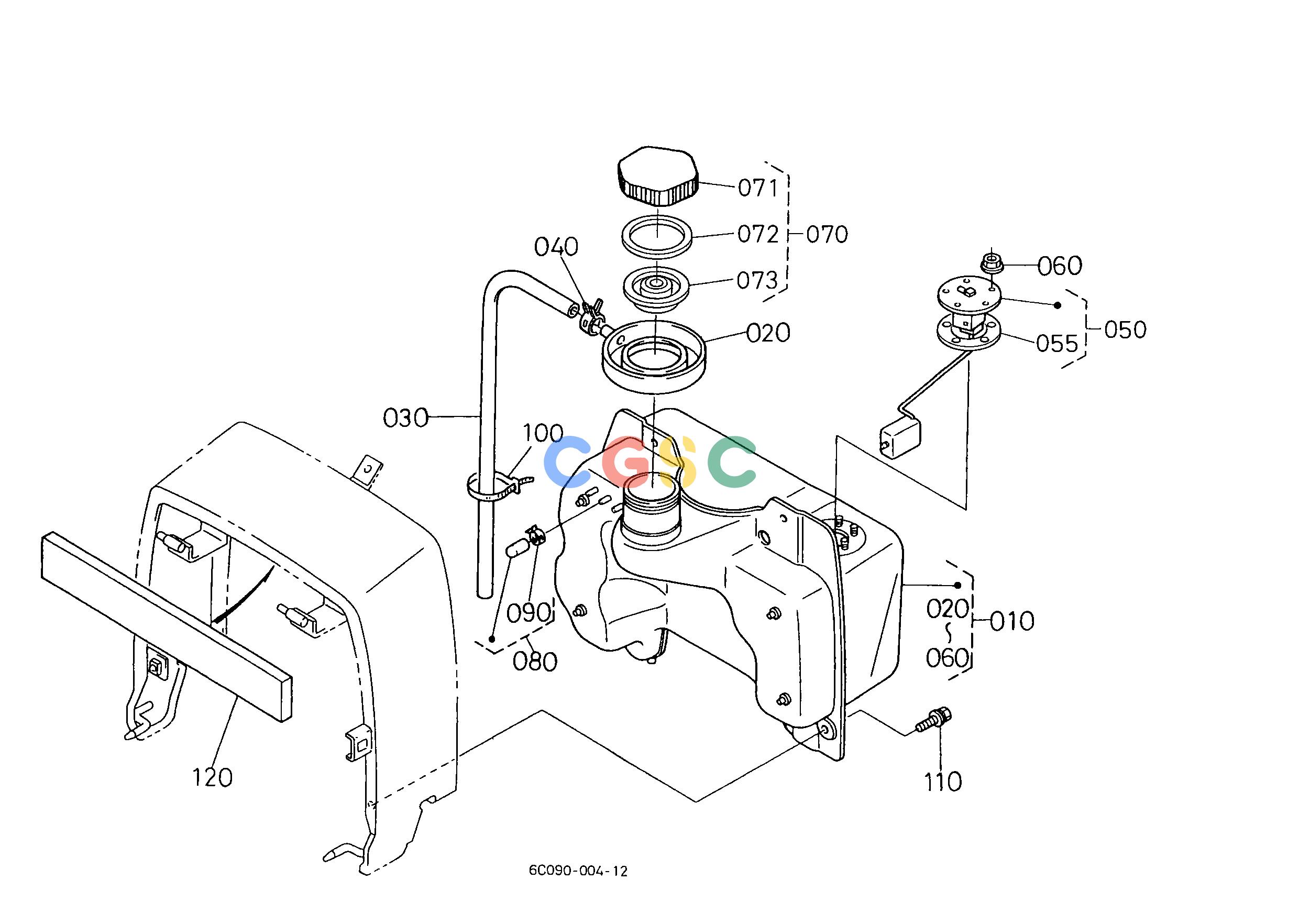

久保田零件查询T02700 FUEL TANK FUEL SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
905 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C09054700
|
[1] |
ASSY TANK FUEL
|
0.0000(lbs); 0.000
|
| 010. |
6C09054704
|
[1] |
ASSY TANK FUEL
|
9.9000(lbs); 4.500
|
| 010. |
6C09054705
|
[1] |
ASSY TANK FUEL
|
0.0000(lbs); 0.000
|
| 010. |
6C09054706
|
[1] |
ASSY TANK FUEL
|
0.0000(lbs); 0.000
|
| 010. |
6C09054708
|
[1] |
ASSY TANK FUEL
|
8.8000(lbs); 4.000
|
| 020. |
6C09054740
|
[1] |
TRAY FUEL
|
0.0880(lbs); 0.040
|
| 030. |
6C09054760
|
[1] |
PIPE
|
0.3080(lbs); 0.140
|
| 040. |
6C09054780
|
[1] |
CLAMP
|
0.0154(lbs); 0.007
|
| 050. |
6C09054750
|
[1] |
GAUGE FUEL
|
0.2640(lbs); 0.120
|
| 050. |
6C09054753
|
[1] |
GAUGE FUEL
|
0.2860(lbs); 0.130
|
| 055. |
6A32085810
|
[1] |
GASKET GAUGE
|
0.0110(lbs); 0.005
|
| 055. |
6A32085812
|
[1] |
GASKET GAUGE
|
0.0110(lbs); 0.005
|
| 060. |
6C09054860
|
[5] |
NUT FLANGE
|
0.0066(lbs); 0.003
|
| 070. |
6A10054910
|
[1] |
ASSY CAP FUEL TANK
|
0.2310(lbs); 0.105
|
| 071. |
6A10054920
|
[1] |
CAP FUEL
|
0.0902(lbs); 0.041
|
| 072. |
6A10054942
|
[1] |
SPACER
|
0.0022(lbs); 0.001
|
| 073. |
6A10054952
|
[1] |
GASKET
|
0.0440(lbs); 0.020
|
| 080. |
6C09054830
|
[1] |
ASSY CAP FUEL TANK
|
0.0088(lbs); 0.004
|
| 090. |
6C09054840
|
[1] |
CLAMP HOSE
|
0.0022(lbs); 0.001
|
| 100. |
5531141260
|
[1] |
BAND CORD
|
0.0154(lbs); 0.007
|
| 110. |
0112750820
|
[4] |
BOLT
|
0.0440(lbs); 0.020
|
| 120. |
6C09054790
|
[1] |
SPONGE
|
0.0396(lbs); 0.018
|
