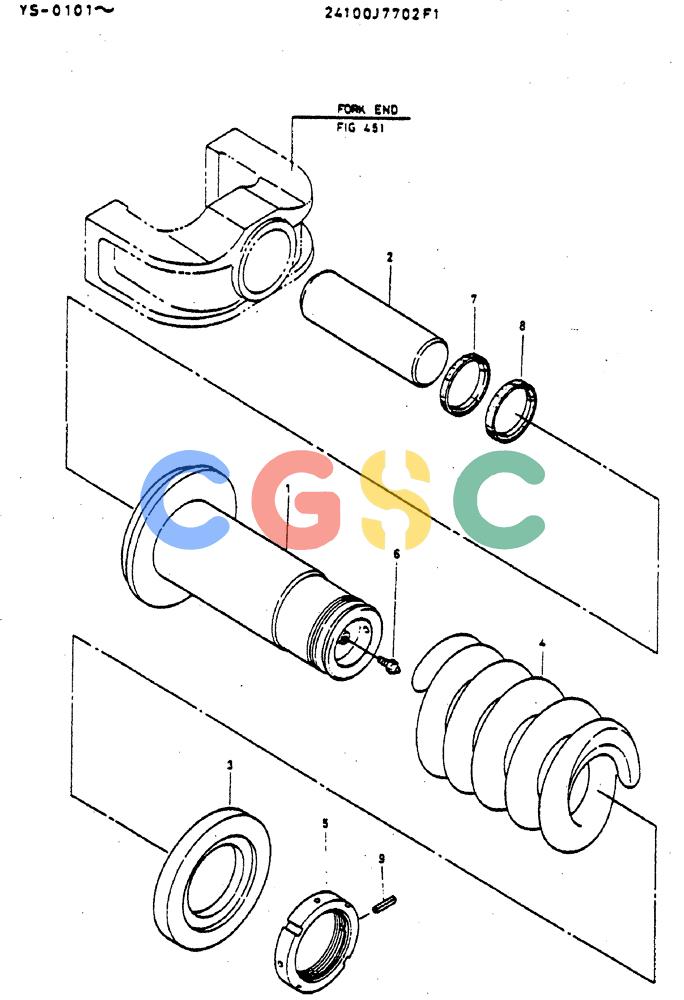

神钢零件查询(MD400LC) - EXCAVATOR BTW YS0101 - YS0200 (1/80-12/06) (06-006) - SPRING ASSY, TRACK Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
130 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J7702F1 | [1] | TRACK ASSY | KOB |
| . . | 24100J7702F2 | [1] | SPRING ASSY, TRACK | |
| 1. | 2438N175 | [1] | GREASE | KOB |
| 2. | 2439P243 | [1] | PISTON | KOB |
| 3. | 2418T9352 | [1] | PLATE | KOB |
| 4. | 2417P231 | [1] | SPRING | SPRING |
| 5. | 2420T4715 | [1] | NUT | KOB |
| 6. | 2444R923 | [1] | LUBE NIPPLE | KOBLube -- 5/8" - 18 UNF, Straight Superseded by part number: 2444P803 |
| 7. | R45T0009D6 | [1] | SEAL | KOB |
| 8. | 2445Z1044 | [1] | PACKING | KOB Superseded by part number: 2418U130D22 |
| 9. | ZP26D10045 | [2] | PIN | KOB |
| 10. | 2417P267 | [1] | SPRING | |
