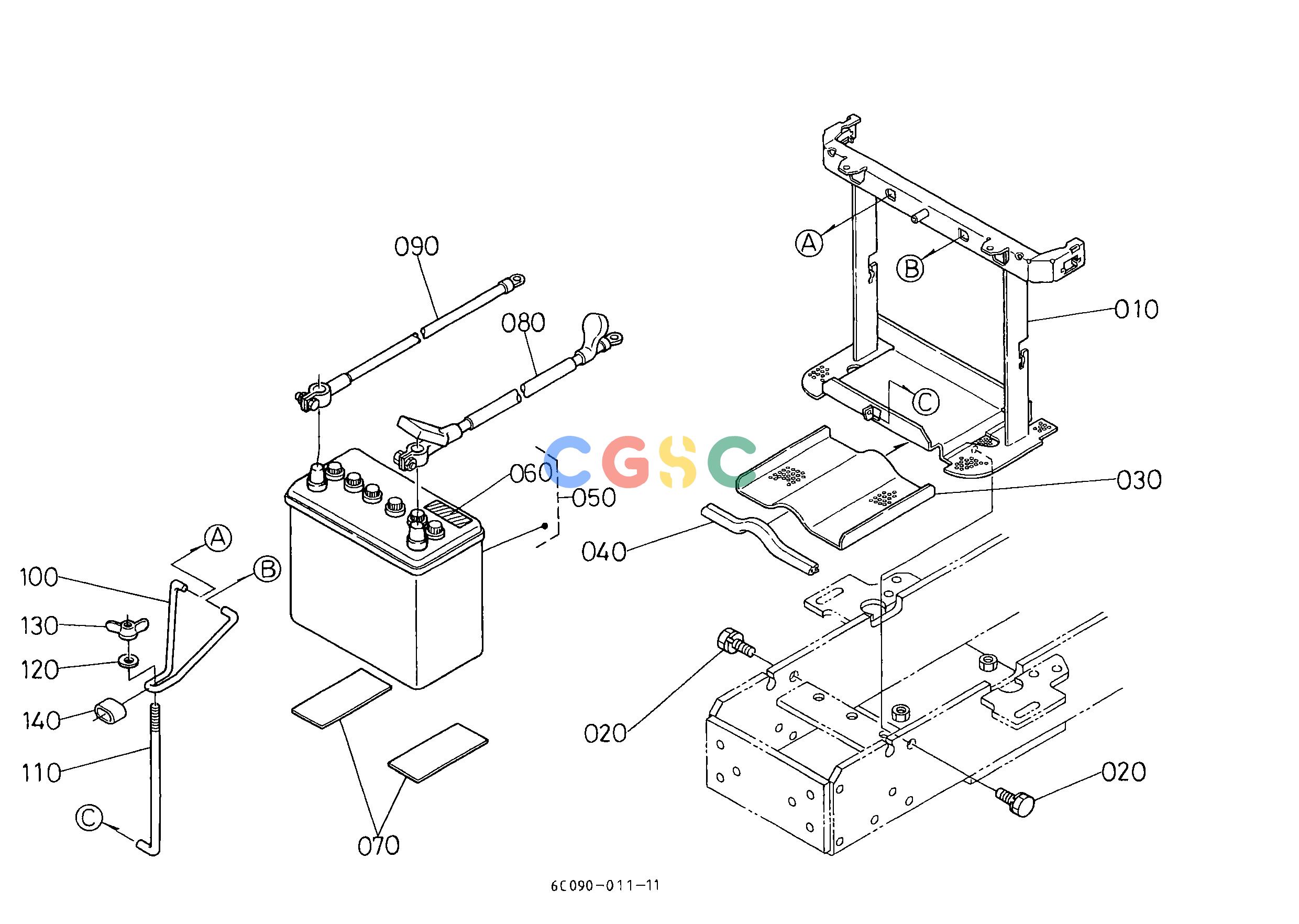

久保田零件查询T03800 BATTERY ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
373 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C09051220
|
[1] |
BRACKET BATTERY
|
5.5000(lbs); 2.500
|
| 010. |
6C09051224
|
[1] |
BRACKET BATTERY
|
5.3900(lbs); 2.450
|
| 020. |
0113351025
|
[2] |
BOLT
|
0.0506(lbs); 0.023
|
| 030. |
6C09051260
|
[1] |
NET
|
0.5720(lbs); 0.260
|
| 040. |
7665042520
|
[1] |
TRIM DUSTPROOF
|
0.0660(lbs); 0.030
|
| 050. |
6C04055510
|
[1] |
ASSY BATTERY
|
0.0000(lbs); 0.000
|
| 060. |
6C04055590
|
[1] |
LABEL BATTERY
|
0.0022(lbs); 0.001
|
| 060. |
6C02192120
|
[1] |
LABEL BATTERY
|
0.0022(lbs); 0.001
|
| 070. |
3415033220
|
[2] |
CUSHION
|
0.0330(lbs); 0.015
|
| 080. |
6C09055530
|
[1] |
CORD BATTERY(+)
|
0.4840(lbs); 0.220
|
| 090. |
6C04055540
|
[1] |
CORD BATTERY(-)
|
0.2420(lbs); 0.110
|
| 100. |
6C09055550
|
[1] |
RETAINER BATTERY
|
0.0110(lbs); 0.005
|
| 110. |
6C04055560
|
[1] |
BOLT HOOK
|
0.0836(lbs); 0.038
|
| 120. |
0401560060
|
[1] |
WASHER PLAIN
|
0.0110(lbs); 0.005
|
| 130. |
0281050060
|
[1] |
NUT WING
|
0.0198(lbs); 0.009
|
| 140. |
6C04055580
|
[1] |
CUSHION
|
0.0044(lbs); 0.002
|
