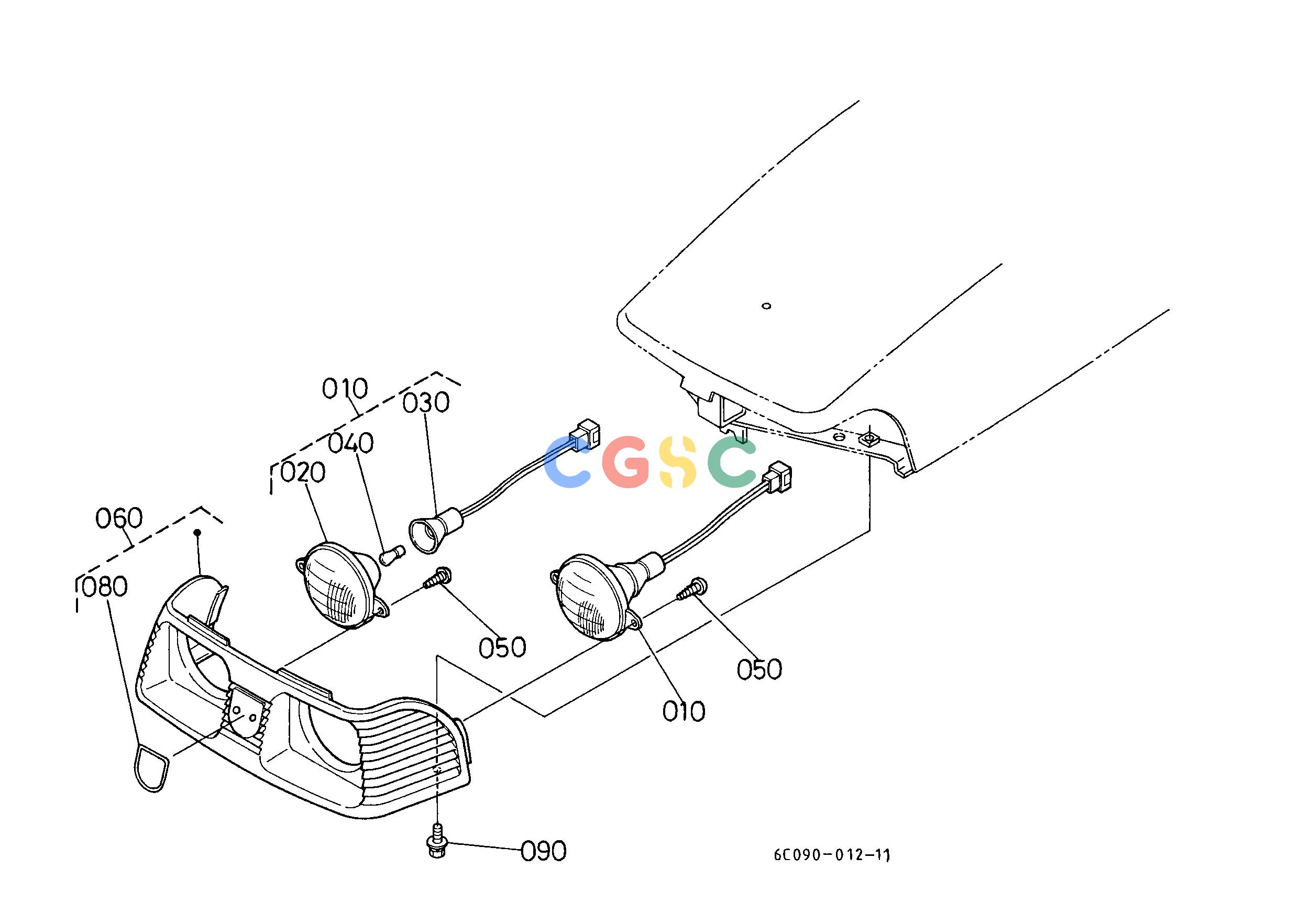

久保田零件查询T03900 HEAD LIGHT ## NOTE:Both sides are simultaneously exchanged for REF.No.010 new parts. ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
128 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C09055610
|
[2] |
ASSY LIGHT HEAD
|
0.2860(lbs); 0.130
|
| 010. |
6C09055612
|
[2] |
ASSY LIGHT HEAD
|
0.3960(lbs); 0.180
|
| 020. |
6659155610
|
[2] |
LAMP HEAD
|
0.3300(lbs); 0.150
|
| 030. |
6C04055630
|
[2] |
COMP.SOCKET
|
0.0418(lbs); 0.019
|
| 040. |
6659155630
|
[2] |
BULB
|
0.0176(lbs); 0.008
|
| 050. |
0351450512
|
[4] |
SCREW TAPPING
|
0.0066(lbs); 0.003
|
| 060. |
6C09054180
|
[1] |
ASSY GRILLE
|
0.8580(lbs); 0.390
|
| 080. |
6C09054290
|
[1] |
MARK MASCOT
|
0.0220(lbs); 0.010
|
| 090. |
0112560820
|
[3] |
BOLT
|
0.0330(lbs); 0.015
|
