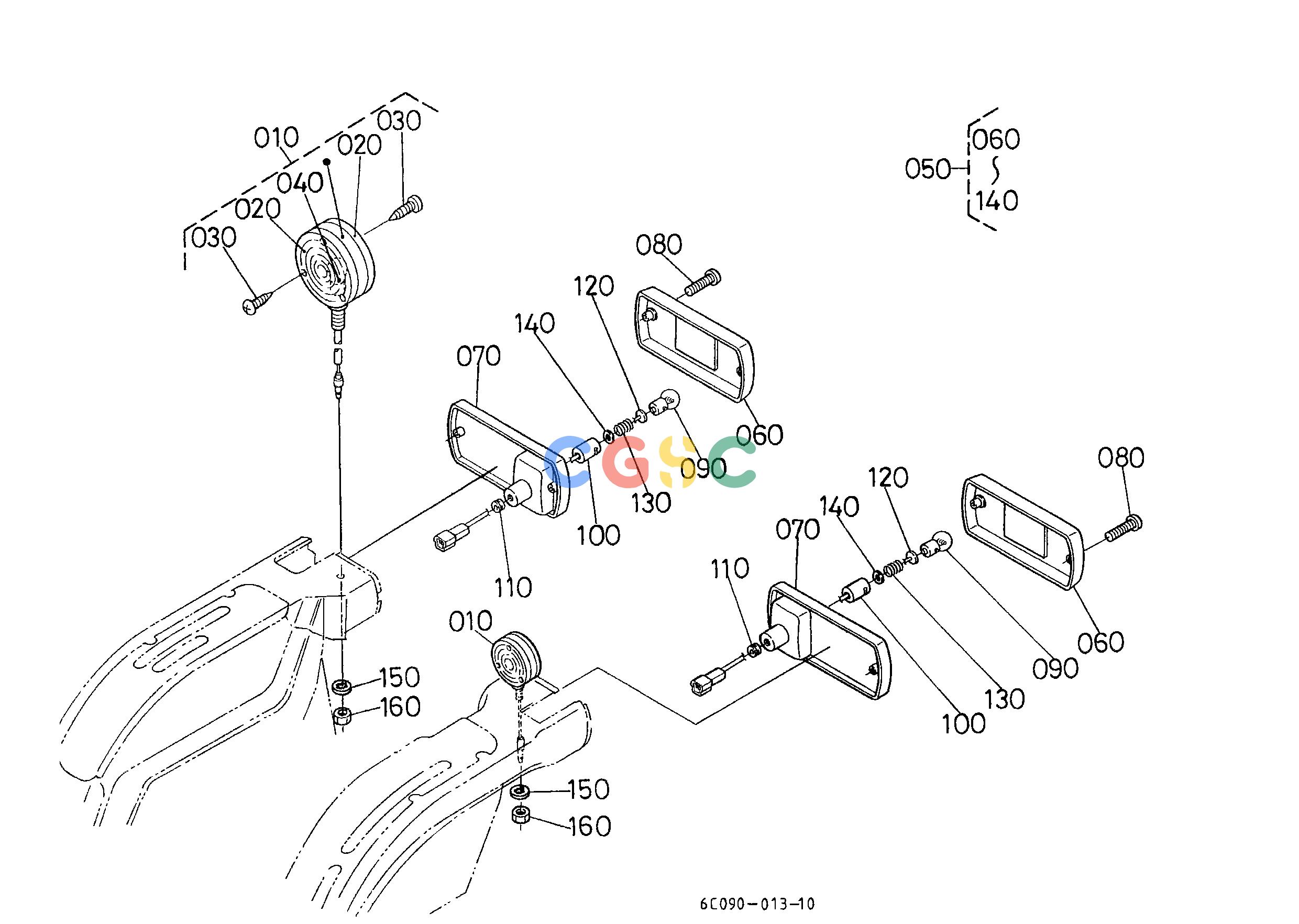

久保田零件查询T04000 HAZARD LIGHT/TAIL LIGHT ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
126 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3253033610
|
[2] |
ASSY LIGHT HAZARD
|
0.8360(lbs); 0.380
|
| 020. |
3253091510
|
[4] |
LENS HAZARD LIGHT
|
0.1870(lbs); 0.085
|
| 030. |
3253091520
|
[12] |
SCREW TAPPING
|
0.0022(lbs); 0.001
|
| 040. |
3253091530
|
[2] |
BULB LIGHT
|
0.0440(lbs); 0.020
|
| 050. |
6C04055490
|
[2] |
ASSY LIGHT TAIL
|
0.4400(lbs); 0.200
|
| 060. |
6C04092200
|
[2] |
ASSY LENS
|
0.2200(lbs); 0.100
|
| 070. |
6C04092120
|
[2] |
BODY
|
0.1430(lbs); 0.065
|
| 080. |
6C04092140
|
[4] |
SCREW
|
0.0154(lbs); 0.007
|
| 090. |
6C04092150
|
[2] |
BULB
|
0.0132(lbs); 0.006
|
| 100. |
6C04092160
|
[2] |
SOCKET
|
0.0154(lbs); 0.007
|
| 110. |
6C04092170
|
[2] |
BUSH RUBBER
|
0.0022(lbs); 0.001
|
| 120. |
6C04092180
|
[2] |
INSULATOR
|
0.0022(lbs); 0.001
|
| 130. |
6C04092190
|
[2] |
SPRING
|
0.0022(lbs); 0.001
|
| 140. |
6C04092210
|
[2] |
WASHER
|
0.0022(lbs); 0.001
|
| 150. |
0441150100
|
[2] |
WASHER TOOTHED
|
0.0022(lbs); 0.001
|
| 160. |
0211450100
|
[2] |
NUT
|
0.0110(lbs); 0.005
|
