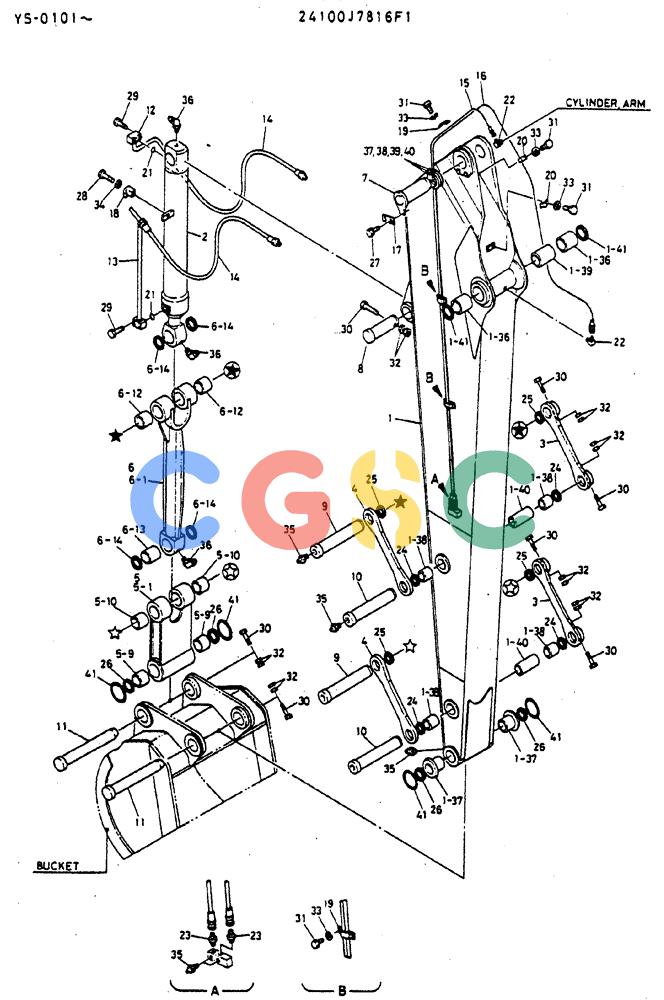

| . . | 24100J7816F1 | [1] | ARM ASSY, LONG | |
| 1. | 2411X941 F1 | [1] | ARM | |
| 1-36. | 2405T919 | [2] | BUSHING | KOB |
| 1-37. | 2405T1216 | [2] | BUSHING | KOB Superseded by part number: 2405T1883 |
| 1-38. | 2405T907 | [4] | BUSHING,80mm ID x 95mm OD x 85mm L | KOB |
| 1-39. | 2418T9359 | [1] | SPACER | KOB |
| 1-40. | 2418T9772 | [2] | SPACER | KOB |
| 1-41. | 2445R138D13 | [2] | RUBBER SEAL,120mm ID x 140mm OD x 4mm Thk | KOBDust -- ID 120 x OD 140 x Th 4mm |
| 2. | 2438U778F1 | [1] | BUCKET CYLINDER | KOBSEE FIGURE (C.P.M.) |
| 3. | 2406P2818D1 | [2] | LINK, IDLER | LINK, IDLER |
| 4. | 2406P2818D2 | [2] | LINK, IDLER | LINK, IDLER |
| 5. | 2406N1026F1 | [1] | LINK, BUCKET | LINK, BUCKET |
| 5-1. | 2406N1026 | [1] | LINK | |
| 5-9. | 2405T1215 | [2] | BUSHING,90mm ID x 105mm OD x 95mm L | KOB |
| 5-10. | 2405T1109 | [2] | BUSHING | KOB |
| 6. | 2406N1027F1 | [1] | LINK | LINK |
| 6-1. | 2406N1027 | [1] | LINK | |
| 6-12. | 2405T1109 | [2] | BUSHING | KOB |
| 6-13. | 2405T1122 | [1] | BUSHING | KOB |
| 6-14. | 2445R138D8 | [4] | SEAL,90mm ID x 105mm OD x 4mm Thk | KOBDust -- ID 90 x OD 105 x Th 4mm |
| 6- 15. | ZG91S02000 | [1] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| 7. | 2419P2209 | [1] | PIN | PIN |
| 8. | 2419P1851 | [1] | PIN | KOB |
| 9. | 2419P2141 | [2] | PIN | KOB |
| 10. | 2419P2142 | [2] | PIN | KOB |
| 11. | 2419P2180 | [2] | PIN | KOB Superseded by part number: 2419P4000 |
| 12. | 2418N2164 | [1] | TUBE | KOB |
| 13. | 2418P10753 | [1] | TUBE | KOB |
| 14. | ZX58N16200 | [2] | FLEXIBLE HOSE | KOB2000mm Long (78-3/4 in) |
| 15. | 2420R349D3 | [1] | FLEXIBLE HOSE | KOB Superseded by part number: 2420R349D390 |
| 16. | 2420R349D18 | [1] | HOSE ASSY | HOSE ASSY |
| 17. | 2418T3887D1 | [1] | PLATE | KOB |
| 18. | 2432T1213D2 | [1] | CLAMP | KOB |
| 19. | 2416T5904 | [3] | CLAMP | KOB |
| 20. | 2416T4333 | [2] | CLAMP | KOB |
| 21. | ZD12P03400 | [2] | O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro | KOBID 33.70 ± 0.33 x OD 40mm |
| 22. | 2444T2032 | [2] | HYD CONNECTOR | KOBElbow, 90° -- 1/4" PF - 1/8" PT x 20mm Long |
| 23. | ZH22Z04000 | [2] | HYD CONNECTOR | KOB1/4"PTx1/4"PFx37mm Long |
| 24. | 2445R138D7 | [4] | SEAL,80mm ID x 95mm OD x 4mm Thk | KOBDust -- ID 80 x OD 95 x Th 4mm |
| 25. | 2445R138D6 | [4] | SEAL,70mm ID x 85.3mm OD x 4mm Thk | KOBSeal, Dust -- ID 70 x OD 85 x Th 4mm |
| 26. | 2445R220D6 | [4] | SEAL,90mm ID x 105mm OD x 6mm Thk | KOBDust -- ID 90 X OD 105 x Th 6mm |
| 27. | ZS18C12025 | [2] | SCREW,Hex, M12 x 25mm | KOBM12x1.75x25mm |
| 28. | ZS18C12065 | [1] | SCREW,Hex, M12 x 65mm | KOBM12x1.75x65mm |
| 29. | ZS18C12075 | [8] | SCREW,Hex, M12 x 75mm | KOBM12x1.75x75mm |
| 30. | ZS18C20160 | [7] | SCREW,Hex, M20 x 160mm | KOBM20x2.50x160mm |
| 31. | ZS18C08012 | [10] | SCREW,Hex, M8 x 12mm | KOBM08x1.25x12mm |
| 32. | ZN18C20016 | [14] | NUT | KOBM20x2.5mm |
| 33. | ZW26X08000 | [10] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 34. | ZW26X12000 | [3] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 35. | ZG91S02000 | [15] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| 37. | 2420T2747D7 | [1] | SHIM,112mm ID x 180mm OD x 1.2mm Thk | KOBID 112 x OD 180 x Th 1.2mm |
| 38. | 2420T2747D8 | [1] | SHIM,112mm ID x 180mm OD x 1.6mm Thk | KOBID 112 x OD 180 x Th 1.6mm |
| 39. | 2420T2747D9 | [1] | SHIM,112mm ID x 180mm OD x 2.3mm Thk | KOBID 112 x OD 180 x Th 2.3mm |
| 40. | 2420T2747D10 | [1] | SHIM,112mm ID x 180mm OD x 3.2mm Thk | KOBID 112 x OD 180 x Th 3.2mm |
| 41. | 2445Z1003 | [4] | O-RING | KOB |
