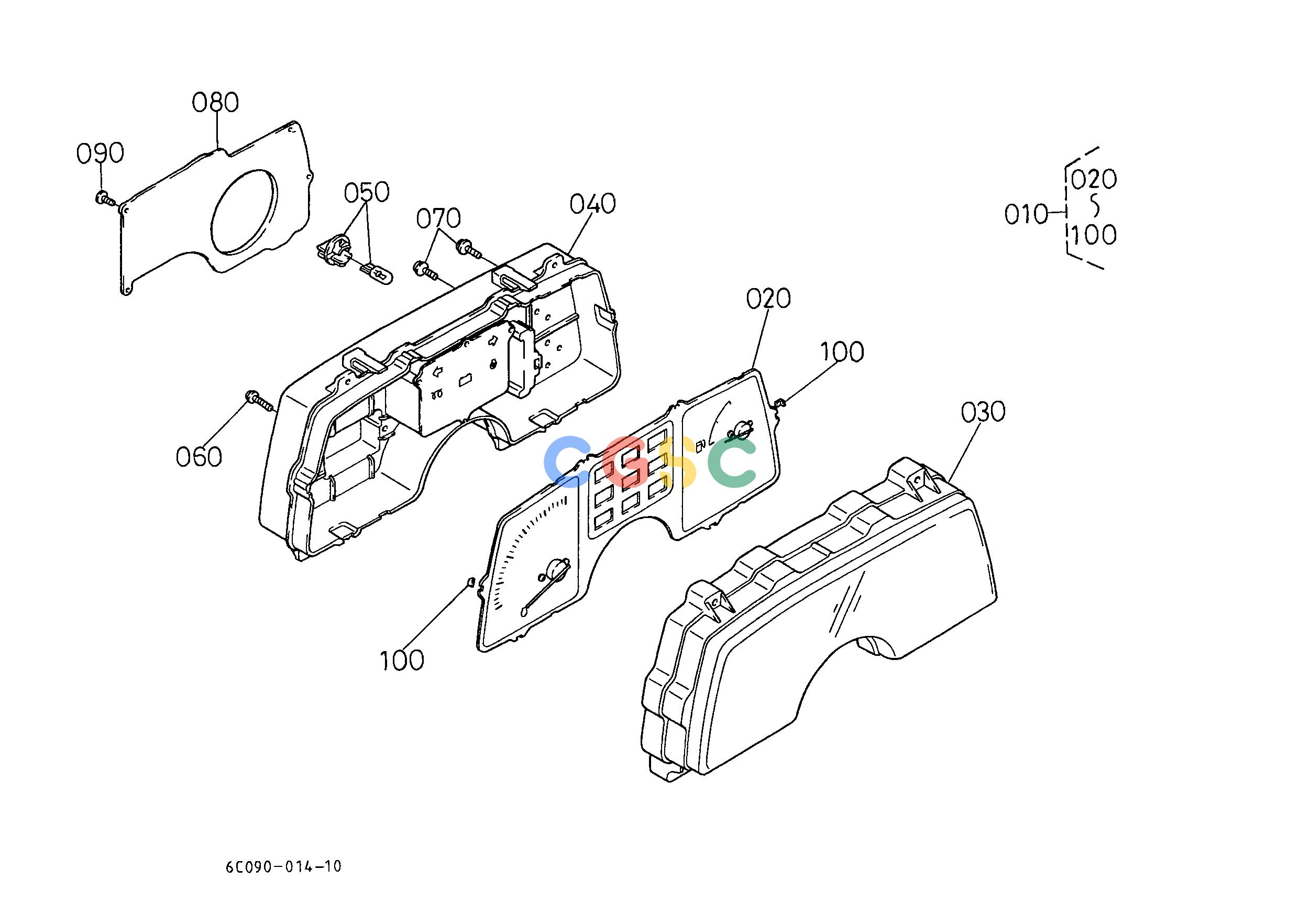

久保田零件查询T04200 METER [COMPONENT PARTS] ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
730 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C09055100
|
[1] |
ASSY METER
|
1.6940(lbs); 0.770
|
| 020. |
6C09055110
|
[1] |
COMP.METER
|
0.9460(lbs); 0.430
|
| 030. |
6C04055120
|
[1] |
GLASS
|
0.3520(lbs); 0.160
|
| 040. |
6C04055130
|
[1] |
ASSY CASE
|
0.5500(lbs); 0.250
|
| 050. |
6C04055140
|
[5] |
ASSY BULB
|
0.0066(lbs); 0.003
|
| 060. |
6C04055150
|
[2] |
SCREW
|
0.0044(lbs); 0.002
|
| 070. |
6C04055160
|
[6] |
SCREW
|
0.0044(lbs); 0.002
|
| 080. |
6C04055172
|
[1] |
COVER
|
0.1364(lbs); 0.062
|
| 090. |
6C04055180
|
[2] |
SCREW
|
0.0066(lbs); 0.003
|
| 100. |
6C04055190
|
[6] |
CUSHION
|
0.0022(lbs); 0.001
|
