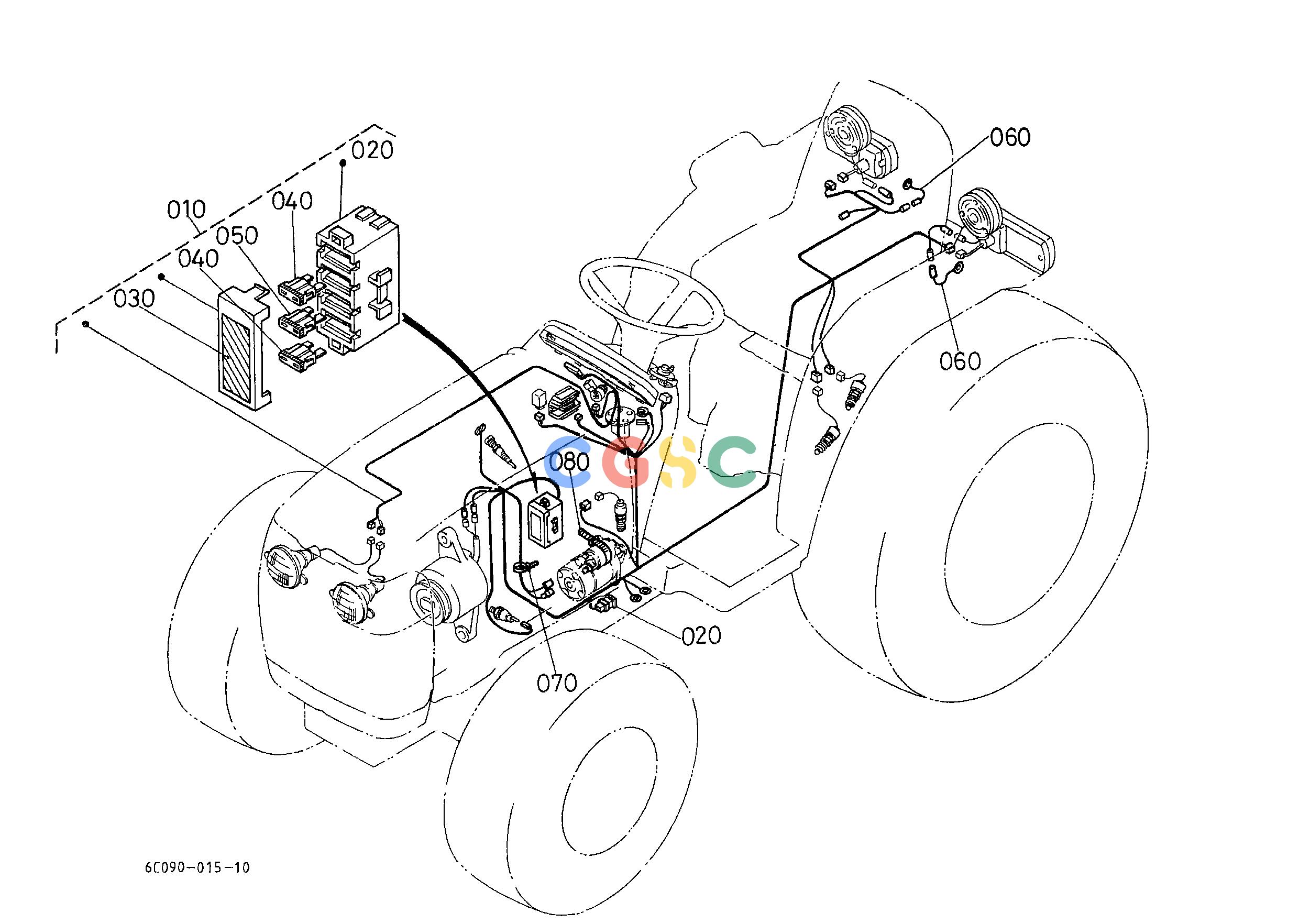

久保田零件查询T04300 WIRE HARNESS ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
397 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C09055462
|
[1] |
ASSY WIRE HARNESS
|
1.1000(lbs); 0.500
|
| 020. |
1G11165720
|
[1] |
FUSE
|
0.0198(lbs); 0.009
|
| 030. |
6C09047490
|
[1] |
LABEL FUSE BOX
|
0.0022(lbs); 0.001
|
| 030. |
6C09147490
|
[1] |
LABEL FUSE BOX FR
|
0.0022(lbs); 0.001
|
| 040. |
3673075550
|
[2] |
FUSE AUTO
|
0.0066(lbs); 0.003
|
| 050. |
5220041620
|
[1] |
FUSE AUTO
|
0.0066(lbs); 0.003
|
| 060. |
6C04055480
|
[2] |
WIRE HARNESS
|
0.0110(lbs); 0.005
|
| 070. |
5358164150
|
[1] |
BAND CORD
|
0.0044(lbs); 0.002
|
| 080. |
5531141260
|
[1] |
BAND CORD
|
0.0154(lbs); 0.007
|
