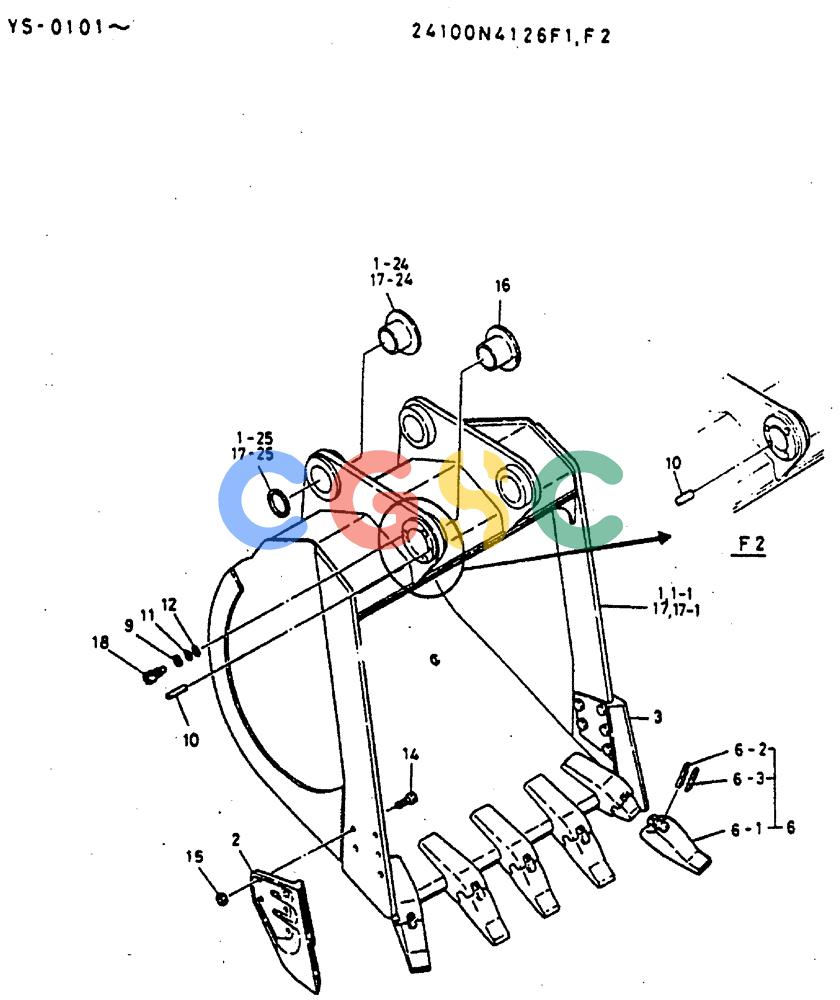

神钢零件查询(MD400LC) - EXCAVATOR BTW YS0101 - YS0200 (1/80-12/06) (07-008) - BUCKET ASSY, 2.09 CU YD Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
623 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N4126F1 | [1] | BUCKET ASSY, 2.09CU YD YS. 0101 to YS. 0121 | |
| . . | 24100N4126F2 | [1] | BUCKET ASSY, 2.09CU YD YS., Start Serial: 0122 | |
| 1. | 2412J882F1 | [1] | BUCKET ASSY YS., Start Serial: 0122 | |
| 1-1. | 2412J882 | [1] | BUCKET YS., Start Serial: 0122 | |
| 1-24. | 2405P275 | [3] | BUSHING | KOBYS., Start Serial: 0122 |
| 1-25. | 2445R138D9 | [4] | SEAL,100mm ID x 120mm OD x 4mm Thk | KOBDust -- ID 100 x OD 120 x Th 4mm |
| 2. | 2412P239C2D1 | [1] | BLADE | KOB |
| 3. | 2412P239C2D2 | [1] | BLADE | KOB |
| 6. | 2412U173 | [5] | TOOTH ASSY | |
| 6-1. | 2412U173S1 | [1] | POINT, TOOTH | POINT, TOOTH |
| 6-2. | 2412U62S2 | [1] | PIN | KOB |
| 6-3. | 2412U62S3 | [1] | LOCK PIN | KOB |
| 9. | ZW26K20000 | [3] | WASHER | KOB |
| 10. | 2419T4628D2 | [1] | PIN | KOB |
| 11. | 2418T14548D2 | [3] | SHIM | KOBID 21 x OD 32 x Th 3.2mm |
| 12. | 2418T14548D1 | [30] | SHIM | KOBID 21 x OD 32 x Th 1.0mm |
| 14. | ZS18C24070 | [10] | SCREW,Hex, M24 x 70mm | KOBM24x3.0x70mm |
| 15. | ZN18C24019 | [10] | NUT | KOBM24x3.0mm |
| 16. | 2405T1227 | [1] | BUSHING | KOB |
| 17. | 2412J748F1 | [1] | BUCKET ASSY YS. 0101 to YS. 0121 | |
| 17-1. | 2412J748 | [1] | BUCKET YS. 0101 to YS. 0121 | |
| 17-24. | 2405P275 | [3] | BUSHING | KOBYS. 0101 to YS. 0121 |
| 17-25. | 2445R138D9 | [4] | SEAL,100mm ID x 120mm OD x 4mm Thk | KOBDust -- ID 100 x OD 120 x Th 4mm YS. 0101 to YS. 0121 |
| 18. | 2420Z1640D3 | [3] | SCREW | KOBM20 x 77mm Long |
