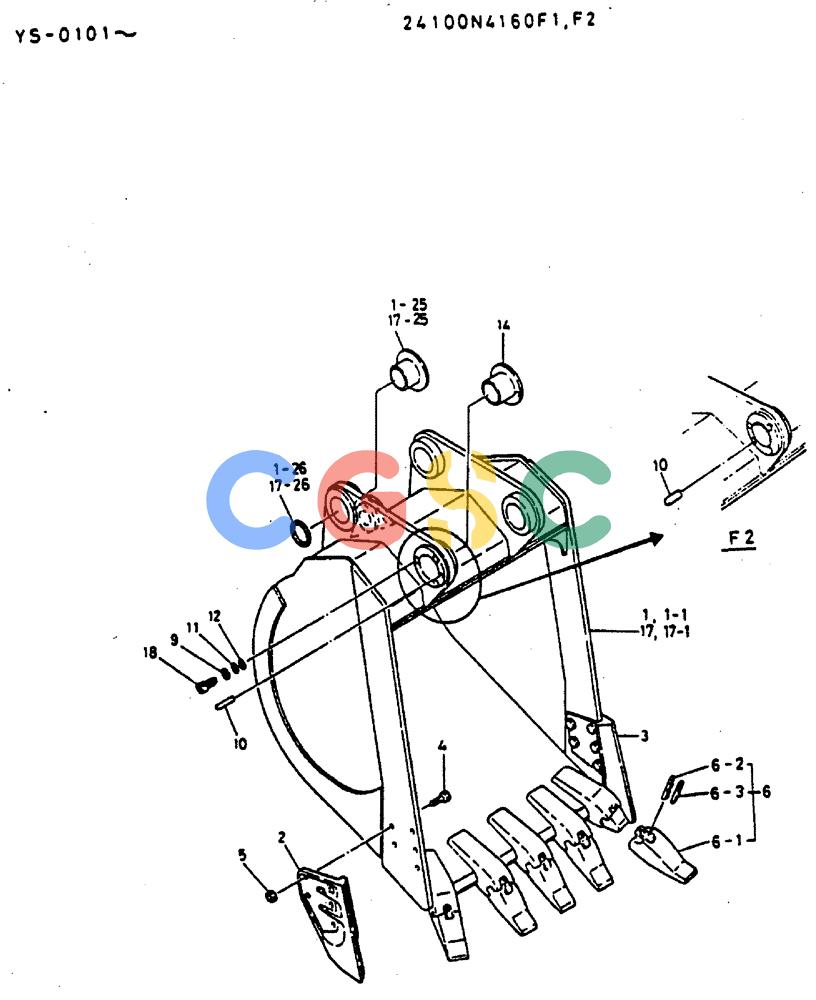

神钢零件查询(MD400LC) - EXCAVATOR BTW YS0101 - YS0200 (1/80-12/06) (07-009) - BUCKET ASSY, 1.83 CU YD Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
120 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N4160F1 | [1] | BUCKET ASSY, 1.63CU YD | |
| . . | 2410N4160F2 | [1] | BUCKET ASSY, 1.63CU YD | |
| 1. | 2412J887F1 | [1] | BUCKET ASSY | |
| 1-1. | 2412J887 | [1] | BUCKET | |
| 1-25. | 2405P275 | [3] | BUSHING | KOB |
| 1-26. | 2445R138D9 | [4] | SEAL,100mm ID x 120mm OD x 4mm Thk | KOBDust -- ID 100 x OD 120 x Th 4mm |
| 2. | 2412P239C2D1 | [1] | BLADE | KOB |
| 3. | 2412P239C2D2 | [1] | BLADE | KOB |
| 4. | ZS18C24070 | [10] | SCREW,Hex, M24 x 70mm | KOBM24x3.0x70mm |
| 5. | ZN18C24019 | [10] | NUT | KOBM24x3.0mm |
| 6. | 2412U173F1 | [5] | BUCKET TOOTH POINT | KOBTOOTH |
| 6-1. | 2412U173S1 | [1] | POINT, TOOTH | POINT, TOOTH |
| 6-2. | 2412U62S2 | [1] | PIN | KOB |
| 6-3. | 2412U62S3 | [1] | LOCK PIN | KOB |
| 9. | ZW26K20000 | [3] | WASHER | KOB |
| 10. | 2419T4628D2 | [1] | PIN | KOB |
| 11. | 2418T14548D2 | [3] | SHIM | KOBID 21 x OD 32 x Th 3.2mm |
| 12. | 2418T14548D1 | [30] | SHIM | KOBID 21 x OD 32 x Th 1.0mm |
| 14. | 2405T1227 | [1] | BUSHING | KOB |
| 17. | 2412J761F1 | [1] | BUCKET ASSY | |
| 17-1. | 2412J761 | [1] | BUCKET | |
| 17-25. | 2405P275 | [3] | BUSHING | KOB |
| 17-26. | 2445R138D9 | [4] | SEAL,100mm ID x 120mm OD x 4mm Thk | KOBDust -- ID 100 x OD 120 x Th 4mm |
| 18. | 2420Z1640D3 | [3] | SCREW | KOBM20 x 77mm Long |
