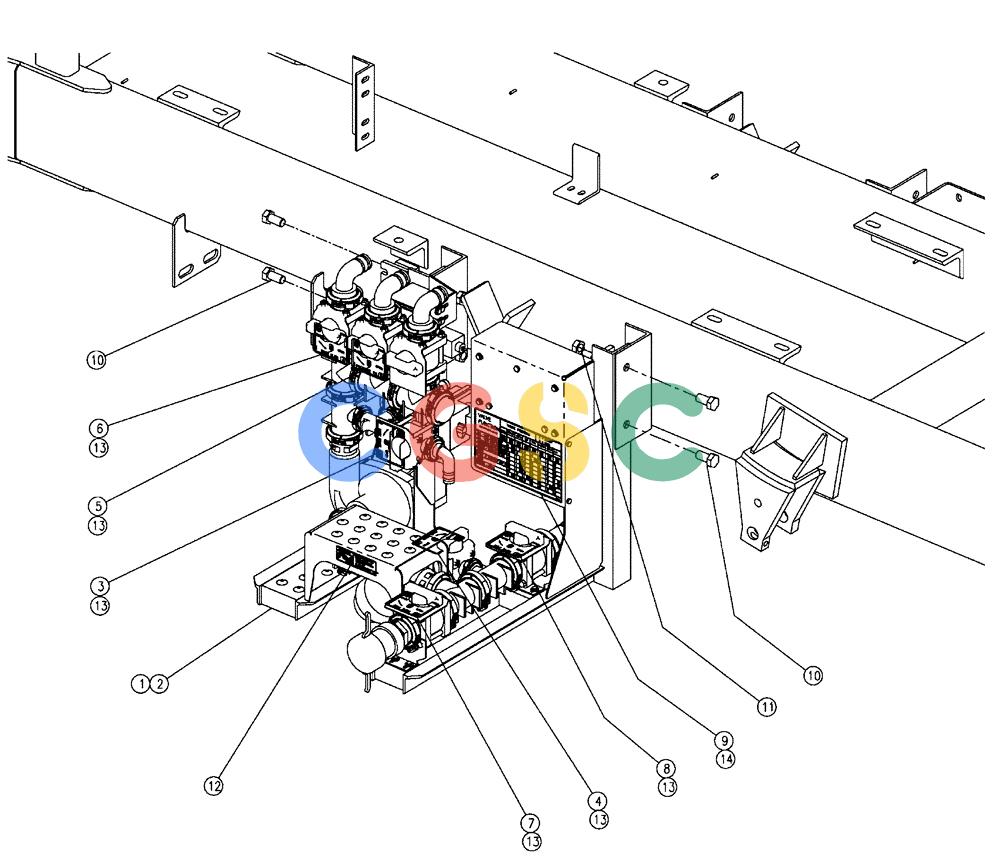

凯斯零件查询(FLX810) - FLEX-AIR APPLICATOR (10/03-8/09) (10-017) - PUMP STATION GROUP, 60’ & 70’ Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
297 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
NS
|
[1] |
NOT SERVICED
|
BAS
Pump Station, Bracket, 438A
|
| 3. |
BN306582
|
[1] |
DECAL
|
BN
Tank Rinse
|
| 4. |
BN306583
|
[1] |
DECAL
|
BN
Tank Rinse
|
| 5. |
BN306585
|
[1] |
DECAL
|
BN
Pressure Fill
|
| 6. |
BN310013
|
[1] |
DECAL
|
BN
Boom Flow
|
| 7. |
BN310017
|
[1] |
DECAL
|
BN
Tank Fill, Outside
|
| 8. |
BN310018
|
[1] |
DECAL
|
BN
Tank Fill, Inside
|
| 9. |
BN310019
|
[1] |
DECAL
|
BN
Valve Control
|
| 10. |
88692
|
[4] |
BOLT,Hex, 3/4" - 10 x 1 1/2", Gr 5, Full Thd
|
GI
|
| 11. |
280375
|
[4] |
NUT,3/4"-10, GC
|
WIN
|
| 12. |
BN67243
|
[1] |
DECAL
|
BN
Strainer Pressure
|
| 13. |
342511A1
|
[6] |
DECAL
|
BN
overlay, valve function
|
| 14. |
342512A1
|
[1] |
DECAL
|
BN
overlay, valve control
|
