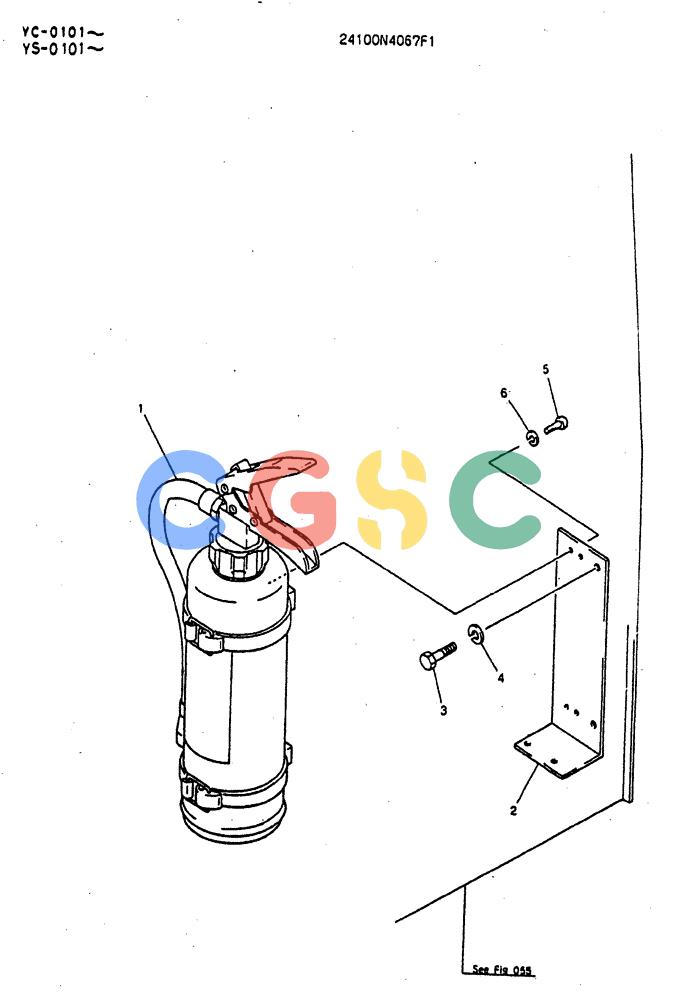

神钢零件查询(MD400LC) - EXCAVATOR BTW YS0101 - YS0200 (1/80-12/06) (08-002) - INSTAL FIRE EXTINGUISHER Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
668 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100NO67F1 | [1] | INSTAL, FIRE EXTINGUISHER | |
| 1. | 2437R110 | [1] | EXTINGUISHER | |
| 2. | 2416P87R0 | [1] | BRACKET | |
| 3. | ZS16C10016 | [2] | SCREW | KOBM10x1.50x16mm Superseded by part number: ZS18C10016 |
| 4. | ZW26X10000 | [2] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 5. | ZS31C05010 | [4] | BOLT,Phillips Drive, Pan HD, M5 x 10mm | KOBM05x0.8x10mm |
| 6. | ZH26X05000 | [4] | LOCK WASHER | |
