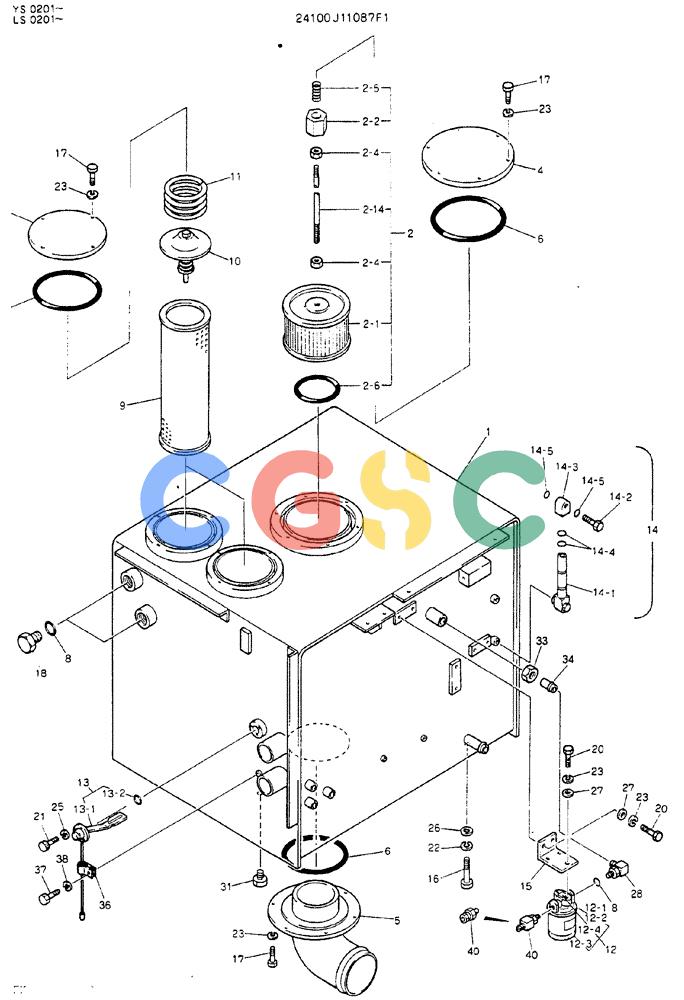

| . . | 24100J11087F1 | [1] | TANK ASSY, HYDR | |
| 1. | 2427J1423 | [1] | TANK, HYD | TANK, HYD |
| 2. | 2446R146F9 | [1] | STRAINER ELEMENT | KOB |
| 2-1. | 2446R146S1 | [1] | STRAINER ELEMENT | KOB Superseded by part number: 2446U173 |
| 2-2. | 2446R146S2 | [1] | HOLDER GUIDE | HOLDER GUIDE |
| 2-4. | 2446R146S4 | [2] | NUT | |
| 2-5. | 2446R146S5 | [1] | SPRING | SPRING |
| 2-6. | 2446R146S6 | [1] | O-RING | KOB |
| 2-14. | 2446R146S14 | [1] | BOLT | KOB |
| 3. | 2418T12123 | [2] | FLANGE | KOB |
| 4. | 2418T18899 | [1] | FLANGE | KOB |
| 5. | 2418P20249 | [1] | FLANGE | KOBFLANGE |
| 6. | ZD11G22000 | [2] | O-RING,5.7mm Thk x 219.3mm ID, 70 Duro | KOBO-Ring -- ID 219.30 ± 1.68 x OD 222.66mm |
| 7. | ZD11G19000 | [2] | O-RING,189.30mm ID x 200.70mm OD x 5.70mm | KOBID 189.30 ± 1.47 x OD 200mm |
| 8. | ZD12P03800 | [3] | O-RING | KOBID 37.70 ± 0.37 x OD 44.7mm |
| 9. | R36P0002 | [2] | ELEMENT | KOBRETURN Superseded by part number: YN50V00001P1 |
| 10. | 2436U1243F1 | [2] | VALVE | KOBBY-PASS |
| 11. | 2417T448 | [2] | SPRING | KOB |
| 12. | 2446U216F1 | [1] | HYDRAULIC OIL FILTER | KOB |
| 12-1. | 2446U216S1 | [1] | HEAD | |
| 12-2. | 2446U184S2 | [1] | VALVE ASSY | |
| 12-3. | 2446U146S3 | [1] | HYDRAULIC OIL FILTER | KOBCARTRIDGE |
| 12-4. | 2446U216S4 | [1] | NAME PLATE | |
| 13. | 2489R302F1 | [1] | SWITCH | KOBLEVEL |
| 13-1. | 2489R302S1 | [1] | SWITCH | KOB Superseded by part number: 77260484, 2489R302F1 |
| 13-2. | 2489R302S2 | [1] | O-RING | KOB |
| 14. | 2489R293F1 | [1] | LEVEL GAUGE | KOB Superseded by part number: YN58S00009F1 |
| 14-1. | 2489R173S1 | [1] | GAUGE | KOB |
| 14-2. | 2489R174S3 | [2] | BOLT | KOBSpecial -- M10x1.50x40mm Long |
| 14-3. | 2489R174S2 | [2] | BLOCK | KOBGAUGE, LEVEL |
| 14-4. | ZD11P01800 | [4] | O-RING | KOBID 17.80 ± 0.21 x OD 22mm |
| 14-5. | ZD11P01000 | [4] | O-RING | KOBID 9.8 ± 0.17 x OD 13.6mm |
| 15. | 2416T21697 | [1] | BRACKET | |
| 16. | ZS13C16040 | [4] | SCREW | KOBM16x2.0x40mm |
| 17. | ZS18C12025 | [20] | SCREW,Hex, M12 x 25mm | KOBM12x1.75x25mm |
| 18. | 2420T4361 | [2] | PLUG | KOB1-1/4" PF x 40mm Long, (Incls. O-Ring ZD12P03800) |
| 20. | ZS18C12020 | [5] | SCREW,Hex, M12 x 20mm | KOBM12x1.75x20mm |
| 21. | ZS23C06010 | [3] | SCREW,Hex Socket Head, M6 x 10mm | KOBM06x1.0x10mm |
| 22. | ZW22X16000 | [4] | WASHER, LOCK | KOBID 16 x OD 28.0 x Th 4.0mm |
| 23. | ZW26X12000 | [25] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 25. | ZW22K06000 | [3] | LOCK WASHER | KOBID 06 x OD 10 x Th 1.5mm |
| 26. | ZW13H16000 | [4] | WASHER | KOBID 17 x OD 32 x Th 4.5mm |
| 27. | ZW16X12000 | [5] | WASHER | KOBID 12 x OD 24 x Th 2.3mm |
| 28. | ZF33F35020 | [1] | ELBOW | KOB |
| 31. | ZE72X12000 | [1] | PLUG | KOB(3/4" PF) (Incls. O-Ring ZD12P02400) |
| 33. | ZF93N35000 | [1] | NUT | KOB |
| 34. | ZF93S35000 | [1] | FERRULE | KOB |
| 36. | ZC45X06007 | [1] | CLIP | |
| 37. | ZS18C06016 | [1] | SCREW,Hex, M6 x 16mm | KOBM06x1.0x16mm |
| 38. | ZW26X06000 | [1] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm |
| 40. | 2444Z3231 | [1] | TEE YS0201, LS0201 to YS0263, LS0242 | TEE YS0201, LS0201 to YS0263, LS0242 |
| . . | 2444Z3485 | [1] | HYD CONNECTOR | KOBYS0264, Start Serial: LS0243 |
| . . | 24046Z18 | [1] | ELEMENT | KOBELEMENT KIT, CONSISTS OF ITEM 749 Superseded by part number: YN50V00004F2 |
