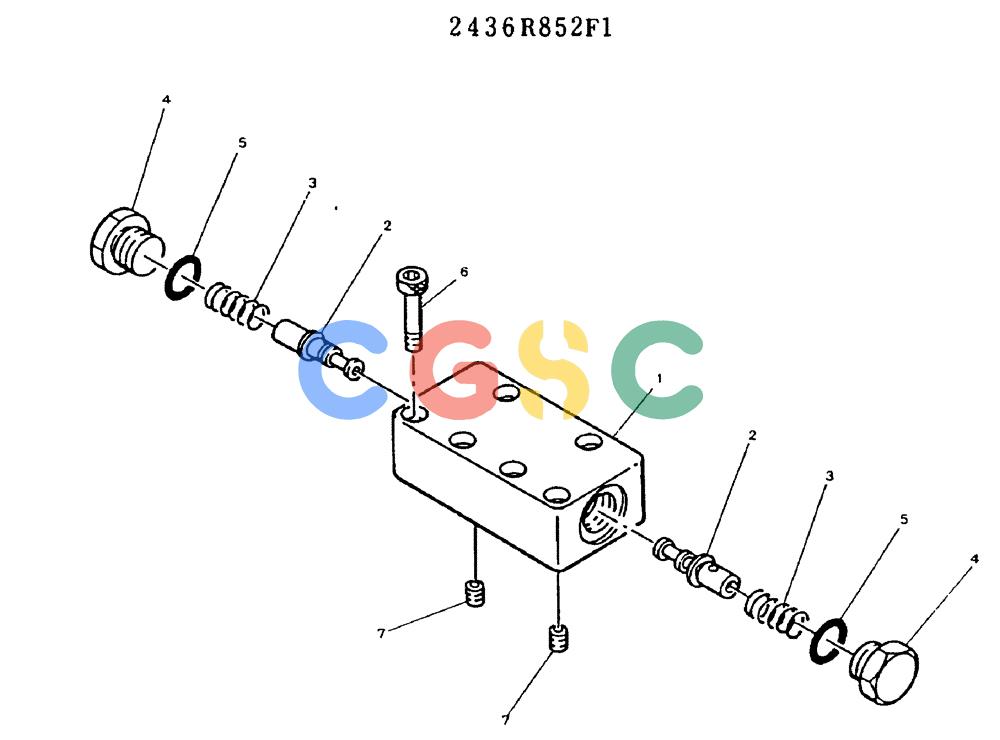

神钢零件查询(MD450BLC) - EXCAVATOR BTW TS0201 - TS0394 (1/80-12/06) (11-011) - VALVE ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
333 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2436R852F1 | [1] | VALVE | KOBCONSISTS OF THE FOLLOWING PARTS |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONBODY |
| 2. | NSS | [2] | NOT SOLD SEPARAT | CONVALVE |
| 3. | NSS | [2] | NOT SOLD SEPARAT | CONSPRING |
| 4. | NSS | [2] | NOT SOLD SEPARAT | CONPLUG |
| 5. | ZD12P02400 | [2] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
| 6. | ZS23C08045 | [6] | SCREW,Hex Socket Head, M8 x 45mm | KOBM08x1.25x45mm |
| 7. | NSS | [2] | NOT SOLD SEPARAT | CONORIFICE |
