神钢零件查询(MD450BLC) - EXCAVATOR BTW TS0201 - TS0394 (1/80-12/06) (11-010) - VALVE ASSY, MAIN RELIEF Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
882 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|

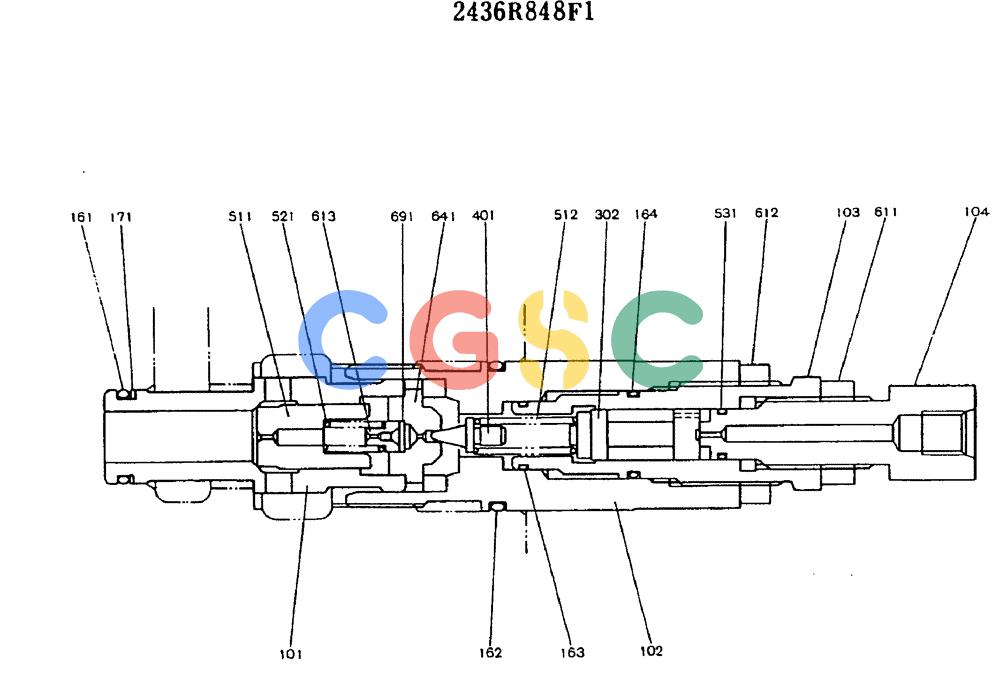

| . . | 2436R848F1 | [1] | VALVE PRESSURE RELIE | KOBCONSISTS OF THE FOLLOWING PARTS |
| 101. | NSS | [1] | NOT SOLD SEPARAT | CONBODY |
| 102. | NSS | [1] | NOT SOLD SEPARAT | CONPLUG |
| 103. | NSS | [1] | NOT SOLD SEPARAT | CONPLUG, ADJUST |
| 104. | 2436U1281S104 | [1] | PLUG, ADAPTER | |
| 161. | ZD12P01800 | [1] | O-RING | KOBID 17.8mm x OD 20.2mm |
| 162. | ZD12G03000 | [1] | O-RING,29.40mm ID x 35.60mm OD x 3.10mm | KOBID 29.4 ± 0.29 x OD 35mm |
| 163. | ZD12P01200 | [1] | O-RING | KOBID 11.80 ± 0.19 x OD 16mm |
| 164. | ZD12P01600 | [1] | O-RING | KOBID 15.80 ± 0.20 x OD 20mm |
| 171. | ZD85P01800 | [1] | RING | KOBBack-Up -- ID 18 x OD 22 x Th 1.25mm |
| 302. | NSS | [1] | NOT SOLD SEPARAT | CONPISTON |
| 401. | NSS | [1] | NOT SOLD SEPARAT | CONPOPPET |
| 511. | NSS | [1] | NOT SOLD SEPARAT | CONPLUNGER |
| 512. | 2436R847S512 | [1] | SPRING | KOB |
| 521. | 2436R682S211 | [1] | SPRING | KOB |
| 531. | ZD12P00900 | [1] | O-RING | KOBID 08.80 ± 0.17 x OD 12mm |
| 611. | 2436U1306S611 | [1] | NUT, LOCK | |
| 612. | 2436U1281S612 | [1] | LOCK NUT | KOBNUT, LOCK |
| 613. | NSS | [1] | NOT SOLD SEPARAT | CONSEAT, SPRING |
| 641. | NSS | [1] | NOT SOLD SEPARAT | CONSEAT |
| 691. | NSS | [1] | NOT SOLD SEPARAT | CONFILTER |
