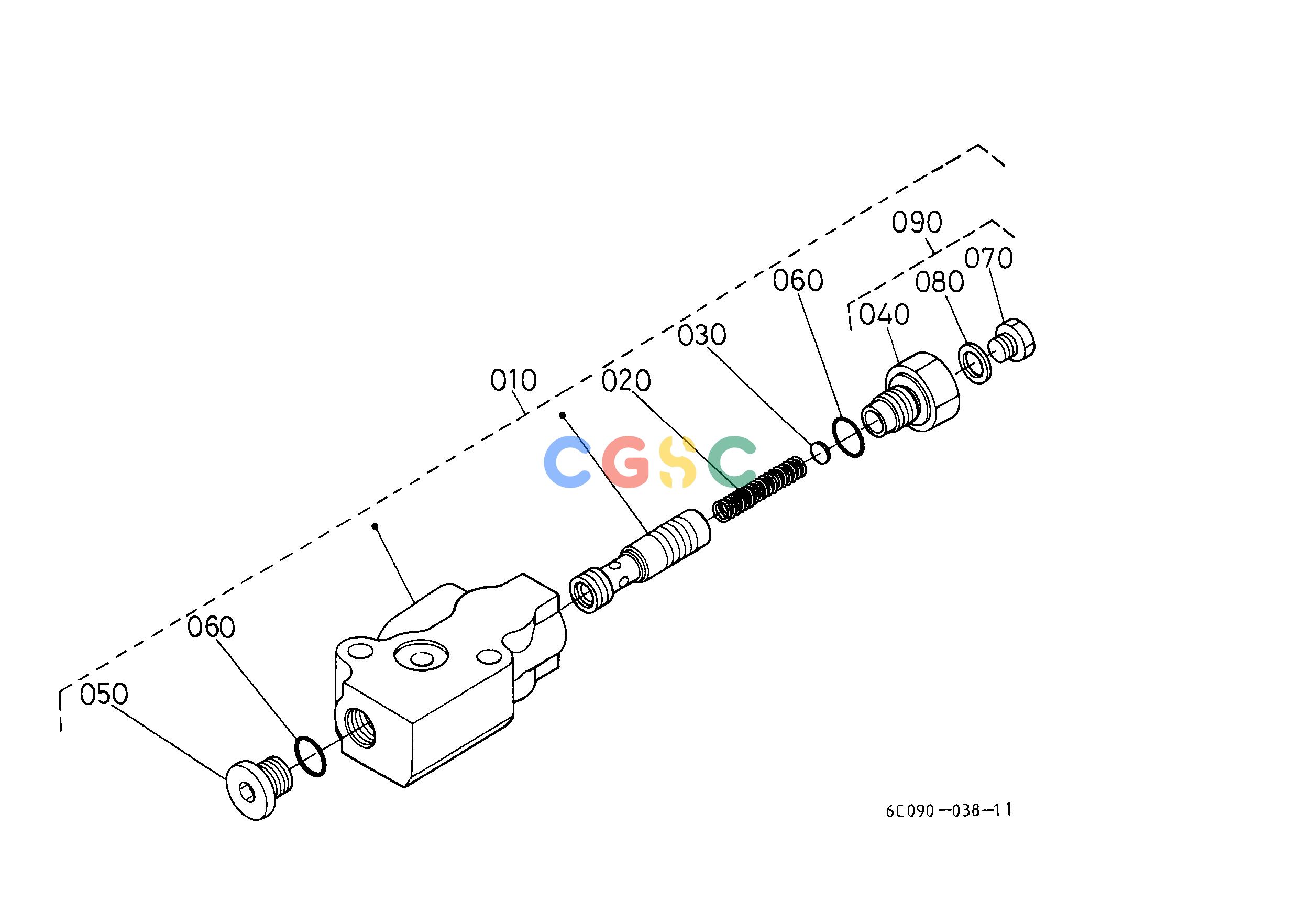

久保田零件查询T08800 FLOW DIVIDING VALVE [COMPONENT PARTS] HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
140 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C09036090
|
[1] |
ASSY VALVE FOW DIV.
|
0.0000(lbs); 0.000
|
| 010. |
6C09036094
|
[1] |
ASSY VALVE FOW DIV.
|
2.2220(lbs); 1.010
|
| 020. |
6C04036140
|
[1] |
SPRING
|
0.0110(lbs); 0.005
|
| 030. |
6C04036150
|
[1] |
SHIM
|
0.0022(lbs); 0.001
|
| 040. |
6C04036160
|
[1] |
PLUG
|
0.0770(lbs); 0.035
|
| 040. |
6C09036160
|
[1] |
PLUG
|
0.1100(lbs); 0.050
|
| 050. |
6C04036170
|
[1] |
PLUG
|
0.0484(lbs); 0.022
|
| 060. |
0481000140
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 070. |
6C09036180
|
[1] |
PLUG
|
0.0176(lbs); 0.008
|
| 080. |
6C09036190
|
[1] |
GASKET
|
0.0022(lbs); 0.001
|
| 090. |
6C09036120
|
[1] |
PLUG ASSY
|
0.1320(lbs); 0.060
|
