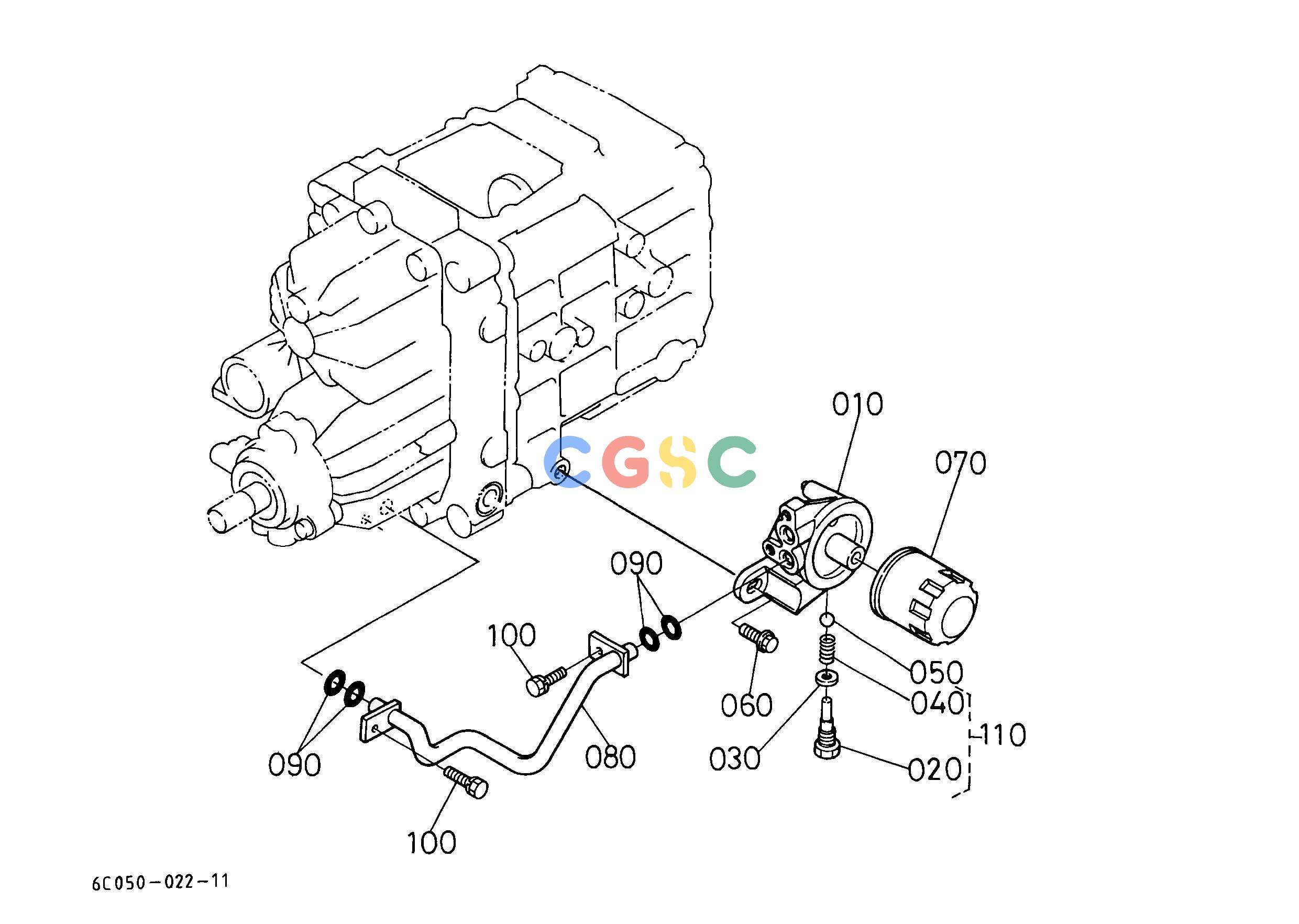

久保田零件查询T08900 HYDRAULIC OIL LINE (HST) HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
840 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C05039332
|
[1] |
BRACKET FILTER
|
0.4114(lbs); 0.187
|
| 020. |
6C05039382
|
[1] |
BOLT
|
0.0660(lbs); 0.030
|
| 030. |
0471701200
|
[1] |
WASHER WITH RUBBER
|
0.0044(lbs); 0.002
|
| 040. |
1685136950
|
[1] |
SPRING
|
0.0440(lbs); 0.020
|
| 050. |
0771501605
|
[1] |
BALL
|
0.0066(lbs); 0.003
|
| 060. |
0112551030
|
[1] |
BOLT
|
0.0660(lbs); 0.030
|
| 070. |
6602136060
|
[1] |
CARTRIDGE OIL FILTER
|
0.8580(lbs); 0.390
|
| 070. |
HH66036060
|
[1] |
CARTRIDGE OIL FILTER
|
0.8580(lbs); 0.390
|
| 080. |
6C05039343
|
[1] |
PIPE HST
|
0.1870(lbs); 0.085
|
| 090. |
0481100120
|
[4] |
O RING
|
0.0022(lbs); 0.001
|
| 100. |
0112360816
|
[2] |
BOLT
|
0.0220(lbs); 0.010
|
| 110. |
6C05096990
|
[1] |
KIT BOLT-SPRING
|
0.0748(lbs); 0.034
|
