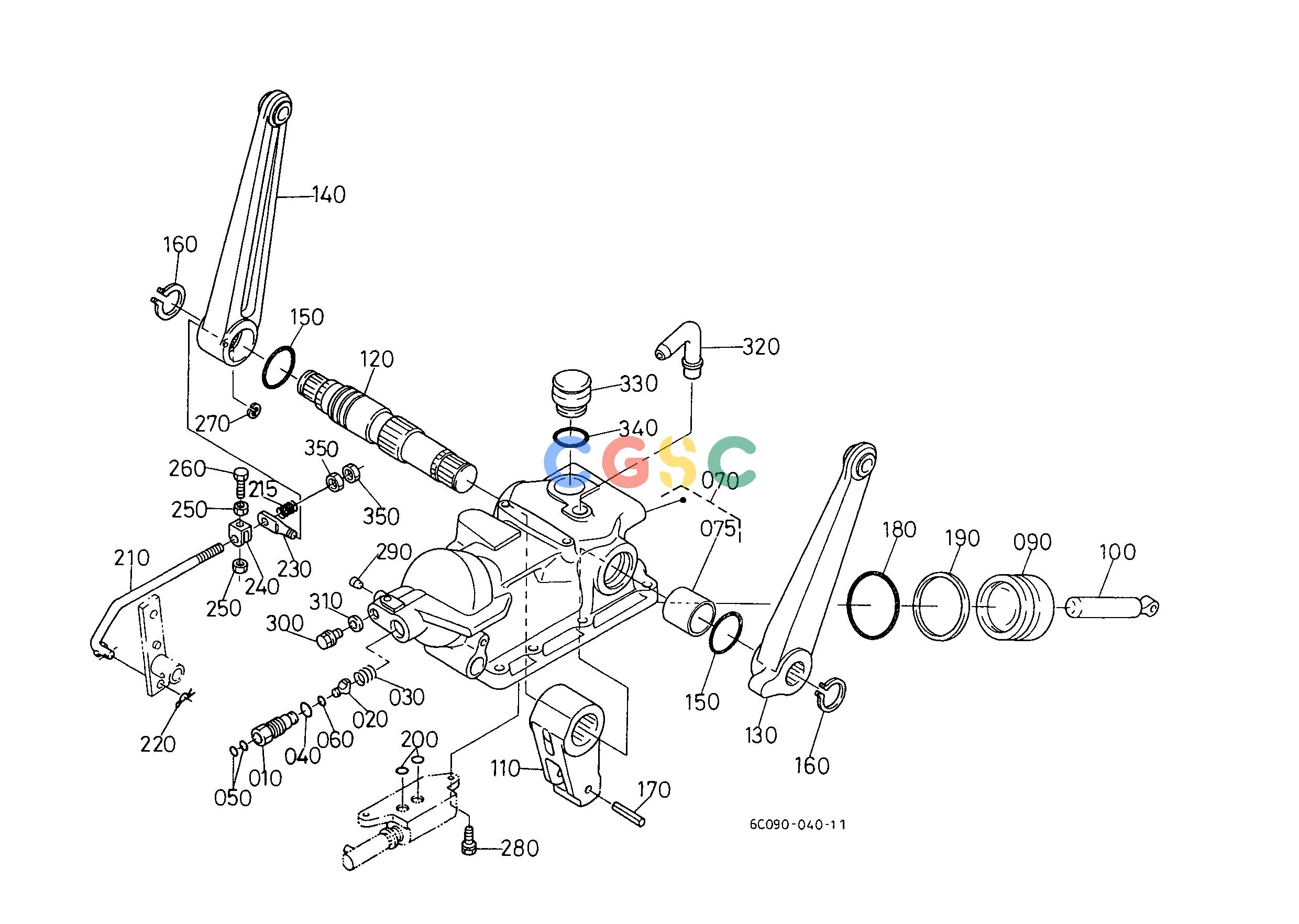

久保田零件查询T09100 HYDRAULIC CYLINDER CASE HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
201 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C04037210
|
[1] |
BODY
|
0.1694(lbs); 0.077
|
| 020. |
6C04037250
|
[1] |
POPPET
|
0.0132(lbs); 0.006
|
| 030. |
6C04037430
|
[1] |
SPRING
|
0.0044(lbs); 0.002
|
| 040. |
0481100180
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 050. |
0481000080
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 060. |
0481106120
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 070. |
6C09036030
|
[1] |
ASSY CYLINDER HYD
|
27.5000(lbs); 12.500
|
| 070. |
6C09036033
|
[1] |
ASSY CASE CYLINDER
|
25.0800(lbs); 11.400
|
| 075. |
6C04036490
|
[1] |
BUSH
|
0.1100(lbs); 0.050
|
| 090. |
6C04036410
|
[1] |
PISTON HYD.
|
1.7160(lbs); 0.780
|
| 100. |
6C09036430
|
[1] |
ROD HYD.PISTON
|
0.8360(lbs); 0.380
|
| 110. |
6C04036450
|
[1] |
ARM HYDRAULIC
|
2.1780(lbs); 0.990
|
| 120. |
6C09036470
|
[1] |
SHAFT HYD.ARM
|
3.6740(lbs); 1.670
|
| 130. |
6C04036510
|
[1] |
ARM LIFT LH
|
4.4000(lbs); 2.000
|
| 140. |
6C04036524
|
[1] |
ARM LIFT RH
|
4.4000(lbs); 2.000
|
| 150. |
6C04036550
|
[2] |
O RING
|
0.0066(lbs); 0.003
|
| 160. |
0461200320
|
[2] |
CIRCLIP EXTERNAL
|
0.0088(lbs); 0.004
|
| 170. |
0541100640
|
[1] |
PIN SPRING
|
0.0132(lbs); 0.006
|
| 180. |
0481100600
|
[1] |
O RING
|
0.0132(lbs); 0.006
|
| 190. |
6711136720
|
[1] |
RING BACK UP
|
0.0110(lbs); 0.005
|
| 200. |
0481100080
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 200. |
0481000100
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 210. |
6C09036230
|
[1] |
ROD FEEDBACK
|
0.1980(lbs); 0.090
|
| 210. |
6C09036232
|
[1] |
ROD FEEDBACK
|
0.1760(lbs); 0.080
|
| 215. |
6800163250
|
[1] |
SPRING
|
0.0110(lbs); 0.005
|
| 220. |
0552550800
|
[1] |
PIN SNAP
|
0.0022(lbs); 0.001
|
| 230. |
6C09036220
|
[1] |
PIN FEEDBACK
|
0.0660(lbs); 0.030
|
| 240. |
6661136320
|
[1] |
INTERLOCKER
|
0.0484(lbs); 0.022
|
| 250. |
0211250080
|
[2] |
NUT
|
0.0066(lbs); 0.003
|
| 260. |
0115350822
|
[1] |
BOLT
|
0.0242(lbs); 0.011
|
| 270. |
0461350080
|
[1] |
CIRCLIP EXTERNAL
|
0.0022(lbs); 0.001
|
| 280. |
0112350822
|
[2] |
BOLT
|
0.0264(lbs); 0.012
|
| 290. |
3270136150
|
[1] |
PLUG
|
0.0110(lbs); 0.005
|
| 300. |
3715036730
|
[1] |
PLUG
|
0.0660(lbs); 0.030
|
| 310. |
3715036720
|
[1] |
GASKET
|
0.0044(lbs); 0.002
|
| 320. |
6C04036070
|
[1] |
PIPE BREATHER
|
0.0396(lbs); 0.018
|
| 330. |
6C04036110
|
[1] |
PLUG OIL FILLER
|
0.0440(lbs); 0.020
|
| 340. |
0481100240
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 350. |
6C09036460
|
[2] |
NUT
|
0.0132(lbs); 0.006
|
