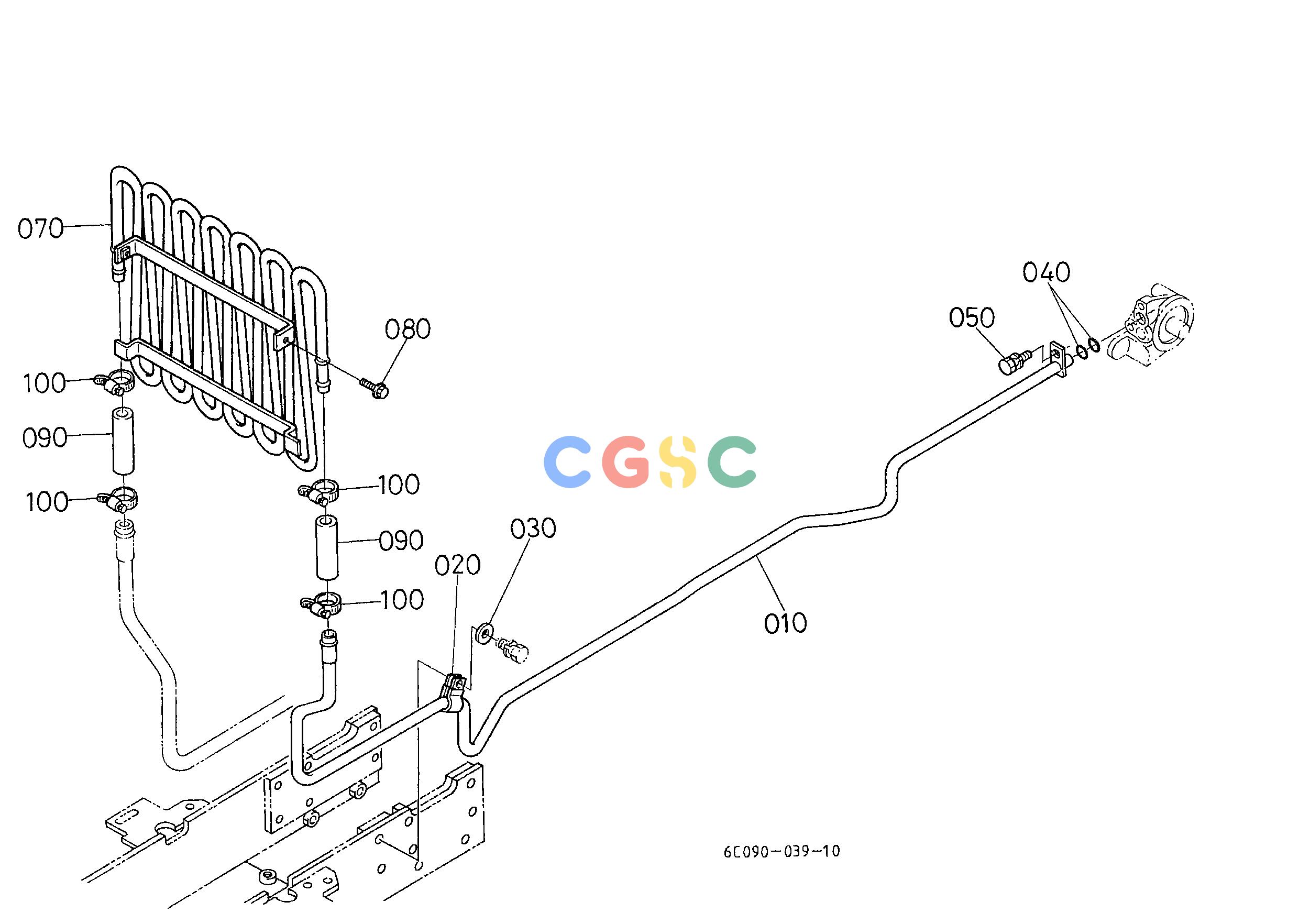

久保田零件查询T09000 OIL COOLER HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
870 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C09039320
|
[1] |
PIPE RETURN
|
1.2100(lbs); 0.550
|
| 020. |
6C05039410
|
[1] |
CLAMP PIPE
|
0.0286(lbs); 0.013
|
| 030. |
0401360100
|
[1] |
WASHER PLAIN
|
0.0066(lbs); 0.003
|
| 040. |
0481100120
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 050. |
0112360816
|
[1] |
BOLT
|
0.0220(lbs); 0.010
|
| 070. |
6C09058710
|
[1] |
PIPE COOLER
|
3.5200(lbs); 1.600
|
| 080. |
0112560816
|
[2] |
BOLT
|
0.0220(lbs); 0.010
|
| 090. |
6C05058720
|
[2] |
HOSE
|
0.0506(lbs); 0.023
|
| 100. |
6C05058750
|
[4] |
CLAMP HOSE
|
0.0440(lbs); 0.020
|
