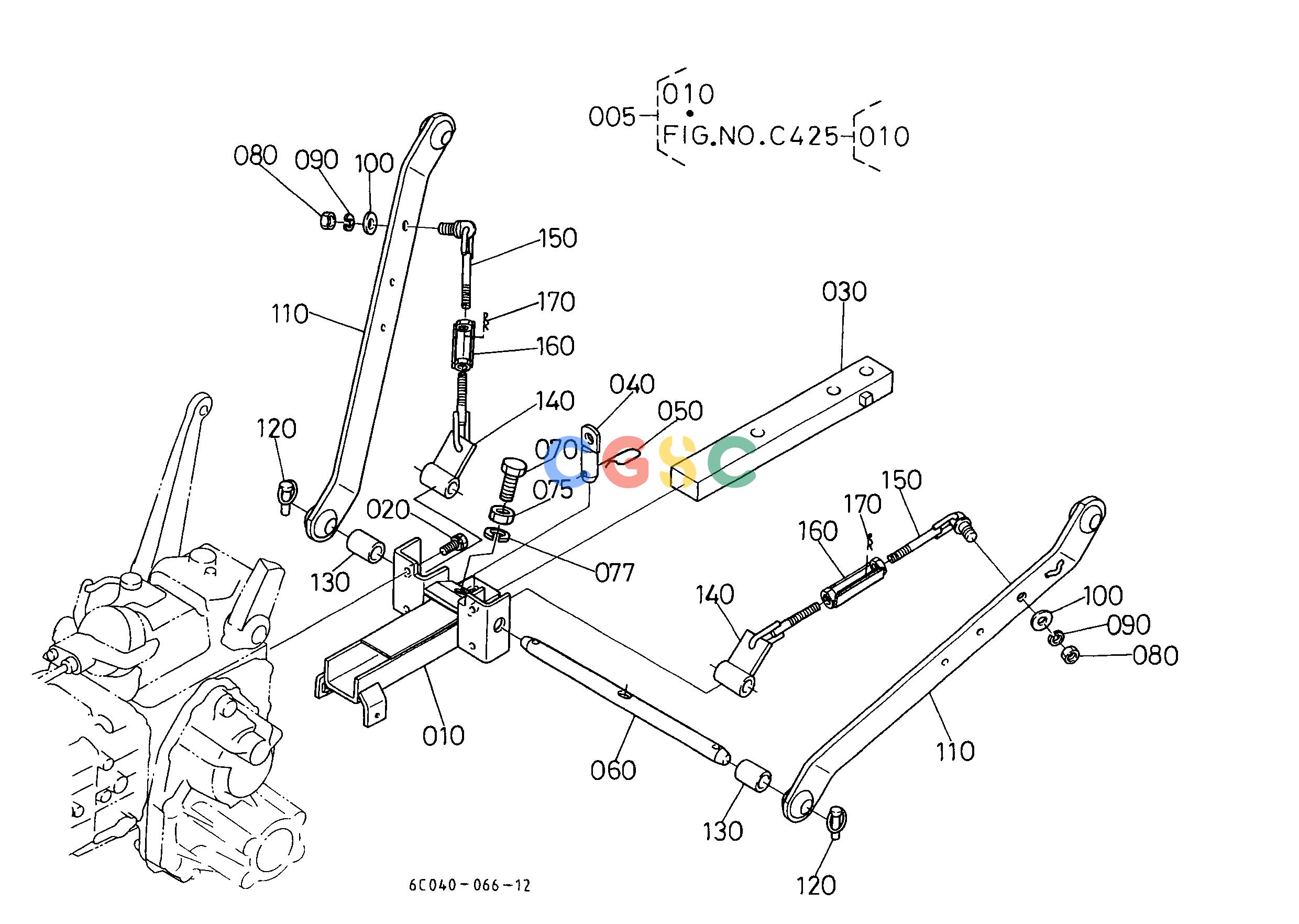

久保田零件查询T09600 LOWER LINK HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
434 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 005. |
6C04096980
|
[1] |
SET CASE DIFF.GEAR
|
24.9480(lbs); 11.340
|
| 010. |
6C04065604
|
[1] |
COMP HITCH
|
7.2600(lbs); 3.300
|
| 020. |
0112351230
|
[4] |
BOLT
|
0.0880(lbs); 0.040
|
| 030. |
6C04067110
|
[1] |
DRAWBAR
|
10.0320(lbs); 4.560
|
| 040. |
6C04065610
|
[1] |
PIN HITCH
|
0.3960(lbs); 0.180
|
| 050. |
3115029730
|
[1] |
PIN SPRING
|
0.0968(lbs); 0.044
|
| 060. |
6C04066010
|
[1] |
PIN LOWER LINK
|
2.5080(lbs); 1.140
|
| 070. |
6C04065120
|
[1] |
BOLT
|
0.0418(lbs); 0.019
|
| 075. |
0211850100
|
[1] |
NUT
|
0.0110(lbs); 0.005
|
| 077. |
0451260100
|
[1] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 080. |
0217450160
|
[2] |
NUT
|
0.0484(lbs); 0.022
|
| 090. |
0451260160
|
[2] |
WASHER SPRING
|
0.0220(lbs); 0.010
|
| 100. |
0401550160
|
[2] |
WASHER PLAIN
|
0.1232(lbs); 0.056
|
| 110. |
6C04065210
|
[2] |
COMP.LINK LOWER
|
11.6160(lbs); 5.280
|
| 120. |
3415037640
|
[4] |
PIN SET
|
0.1320(lbs); 0.060
|
| 130. |
6620465350
|
[2] |
SPACER
|
0.2640(lbs); 0.120
|
| 140. |
6C04065290
|
[2] |
BRACKET CHECK CHAIN
|
1.1440(lbs); 0.520
|
| 150. |
6C04065320
|
[2] |
BOLT TURNBUCKLE
|
0.7480(lbs); 0.340
|
| 160. |
6C04065390
|
[2] |
TURNBUCKLE
|
0.4400(lbs); 0.200
|
| 170. |
0551561200
|
[2] |
PIN SNAP
|
0.0110(lbs); 0.005
|
