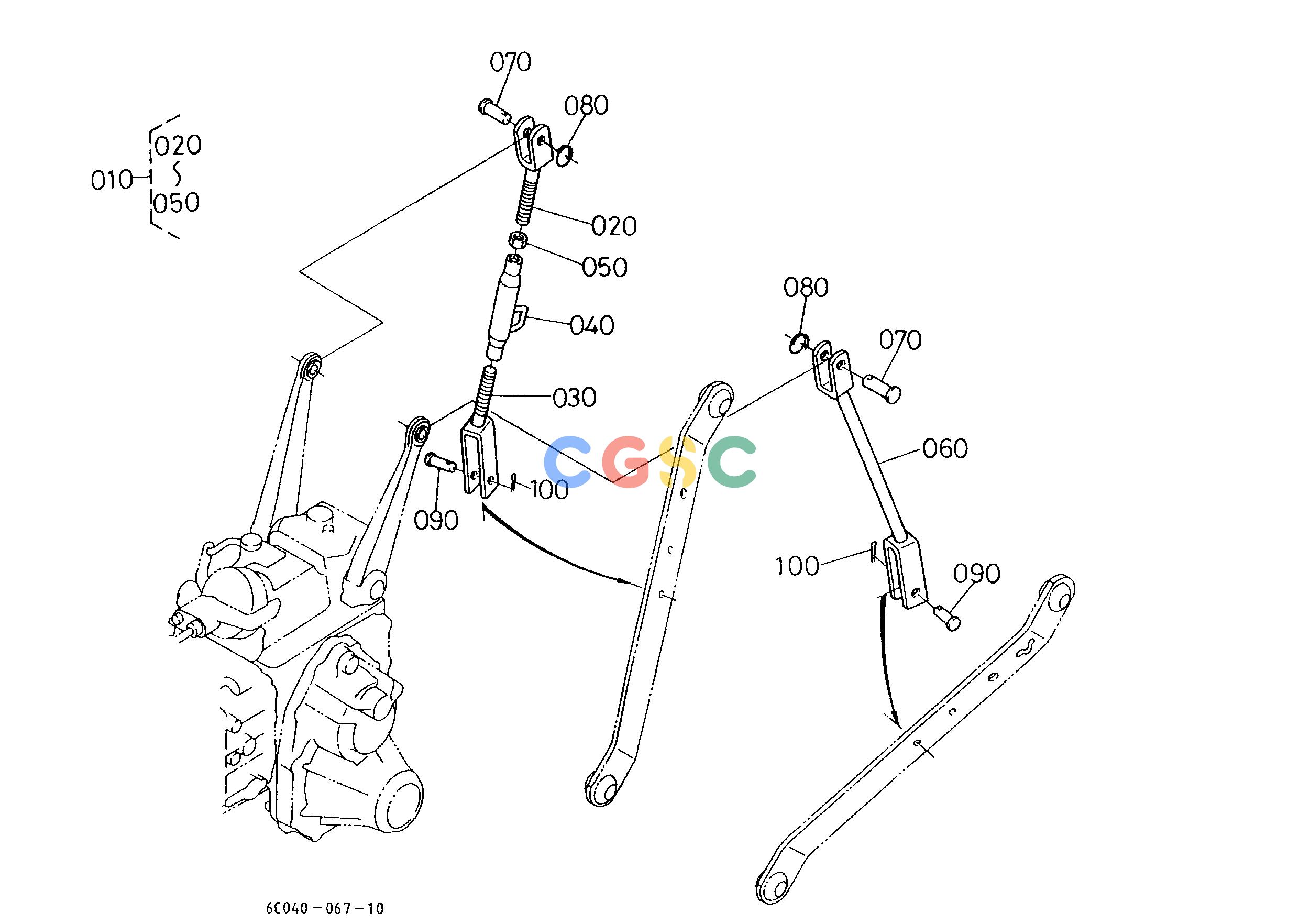

久保田零件查询T09700 LIFT ROD HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
740 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C04065200
|
[1] |
ASSY ROD LIFT RH
|
0.0000(lbs); 0.000
|
| 020. |
6C04065230
|
[1] |
ROD LIFT RH
|
0.7920(lbs); 0.360
|
| 030. |
6C04065240
|
[1] |
ROD LIFT RH
|
1.1000(lbs); 0.500
|
| 040. |
6C04065250
|
[1] |
ROD LIFT MIDDLE
|
0.0000(lbs); 0.000
|
| 050. |
0217250180
|
[1] |
NUT
|
0.0462(lbs); 0.021
|
| 060. |
6C04065270
|
[1] |
ROD LIFT LH
|
2.3540(lbs); 1.070
|
| 070. |
0512251650
|
[2] |
PIN JOINT
|
0.1980(lbs); 0.090
|
| 080. |
7655042190
|
[2] |
RING SNAP
|
0.0088(lbs); 0.004
|
| 080. |
6715634340
|
[2] |
RING SNAP
|
0.0220(lbs); 0.010
|
| 090. |
0512251240
|
[2] |
PIN JOINT
|
0.0858(lbs); 0.039
|
| 100. |
0551150425
|
[2] |
PIN SPLIT
|
0.0066(lbs); 0.003
|
