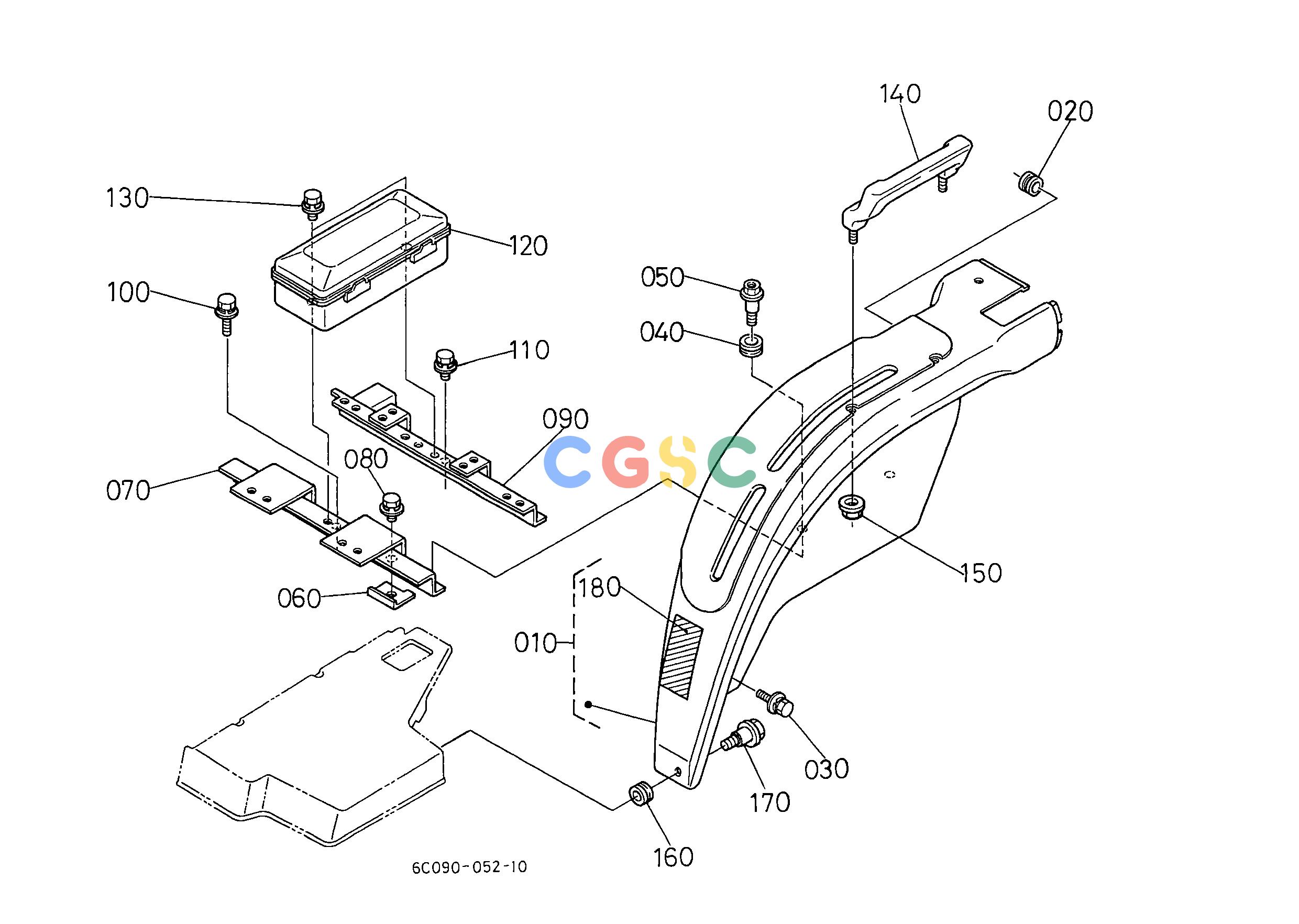

久保田零件查询T10100 FENDER LH HOOD(BONNET)/CHASSISEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
583 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C09099130
|
[1] |
KIT FENDER LH (A)
|
15.4000(lbs); 7.000
|
| 020. |
3215029180
|
[1] |
CAP RUBBER
|
0.0044(lbs); 0.002
|
| 030. |
0112560816
|
[2] |
BOLT
|
0.0220(lbs); 0.010
|
| 040. |
6C04051380
|
[2] |
CUSHION
|
0.0000(lbs); 0.000
|
| 040. |
6A10051380
|
[2] |
CUSHION
|
0.0066(lbs); 0.003
|
| 050. |
6C04051342
|
[2] |
BOLT
|
0.0374(lbs); 0.017
|
| 060. |
6C09052882
|
[1] |
PLATE
|
0.1100(lbs); 0.050
|
| 070. |
6C04052734
|
[1] |
STAY FENDER
|
2.3540(lbs); 1.070
|
| 080. |
0112560816
|
[1] |
BOLT
|
0.0220(lbs); 0.010
|
| 090. |
6C04052746
|
[1] |
STAY FENDER
|
1.8260(lbs); 0.830
|
| 100. |
0112560816
|
[1] |
BOLT
|
0.0220(lbs); 0.010
|
| 110. |
0112551020
|
[2] |
BOLT
|
0.0110(lbs); 0.005
|
| 120. |
6C04052790
|
[1] |
CASE TOOLS
|
0.5060(lbs); 0.230
|
| 130. |
0102550616
|
[2] |
BOLT
|
0.0110(lbs); 0.005
|
| 140. |
6C04052170
|
[1] |
HANDRAIL
|
0.5280(lbs); 0.240
|
| 150. |
0213150100
|
[2] |
NUT
|
0.0220(lbs); 0.010
|
| 160. |
6C04051380
|
[1] |
CUSHION
|
0.0000(lbs); 0.000
|
| 160. |
6A10051380
|
[1] |
CUSHION
|
0.0066(lbs); 0.003
|
| 170. |
6C04051342
|
[1] |
BOLT
|
0.0374(lbs); 0.017
|
| 180. |
6C04047420
|
[1] |
LABEL SAFETY
|
0.0022(lbs); 0.001
|
