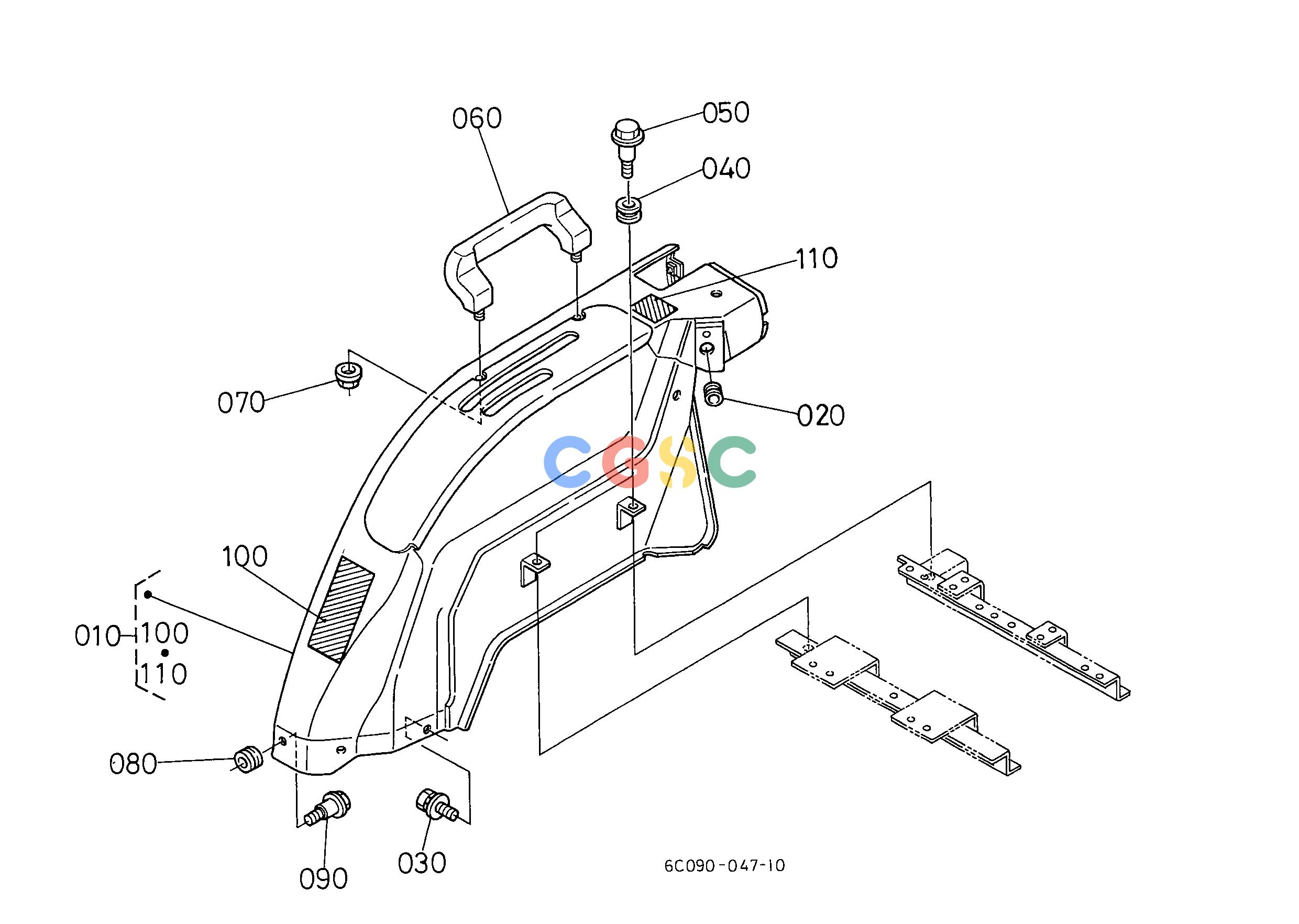

久保田零件查询T10200 FENDER RH HOOD(BONNET)/CHASSISEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
837 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C09099140
|
[1] |
KIT FENDER RH(A)
|
14.3000(lbs); 6.500
|
| 020. |
3215029180
|
[1] |
CAP RUBBER
|
0.0044(lbs); 0.002
|
| 030. |
0112560816
|
[2] |
BOLT
|
0.0220(lbs); 0.010
|
| 040. |
6C04051380
|
[2] |
CUSHION
|
0.0000(lbs); 0.000
|
| 040. |
6A10051380
|
[2] |
CUSHION
|
0.0066(lbs); 0.003
|
| 050. |
6C04051342
|
[2] |
BOLT
|
0.0374(lbs); 0.017
|
| 060. |
6C04052170
|
[1] |
HANDRAIL
|
0.5280(lbs); 0.240
|
| 070. |
0213150100
|
[2] |
NUT
|
0.0220(lbs); 0.010
|
| 080. |
6C04051380
|
[1] |
CUSHION
|
0.0000(lbs); 0.000
|
| 080. |
6A10051380
|
[1] |
CUSHION
|
0.0066(lbs); 0.003
|
| 090. |
6C04051342
|
[1] |
BOLT
|
0.0374(lbs); 0.017
|
| 100. |
TA04049320
|
[1] |
LABEL ROPS WARNING
|
0.0022(lbs); 0.001
|
| 100. |
TA04049150
|
[1] |
LABEL ROPS WARNING
|
0.0066(lbs); 0.003
|
| 110. |
TA04049350
|
[1] |
LABEL DRAWBAR
|
0.0044(lbs); 0.002
|
| 110. |
TA04149350
|
[1] |
LABEL DRAWBAR
|
0.0066(lbs); 0.003
|
