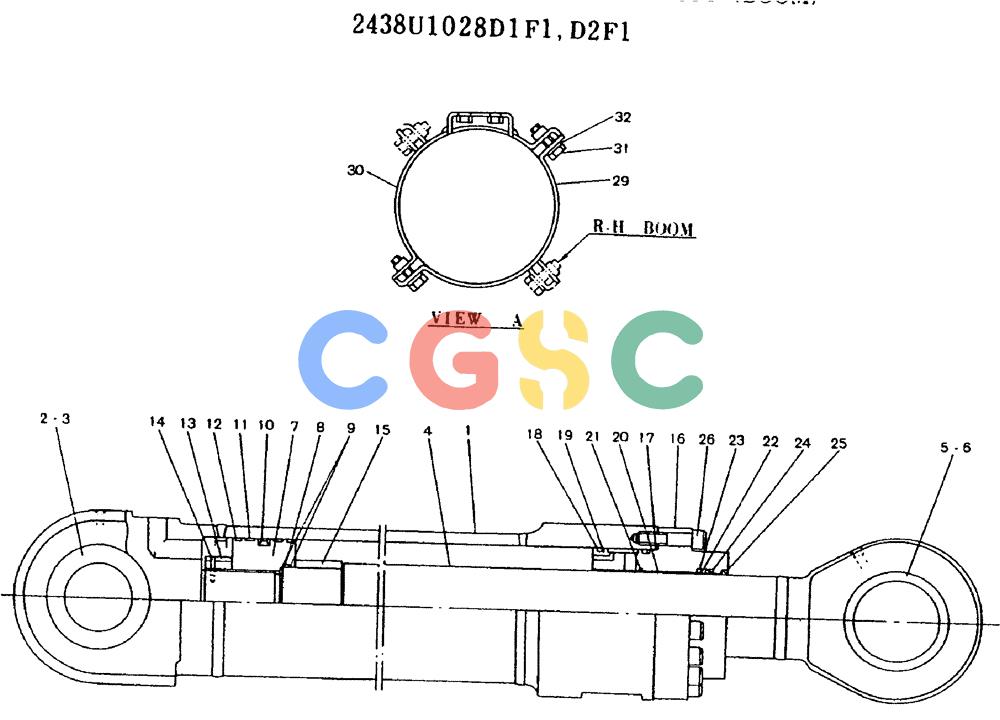

神钢零件查询(MD450BLC) - EXCAVATOR BTW TS0201 - TS0394 (1/80-12/06) (11-025) - CYLINDER ASSY (BOOM) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
136 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2438U1028D1F1 | [1] | CYLINDER (L-H.BOOM) | CYLINDER (L-H.BOOM) |
| . . | 2438U1028D2F1 | [1] | CYLINDER (R-H.BOOM), CONSISTS OF THE FOLLOWING PARTS | CYLINDER (R-H.BOOM), CONSISTS OF THE FOLLOWING PARTS |
| 1. | 2438U1028D1S1 | [1] | TUBE | KOB |
| 2. | 2438U662S4 | [1] | BEARING, SPHERICAL SHAFT | BEARING, SPHERICAL SHAFT |
| 3. | 2438U662S5 | [2] | SNAP RING | KOB |
| 4. | 2438U1028D1S4 | [1] | PISTON ROD | KOB |
| 5. | 2438U662S2 | [1] | BUSHING | KOB |
| 6. | 2438U662S3 | [2] | SEAL | KOB Superseded by part number: 2445R138D10 |
| 7. | 2438U1028D1S7 | [1] | PISTON | KOB |
| 8. | ZD12G09500 | [1] | O-RING,3.1mm Thk x 94.4mm ID, 90 Duro | KOBO-Ring -- ID 94.40 ± 0.81 x OD 100mm |
| 9. | ZD75G09500 | [2] | BACK-UP RING | KOB |
| 10. | 2438U984S10 | [1SET] | SEAL | KOB |
| 11. | 2438U1028D1S11 | [2] | WEAR RING | KOB |
| 12. | 2438U1028D1S12 | [2] | RING | KOB Superseded by part number: LS01V00001S041 |
| 13. | 2438U1028D1S13 | [1] | NUT | KOBPISTON |
| 14. | 2438U1028D1S14 | [1] | WEAR RING | KOB |
| 15. | 2438U1028D1S15 | [1] | RING | KOBCUSHION |
| 16. | 2438U1028D1S16 | [1] | COVER | KOB |
| 17. | 2438U720S16 | [1] | O-RING | KOB |
| 18. | ZD12G16000 | [2] | O-RING,159.30mm ID x 170.70mm OD x 5.70mm | KOB |
| 19. | 2445R216D22 | [2] | RING, BACK-UP | RING, BACK-UP |
| 20. | 2438U1357S10 | [1] | BUSHING | KOB |
| 21. | 2418U112D81 | [1] | CIRCLIP | KOB |
| 22. | R45P0050D12 | [1] | SEAL | KOBSTEP |
| 23. | R45P0051D28 | [1] | O-RING | O-RING |
| 24. | 2418U130D23 | [1] | KIT | KOBROD |
| 25. | 2438U510S29 | [1] | SEAL, DUST | SEAL, DUST |
| 26. | ZS23C16070 | [16] | SCREW,Hex Socket Head, M16 x 70mm | KOBM16x2.0x70mm |
| 29. | 2438U1028D1S29 | [1] | BRACKET | KOBBAND |
| 30. | 2438U1028D1S30 | [1] | BRACKET BAND | BRACKET BAND |
| 31. | ZS16C12040 | [2] | SCREW | KOBM12x1.75x40mm Superseded by part number: ZS18C12040, 77276427 |
| 32. | ZW26X12000 | [2] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| . . | 2438U1028D1R100 | [1] | REPAIR KIT | KOBCONSISTS OF ITEM 17~19, 22~25 |
| . . | 2438U1028D1R200 | [1] | REPAIR KIT | KOBCONSISTS OF ITEM 8~12 |
| . . | 2438U1028D1R300 | [1] | CHAIN CONSISTS OF ITEM 1~26 | CHAIN CONSISTS OF ITEM 1~26 |
