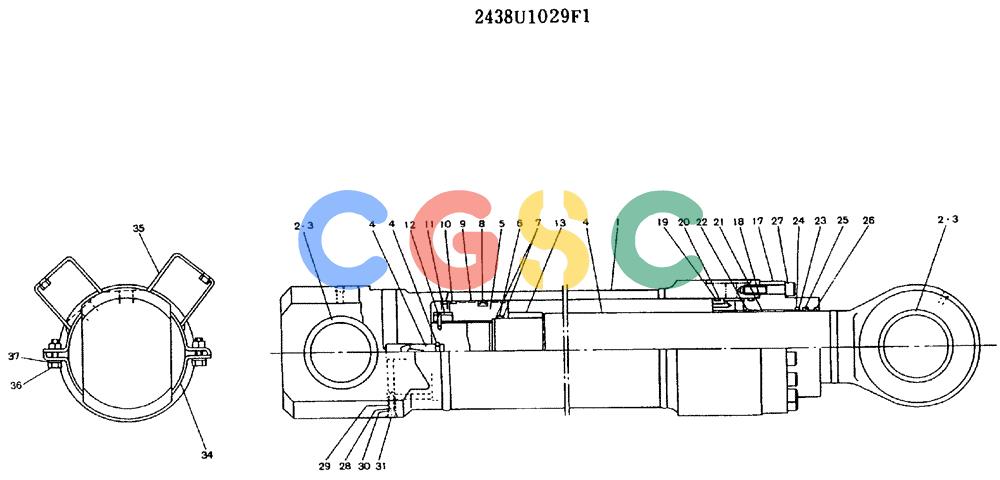

神钢零件查询(MD450BLC) - EXCAVATOR BTW TS0201 - TS0394 (1/80-12/06) (11-026) - CYLINDER ASSY (ARM) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
314 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2438U1029F1 | [1] | CYLINDER | KOB(ARM), CONSISTS OF THE FOLLOWING PARTS |
| 1. | 2438U1029S1 | [1] | BARREL | KOB |
| 2. | 2438U1343S2 | [2] | BUSHING | KOB |
| 3. | 2438U662S3 | [4] | SEAL | KOB Superseded by part number: 2445R138D10 |
| 4. | 2438U1029S4 | [1] | PISTON ROD | KOB |
| 5. | 2438U1029S5 | [1] | PISTON | KOB |
| 6. | ZD12G11500 | [1] | O-RING,114.40mm ID x 120.60mm OD x 3.10mm | KOBID 114.40 ± 0.94 x OD 120mm |
| 7. | ZD75G11500 | [2] | BACK-UP RING | KOB |
| 8. | 2438U985S8 | [1SET] | SEAL | KOB |
| 9. | 2438R255S5 | [3] | WEAR RING | KOB |
| 10. | 2438R255S6 | [2] | RING, WEAR | |
| 11. | 2438U1343S11 | [1] | NUT | KOB |
| 12. | 2438U664S12 | [1] | WEAR RING | KOBSTOP |
| 13. | 2438U1029S13 | [1] | RING | KOBCUSHION |
| 17. | 2438U1029S17 | [1] | COVER | KOB |
| 18. | 2438U1029S18 | [1] | O-RING | KOB |
| 19. | ZD12G17000 | [2] | O-RING,169.30mm ID x 180.70mm OD x 5.70mm | KOB |
| 20. | 2438U1029S20 | [2] | BACK-UP RING | KOB |
| 21. | 2438U402S13 | [1] | BUSHING | KOBBUSHING |
| 22. | 2438U333S19 | [1] | CLIP | KOB Superseded by part number: 2438U1260S13 |
| 23. | R45P0050D13 | [1] | SEAL | KOBSTEP |
| 24. | R45P0051D27 | [1] | O-RING | KOB |
| 25. | 2418U130D29 | [1] | PACKING | KOBROD |
| 26. | 2438U1343S28 | [1] | DUST CAP | KOB |
| 27. | ZS23C16070 | [16] | SCREW,Hex Socket Head, M16 x 70mm | KOBM16x2.0x70mm |
| 28. | 2438U921S29 | [1] | CHECK VALVE | KOBORIFICE |
| 29. | 2438U921S32 | [1] | SPRING | KOB |
| 30. | 2438U921S28 | [1] | SPACER | KOBSEAT, SPRING |
| 31. | ZE82T06000 | [1] | PLUG | KOBPipe, 3/8" PT |
| 34. | 2438U1029S34 | [1] | BRACKET | KOBBAND |
| 35. | 2438U1029S35 | [1] | BRACKET | KOBBAND |
| 36. | ZS16C12040 | [2] | SCREW | KOBM12x1.75x40mm Superseded by part number: ZS18C12040, 77276427 |
| 37. | ZW26X12000 | [2] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| . . | 2438U1029R100 | [1] | REPAIR KIT | KOBCONSISTS OF ITEM 18~20, 23~26 Superseded by part number: 2438U1029R100P |
| . . | 2438U1029R200 | [1] | REPAIR KIT | KOBREPAIR KIT CONSISTS OF ITEM 6~10 |
