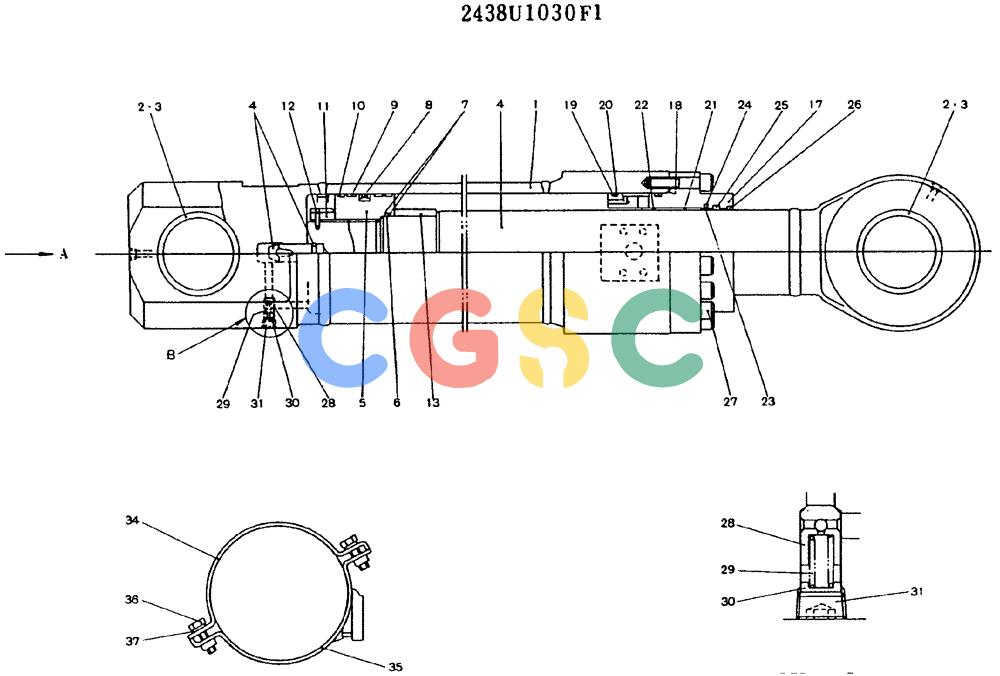

神钢零件查询(MD450BLC) - EXCAVATOR BTW TS0201 - TS0394 (1/80-12/06) (11-027) - CYLINDER ASSY (BUCKET) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
320 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2438U1030F1 | [1] | CYLINDER | KOB(BUCKET), CONSISTS OF THE FOLLOWING PARTS |
| 1. | 2438U1030S1 | [1] | TUBE, CYLINDER | TUBE, CYLINDER |
| 2. | 2438U664S2 | [2] | BUSHING | KOB Superseded by part number: 2438U324S36 |
| 3. | 2445R138D9 | [4] | SEAL,100mm ID x 120mm OD x 4mm Thk | KOBDust -- ID 100 x OD 120 x Th 4mm |
| 4. | 2438U1030S4 | [1] | PISTON ROD | KOB |
| 5. | 2438U1030S5 | [1] | PISTON | KOB |
| 6. | ZD12G10500 | [1] | O-RING,104.40mm ID x 110.60mm OD x 3.10mm | KOBID 14.80 ± 0.20 x OD 19mm |
| 7. | ZD75G10500 | [2] | BACK-UP RING | KOB |
| 8. | 2438U984S10 | [1] | SEAL | KOB |
| 9. | 2438U1028D1S11 | [2] | WEAR RING | KOB |
| 10. | 2438U1028D1S12 | [2] | RING | KOB Superseded by part number: LS01V00001S041 |
| 11. | 2438U1030S11 | [1] | NUT | KOBPISTON |
| 12. | 2438U1030S12 | [1] | RING | KOB |
| 13. | 2438U1030S13 | [1] | SEAT CUSHION | KOBCUSHION |
| 17. | 2438U1030S17 | [1] | COVER | KOB |
| 18. | 2438U720S16 | [1] | O-RING | KOB |
| 19. | ZD12G16000 | [2] | O-RING,159.30mm ID x 170.70mm OD x 5.70mm | KOB |
| 20. | 2445R216D22 | [2] | RING, BACK-UP | RING, BACK-UP |
| 21. | 2438U583S11 | [1] | BUSHING | KOB Superseded by part number: 2405U104D120070 |
| 22. | 2438U323S22 | [1] | CLIP | KOB |
| 23. | R45P0050D4 | [1] | SEAL | KOBSTEP |
| 24. | R45P0051D7 | [1] | O-RING | KOB |
| 25. | 2438U352S10 | [1] | KIT | KOBROD Superseded by part number: 2418U130D27 |
| 26. | 2438U324S42 | [1] | SEAL | KOB |
| 27. | ZS23C16070 | [16] | SCREW,Hex Socket Head, M16 x 70mm | KOBM16x2.0x70mm |
| 28. | 2438U1030S51 | [1] | VALVE | KOBVALVE, CHECK |
| 29. | 2438U1030S29 | [1] | SPRING | KOB |
| 30. | 2438U921S28 | [1] | SPACER | KOBSEAT, SPRING |
| 31. | ZE82T06000 | [1] | PLUG | KOBPipe, 3/8" PT |
| 34. | 2438U1028D1S29 | [2] | BRACKET | KOB |
| 35. | 2438U1030S35 | [2] | BRACKET | KOB |
| 36. | ZS16C12040 | [4] | SCREW | KOBM12x1.75x40mm Superseded by part number: ZS18C12040, 77276427 |
| 37. | ZW26X12000 | [4] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| . . | 2438U1030R100 | [1] | REPAIR KIT | KOBCONSISTS OF ITEM 18~20, 23~26 |
| . . | 2438U1030R200 | [1] | REPAIR KIT | KOBCONSISTS OF ITEM 6~10 Superseded by part number: 2438U1030R200P |
