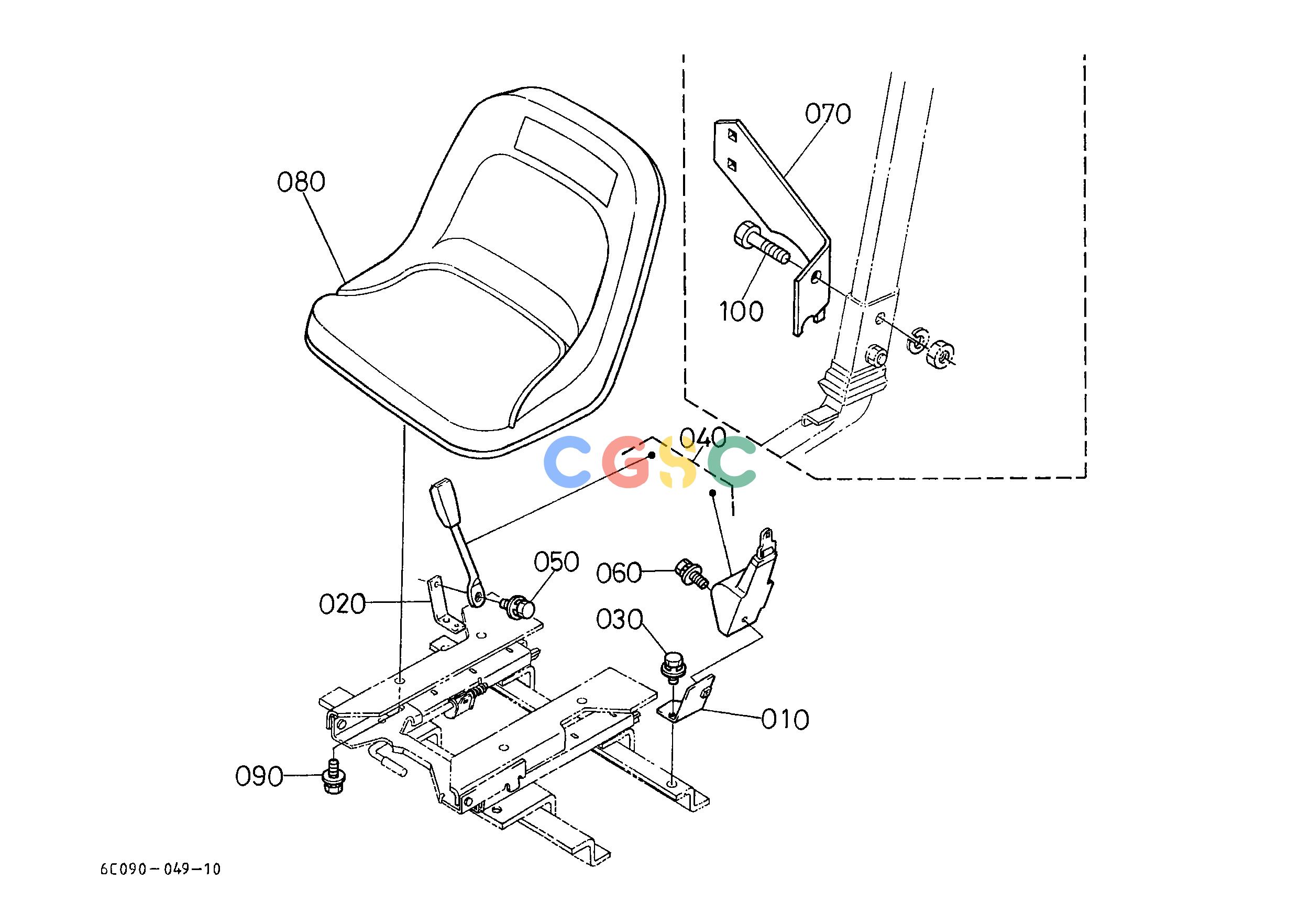

久保田零件查询T10400 SEAT HOOD(BONNET)/CHASSISEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
252 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C04052760
|
[1] |
STAY SEAT BELT LH
|
0.6600(lbs); 0.300
|
| 020. |
6C04052770
|
[1] |
STAY SEAT BELT RH
|
0.2200(lbs); 0.100
|
| 030. |
0112560816
|
[2] |
BOLT
|
0.0220(lbs); 0.010
|
| 040. |
6C04072252
|
[1] |
ASSY BELT SEAT
|
1.9800(lbs); 0.900
|
| 050. |
0113561020
|
[1] |
BOLT
|
0.0330(lbs); 0.015
|
| 060. |
0113561025
|
[1] |
BOLT
|
0.0594(lbs); 0.027
|
| 070. |
6C09054950
|
[1] |
BRACKET SMV
|
1.4300(lbs); 0.650
|
| 080. |
K112256110
|
[1] |
ASSY SEAT
|
14.7400(lbs); 6.700
|
| 090. |
0Y17150508
|
[4] |
HEX.BOLT
|
0.0330(lbs); 0.015
|
| 100. |
7559904655
|
[1] |
BOLT
|
0.2200(lbs); 0.100
|
