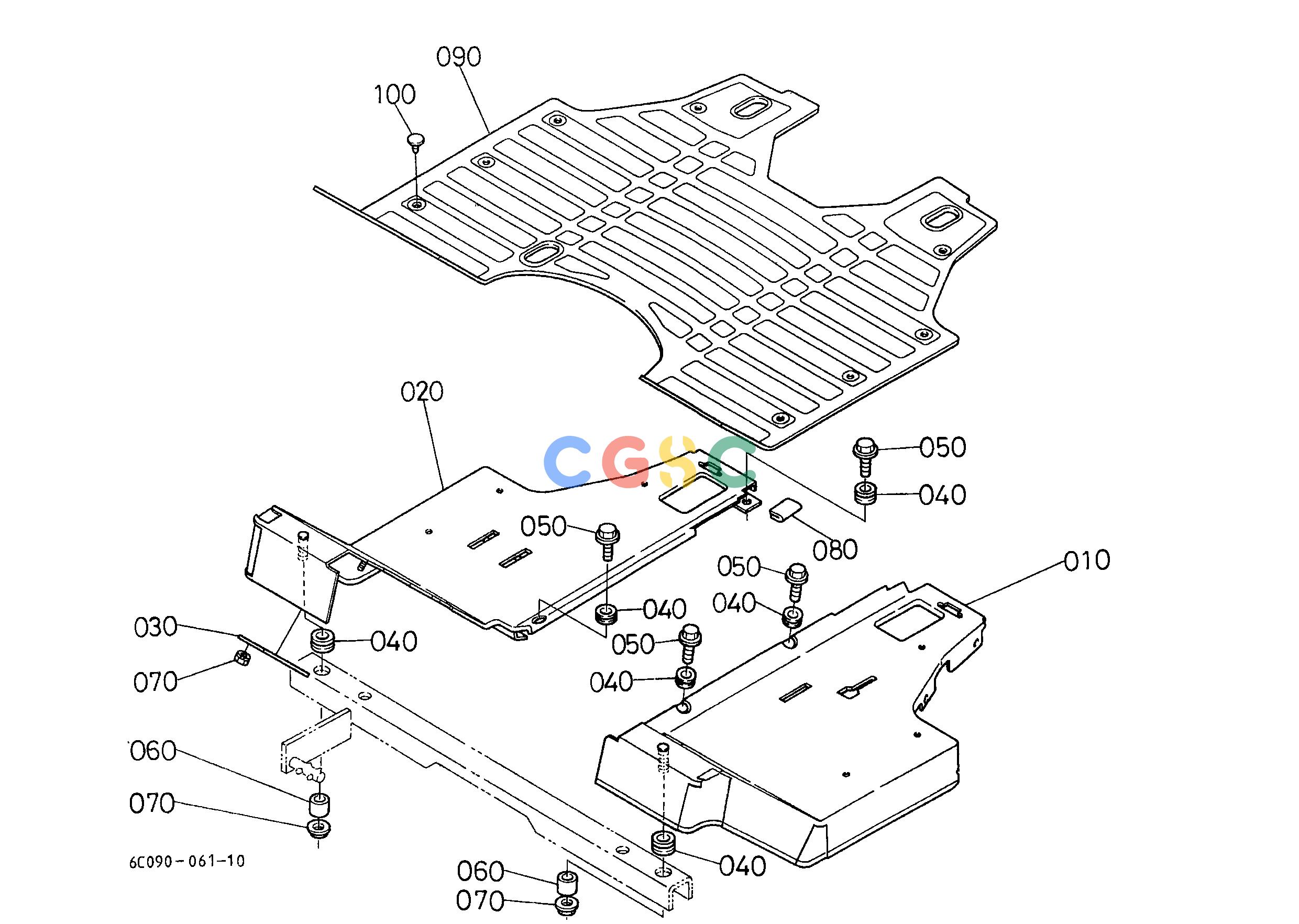

久保田零件查询T10500 STEP HOOD(BONNET)/CHASSISEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
909 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C04051318
|
[1] |
STEP LH
|
7.4800(lbs); 3.400
|
| 020. |
6C04051325
|
[1] |
STEP RH
|
7.4800(lbs); 3.400
|
| 030. |
6C04051330
|
[1] |
SUPPORT STEP RH
|
0.1606(lbs); 0.073
|
| 040. |
6C04051380
|
[6] |
CUSHION
|
0.0000(lbs); 0.000
|
| 040. |
6A10051380
|
[6] |
CUSHION
|
0.0066(lbs); 0.003
|
| 050. |
6C04051342
|
[4] |
BOLT
|
0.0374(lbs); 0.017
|
| 060. |
6C04051390
|
[2] |
COLLAR
|
0.0066(lbs); 0.003
|
| 070. |
0212150080
|
[4] |
NUT
|
0.0220(lbs); 0.010
|
| 080. |
6C04051350
|
[1] |
CUSHION
|
0.0044(lbs); 0.002
|
| 090. |
6C04051364
|
[1] |
MAT STEP
|
4.5760(lbs); 2.080
|
| 100. |
6795551340
|
[12] |
STOPPER
|
0.0022(lbs); 0.001
|
