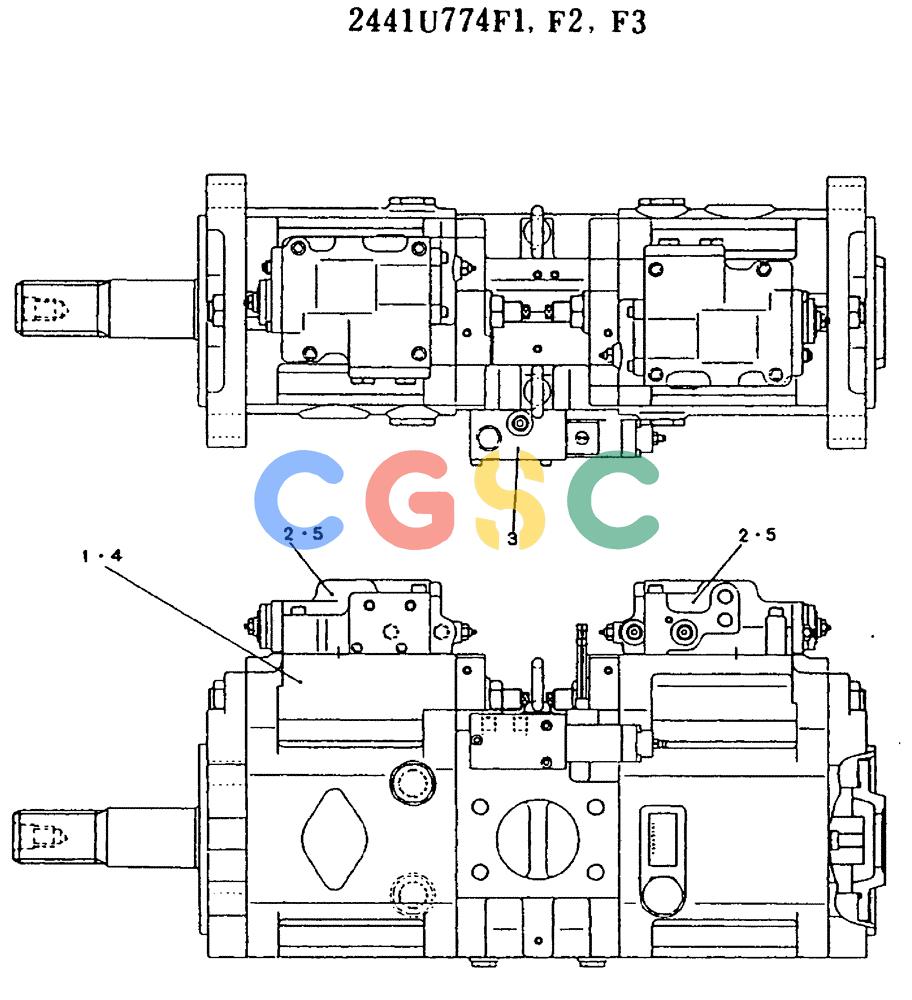

神钢零件查询(MD450BLC) - EXCAVATOR BTW TS0201 - TS0394 (1/80-12/06) (11-029) - PUMP ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
477 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2441U774F1 | [1] | PUMP | KOBCONSISTS OF THE FOLLOWING PARTS Superseded by part number: 2441U774F3 |
| . . | 2441U774F2 | [1] | PUMP | KOBPUMP ASSY CONSISTS OF THE FOLLOWING PARTS Superseded by part number: 2441U774F3 |
| . . | 2441U774F3 | [1] | PUMP | KOBCONSISTS OF THE FOLLOWING PARTS |
| 1. | 2437U219F1 | [1] | PUMP | KOBSEE FIGURE 11-024, F1 ONLY Superseded by part number: 2441U774F3 |
| 2. | 2436U1390F1 | [2] | REGULATOR | KOBREGULATOR ASSY SEE FIGURE 11-022, F1, F2 ONLY Superseded by part number: 2436U1390F2 |
| 3. | 2436U1320F1 | [1] | VALVE | KOBSOLENOID, SEE FIGURE 11-017 |
| 4. | 2437U219F2 | [1] | PUMP ASSY, SEE FIGURE 11-024, F2, F3 ONLY | |
| 5. | 2436U1390F2 | [2] | REGULATOR | KOBSEE FIGURE 11-022, F3 ONLY |
