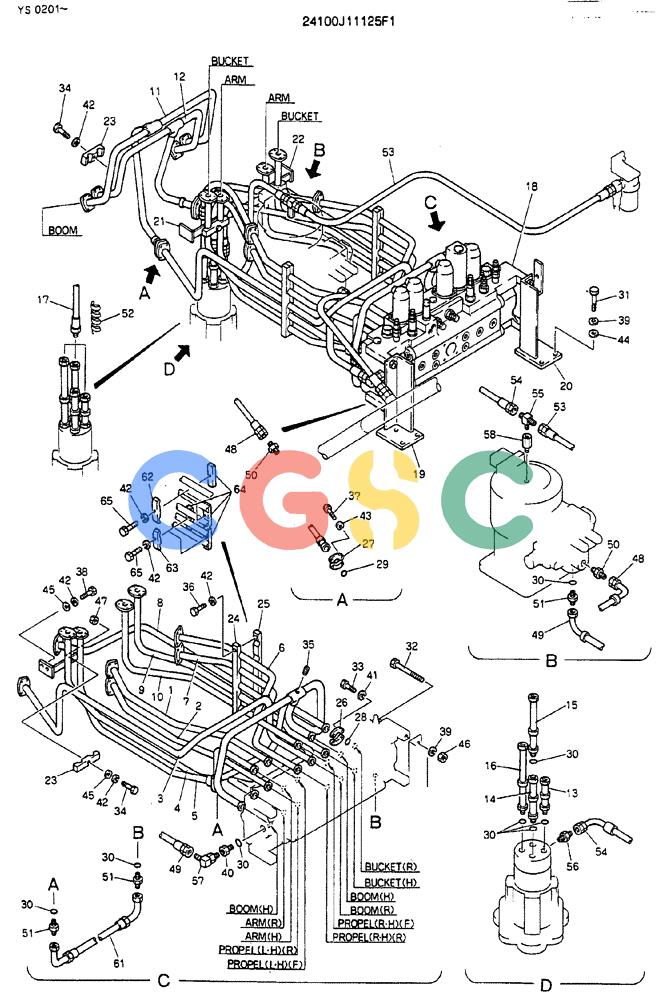

| . . | 24100J11125F1 | [1] | HYDR LINES, UPP | |
| 1. | 2418P20015 | [1] | RIGID TUBE | KOB |
| 2. | 2418P20016 | [1] | RIGID TUBE | KOB |
| 3. | 2418N4707 | [1] | RIGID TUBE | KOB |
| 4. | 2418N4717 | [1] | TUBE | KOB |
| 5. | 2418N4715 | [1] | RIGID TUBE | KOB |
| 6. | 2418P20017 | [1] | RIGID TUBE | KOB |
| 7. | 2418P20018 | [1] | RIGID TUBE | KOB |
| 8. | 2418N4708 | [1] | TUBE | KOB |
| 9. | 2418P20019 | [1] | RIGID TUBE | KOB |
| 10. | 2418N4688 | [1] | RIGID TUBE | KOB |
| 11. | 2418N4710 | [1] | TUBE | TUBE |
| 12. | 2418N4711 | [1] | TUBE | |
| 13. | 2418P20140D1 | [1] | TUBE | KOB |
| 14. | 2418P20140D2 | [1] | TUBE | KOB |
| 15. | 2418P20140D3 | [1] | RIGID TUBE | KOB |
| 16. | 2418P20140D4 | [1] | RIGID TUBE | KOB |
| 17. | 2420Z1260D1 | [4] | HOSE | KOB, Serial Range: YS0201-YS0232 |
| . . | 2420Z1260D2 | [4] | HOSE | KOB, Start Serial: YS0233 |
| 18. | 2436U1345F1 | [1] | CONTROL VALVE | KOB |
| 19. | 2416P13434 | [1] | BRACKET, Serial Range: YS0201-YS0246 | |
| . . | 2416P13434D2 | [1] | BRACKET, Start Serial: YS0247 | |
| 20. | 2416P13363 | [1] | BRACKET, Serial Range: YS0201-YS0246 | |
| . . | 2416P14471 | [1] | BRACKET, Start Serial: YS0247 | |
| 21. | 2416T12005D1 | [1] | BRACKET | BRACKET |
| 22. | 2416T12005D2 | [1] | BRACKET | KOB |
| 23. | ZC36X35016 | [4] | CLAMP | KOB |
| 24. | 2432T2143D1 | [2] | CLAMP, Serial Range: YS0201-YS0420 | CLAMP, Serial Range: YS0201-YS0420 |
| 25. | 2432T2143D2 | [2] | CLAMP, Serial Range: YS0201-YS0420 | CLAMP, Serial Range: YS0201-YS0420 |
| 26. | ZE13X20001 | [22] | CLAMP | KOBHalf -- (Incls. Capscrew & Lockwasher) Superseded by part number: ZE13X20000 |
| 27. | ZE13X16000 | [12] | FLANGE | KOBClamp, Half -- (Incls. Capscrew & Lockwasher) |
| 28. | ZD12P03800 | [11] | O-RING | KOBID 37.70 ± 0.37 x OD 44.7mm |
| 29. | ZD12P03400 | [6] | O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro | KOBID 33.70 ± 0.33 x OD 40mm |
| 30. | ZD12P02900 | [8] | O-RING | KOBID 28.70 ± 0.29 x OD 35mm |
| 31. | ZS13C16045 | [6] | SCREW | KOBScrew -- M16x2.0x45mm |
| 32. | 2420T6644D1 | [3] | SCREW | KOB |
| 33. | ZS23C14045 | [44] | SCREW,Hex Socket Head, M14 x 45mm | KOBM14x2.0x45mm Superseded by part number: ZS28C14045 |
| 34. | ZS13C12070 | [4] | SCREW | KOBM12x1.75x70mm Superseded by part number: ZS18C12070 |
| 35. | ZE72X04000 | [1] | PLUG | KOB(PF 1/4) (Incls. O-Ring ZD12P01100) |
| 36. | ZS13C12050 | [6] | SCREW | KOBM12x1.75x50mm, Serial Range: YS0201-YS0420 Superseded by part number: ZS18C12050 |
| 37. | ZS23C12040 | [24] | SCREW,Hex Socket Head, M12 x 40mm | KOBM12x1.75x40mm |
| 38. | ZS13C12025 | [4] | SCREW | KOBM12x1.75x25mm Superseded by part number: ZS18C12025 |
| 39. | ZW22X16000 | [9] | WASHER, LOCK | KOBID 16 x OD 28.0 x Th 4.0mm |
| 40. | 2444Z2744 | [1] | HYD CONNECTOR | KOB |
| 41. | ZW22K14000 | [44] | LOCK WASHER | KOBID 14.2 x OD 21.8 x Th 3.5mm |
| 42. | ZW26X12000 | [14] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm, Serial Range: YS0201-YS0420 |
| . . | ZW26X12000 | [16] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm, Start Serial: YS0421 |
| 43. | ZW22K12000 | [24] | LOCK WASHER | KOBID 12.2 x OD 17.8 x Th 2.5mm |
| 44. | ZW11X16000 | [6] | WASHER | KOBID 16 x OD 30 x Th 2.3mm |
| 45. | ZW11X12000 | [6] | WASHER | KOBID 12 x OD 24 x Th 2.3mm Superseded by part number: ZW16X12000 |
| 46. | ZN13C16013 | [3] | NUT | KOBM16x2.0mm |
| 47. | ZN13C12010 | [2] | NUT | KOBM12x1.75mm Superseded by part number: ZN18C12010 |
| 48. | 2420R570D1 | [1] | HOSE | KOB, Serial Range: YS0201-YS0232 |
| . . | 2420R570D2 | [1] | HOSE | KOB, Start Serial: YS0233 |
| 49. | 2444Z3269D3 | [1] | HOSE | KOB, Serial Range: YS0201-YS0232 |
| . . | 2444Z3269D6 | [1] | HOSE | KOB |
| 50. | 2444Z3219 | [2] | HYD CONNECTOR | KOB |
| 51. | 2444T1342 | [3] | HYD CONNECTOR | KOB |
| 52. | 2414Z199D25 | [4] | PROTECTIVE SLEEVE | KOB, Serial Range: YS0201-YS0232 Superseded by part number: 2414Z199D025 |
| 53. | ZX51M12210 | [1] | HOSE | KOB |
| 54. | ZX61M12150 | [1] | HOSE | KOB |
| 55. | 2444T3106 | [1] | TEE | KOB(Incls. O-Ring ZD12P01800) |
| 56. | ZH22X12000 | [1] | HYD CONNECTOR | KOB(Incls. O-Ring ZD12P02400) |
| 57. | ZF33B35000 | [1] | HYD CONNECTOR | KOBELBOW |
| 58. | 2444T3427 | [1] | HYD CONNECTOR | KOB |
| 61. | 2444Z3355D1 | [1] | HOSE | KOB |
| 62. | 2432T5353 | [4] | CLAMP | KOB, Start Serial: YS0421 |
| 63. | 2432T5354 | [4] | CLAMP | KOB, Start Serial: YS0421 |
| 64. | 2416T26561 | [8] | BLOCK | KOB, Start Serial: YS0421 |
| 65. | ZS18C12075 | [8] | SCREW,Hex, M12 x 75mm | KOBM12x1.75x75mm, Start Serial: YS0421 |
