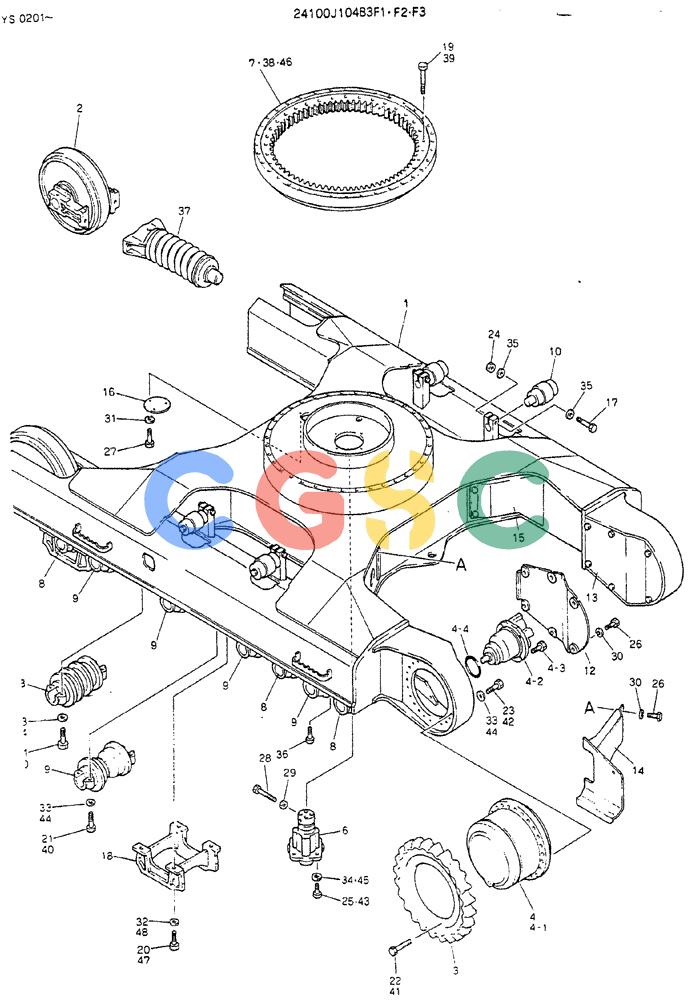

| . . | 24100J10483F1 | [1] | INSTAL, LOW, Serial Range: YS0201-YS0224 | |
| . . | 24100J10483F2 | [1] | INSTAL, LOW, Serial Range: YS0225-YS0275 | |
| . . | 24100J10483F3 | [1] | INSTAL, LOW, Start Serial: YS0276 | |
| 1. | 2422J2778 | [1] | FRAME, LOW | |
| 2. | NSS | [2] | NOT SOLD SEPARAT | CONIDLER ASSY, SEE FIGURE 06-001 |
| 3. | 2404N257 | [2] | DRIVING SPROCKET | KOB Superseded by part number: LS53DU0001P1 |
| 4. | 24100N5661F1 | [2] | MOTOR ASSY | MOTOR ASSY |
| 4-1. | NSS | [1] | NOT SOLD SEPARAT | CONREDUCTION UNIT, SEE FIGURE 06-006 |
| 4-2. | 2441U781F1 | [1] | MOTOR-PUMP | KOBMOTOR ASSY Superseded by part number: 2441U781F3 |
| 4-3. | ZS23C18050 | [4] | SCREW,Hex Socket Head, M18 x 50mm | KOBM18x2.50x50mm |
| 4-4. | 2445Z1430 | [1] | O-RING | KOB |
| 6. | 2436U1044F2 | [1] | HYDRAULIC SWIVEL | KOB Superseded by part number: LS55V00001F1 |
| 7. | NSS | [1] | NOT SOLD SEPARAT | CONRING, SLEWING, SEE FIGURE 06-007, Serial Range: YS0201-YS0224 |
| 8. | NSS | [8] | NOT SOLD SEPARAT | CONROLLER, LOW (W TYPE), SEE FIGURE 06-003 |
| 9. | NSS | [10] | NOT SOLD SEPARAT | CONROLLER, LOW (S TYPE), SEE FIGURE 06-003 |
| 10. | NSS | [4] | NOT SOLD SEPARAT | CONROLLER, UPPER, SEE FIGURE 06-004 |
| 12. | 2414N2905D1 | [1] | COVER | |
| 13. | 2414N2905D2 | [1] | COVER | COVER |
| 14. | 2414N3921D2 | [1] | COVER | |
| 15. | 2414N3921D1 | [1] | COVER | COVER |
| 16. | 2414T1412 | [1] | COVER | KOB |
| 17. | ZS13C20130 | [4] | SCREW | KOB |
| 18. | 2414P4776 | [4] | GUIDE | KOB Superseded by part number: 2414P4776K |
| 19. | 2420Z1627 | [36] | SCREW | KOB, Serial Range: YS0201-YS0275 Superseded by part number: 2420Z1331 |
| 20. | 2420Z1628 | [16] | CAPSCREW, Serial Range: YS0201-YS0275 | CAPSCREW, Serial Range: YS0201-YS0275 |
| 21. | 2420Z1629 | [72] | SCREW | KOB, Serial Range: YS0201-YS0275 Superseded by part number: 2420Z1313 |
| 22. | ZS18C24070 | [48] | SCREW,Hex, M24 x 70mm | KOBM24x3.0x70mm, Serial Range: YS0201-YS0275 |
| 23. | ZS18C22075 | [48] | SCREW,Hex, M22 x 75mm | KOB, Serial Range: YS0201-YS0275 |
| 24. | ZN18C20012 | [4] | NUT | KOBM20x2.5mm, Serial Range: YS0201-YS0360 |
| . . | ZN18C20016 | [4] | NUT | KOBM20x2.5mm, Start Serial: YS0361 |
| 25. | ZS18C16050 | [4] | SCREW,Hex, M16 x 50mm | KOBM16x2.0x50mm, Serial Range: YS0201-YS0275 |
| 26. | ZS18C16025 | [22] | SCREW,Hex, M16 x 25mm | KOBM16x2.0x25mm |
| 27. | ZS18C10014 | [3] | SCREW,Hex, M10 x 14mm | KOBM10x1.50x14mm |
| 28. | ZS18C24170 | [1] | SCREW,Hex, M24 x 170mm | KOBM24x3.0x170mm |
| 29. | ZN18C24019 | [1] | NUT | KOBM24x3.0mm |
| 30. | ZW26X16000 | [10] | LOCK WASHER | KOBID 16 x OD 28 x Th 4.0mm |
| 31. | ZW26X10000 | [3] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 32. | ZW16H24000 | [16] | WASHER | KOBID 25 x OD 48 x Th 6.0mm, Serial Range: YS0201-YS0275 |
| 33. | ZW16H22000 | [120] | WASHER | KOBID 23 x OD 44 x Th 6.0mm, Serial Range: YS0201-YS0275 |
| 34. | ZW16H16000 | [4] | WASHER | KOBID 17 x OD 32 x Th 4.5mm, Serial Range: YS0201-YS0275 |
| 35. | ZW16H20000 | [8] | WASHER | KOBID 21 x OD 40 x Th 4.5mm |
| 36. | 2420Z1214 | [8] | SET OF SCREWS | KOB |
| 37. | NSS | [2] | NOT SOLD SEPARAT | CONSPRING ASSY, TRACK, SEE FIGURE 06-005 |
| 38. | NSS | [1] | NOT SOLD SEPARAT | CONRING, SLEWING, SEE FIGURE 06-007, Serial Range: YS0225-YS0275 |
| 39. | 2420Z1331 | [36] | SCREW | KOB |
| 40. | 2420Z1313 | [72] | SCREW | KOB, Start Serial: YS0276 |
| 41. | ZS13C24070 | [48] | SCREW | KOBM24x3.0x70mm, Start Serial: YS0276 |
| 42. | ZS13C22075 | [48] | CAPSCREW, Start Serial: YS0276 | |
| 43. | ZS13C16050 | [4] | SCREW | KOBM16x2.0x50mm, Start Serial: YS0276 |
| 44. | ZW13H22000 | [120] | WASHER | KOBID 22 x OD 44 x Th 6.0mm, Start Serial: YS0276 |
| 45. | ZW13H16000 | [4] | WASHER | KOBID 17 x OD 32 x Th 4.5mm, Start Serial: YS0276 |
| 46. | NSS | [1] | NOT SOLD SEPARAT | CONRING, SLEWING, SEE FIGURE 06-007, Start Serial: YS0276 |
| 47. | 2420Z1312 | [16] | SCREW | KOB, Start Serial: YS0276 |
| 48. | ZW13H24000 | [16] | WASHER | KOBID 24 x OD 39 x Th 4.0mm, Start Serial: YS0276 |
