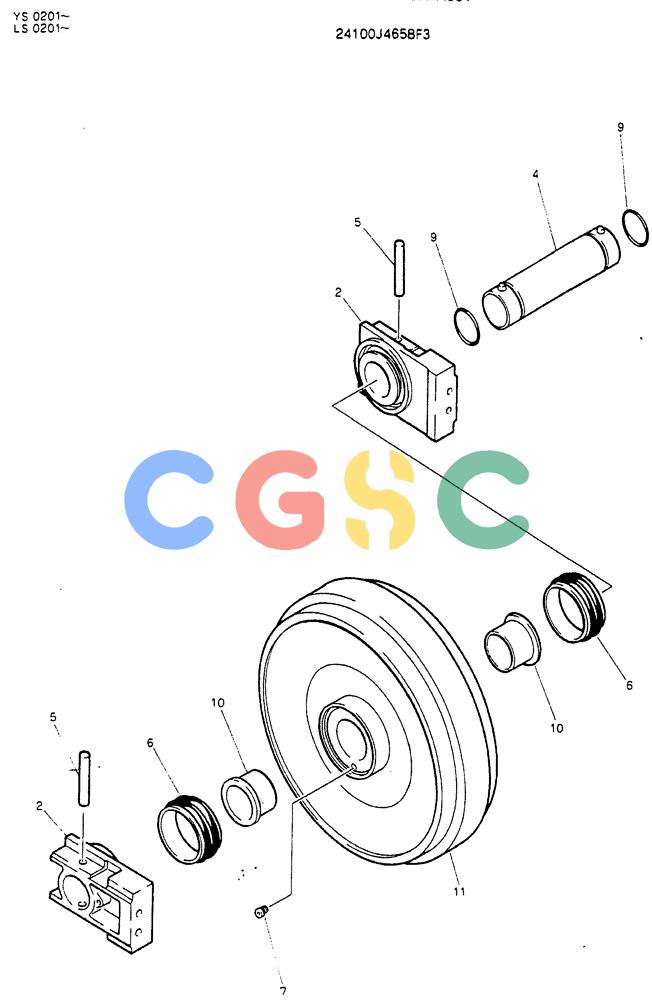

神钢零件查询(MD450BLC) - EXCAVATOR BTW TS0201 - TS0394 (1/80-12/06) (06-002) - IDLER ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
402 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J4658F3 | [1] | IDLER WHEEL | KOB Superseded by part number: LS52DU0001F1 |
| 2. | 2416N2603 | [2] | BLOCK | KOBSLIDE |
| 4. | 2410P456 | [1] | ROLLER SHAFT | KOB |
| 5. | 2419T2669D3 | [2] | PIN | KOBOD 20 x 147mm Long |
| 6. | ZD57F15040 | [2] | FLOAT | KOB Superseded by part number: R45P0018D16, ZD58F15040 |
| 7. | ZE82T04000 | [2] | PLUG | KOB1/4" PT |
| 9. | ZD11G09500 | [2] | O-RING,94.40mm ID x 100.60mm OD x 3.10mm | KOBID 94.40 ± 0.81 x OD 100mm |
| 10. | 2405P212 | [2] | BUSHING | KOB |
| 11. | 2413U237 | [1] | WHEEL ASSY | KOB Superseded by part number: LS52DU1001P1 |
