神钢零件查询(MD450BLC) - EXCAVATOR BTW TS0201 - TS0394 (1/80-12/06) (06-003) - ROLLER ASSY (LOWER) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
690 次

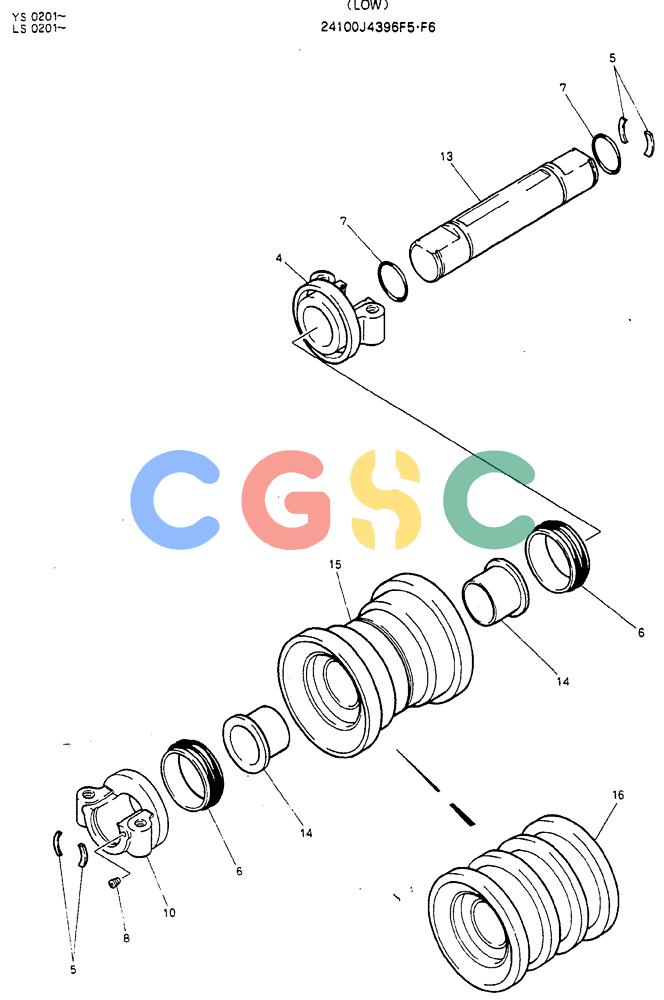

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J4396F5 | [1] | TRACK ROLLER | KOBROLLER ASSY Superseded by part number: LS64DU0001F1 |
| . . | 24100J4396F6 | [1] | TRACK ROLLER | KOB Superseded by part number: 24100J4396F10 |
| 4. | 2418N1944D1 | [1] | COLLAR CLAMP | KOB |
| 5. | 2418T4627 | [4] | RING | KOB Superseded by part number: LS64DU0007P1 |
| 6. | ZD57F12038 | [2] | SEAL | KOB Superseded by part number: 77275891, ZD58F12038, R45P0018D14 |
| 7. | ZD11G07500 | [2] | O-RING,74.40mm ID x 80.60mm OD x 3.10mm | KOBID 74.40 ± 0.65 x OD 80mm |
| 8. | ZE82T04000 | [2] | PLUG | KOB1/4" PT |
| 10. | 2418N1944D2 | [1] | COLLAR CLAMP | KOB |
| 13. | 2410P976 | [1] | SHAFT | KOB |
| 14. | 2405P308 | [2] | BUSHING | KOB |
| 15. | 2413N578 | [1] | ROLLER | KOB(F5) |
| 16. | 2413N579 | [1] | ROLLER | KOB(F6) |
