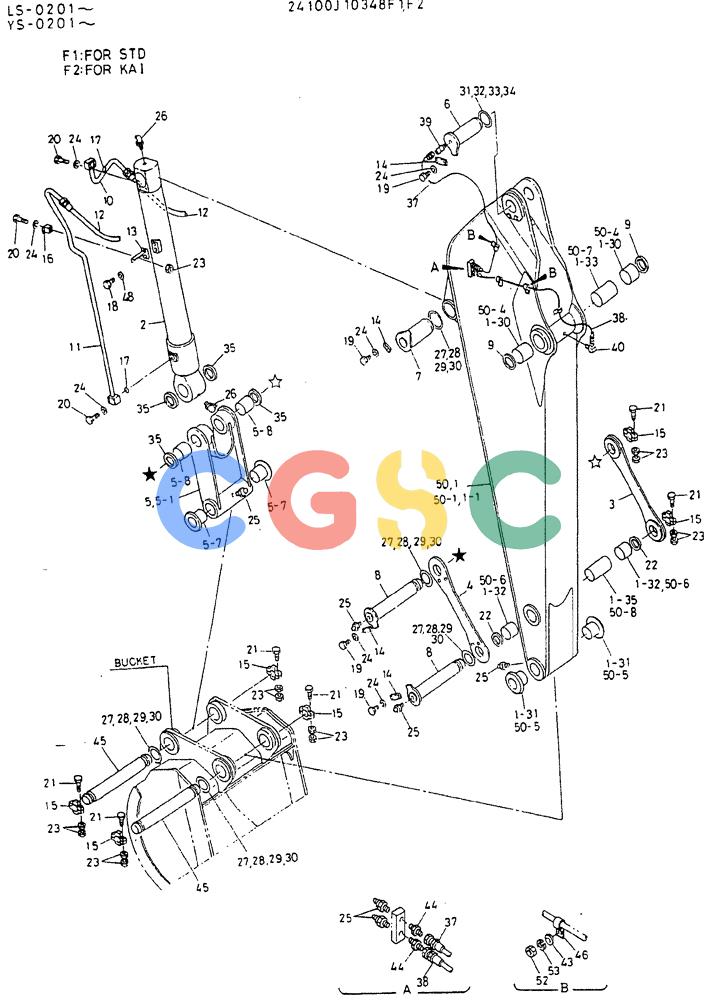

| . . | 24100J10348F1 | [1] | ARM ASSY, 3.4M | |
| 1. | 2411J3431F1 | [1] | ARM | ARM |
| 1-1. | 2411J3431 | [1] | ARM | |
| 1-30. | 2405T1334 | [2] | BUSHING,120mm ID x 145mm OD x 130mm W | KOBID 120 x OD 145 x130mm Long |
| 1-31. | 2405P307 | [2] | BUSHING | KOBID 100 x OD 120 x 110mm Long, Flange OD 190 Superseded by part number: 2405P311 |
| 1-32. | 2405T920 | [2] | BUSHING | KOBID 100 x OD 120 x 100mm Long Superseded by part number: 2405T1950 |
| 1-33. | 2418T18985 | [1] | SPACER | KOBID 126.6 x OD 144.8 x 178mm Long |
| 1-35. | 2418T9360D1 | [1] | SPACER | KOBID 108 x OD 119.9 x 220mm Long |
| 2. | 2438U1030F1 | [1] | CYLINDER | KOBBUCKET |
| 3. | 2406N1423D1 | [1] | LINK CONROD | KOB |
| 4. | 2406N1423D2 | [1] | LINK CONROD | KOB |
| 5. | 2420N381F1 | [1] | LINK CONROD | KOB |
| 5-1. | 2420N381 | [1] | LINK, BUCKET | |
| 5-7. | 2405P311 | [2] | BUSHING | KOBID 100 x OD 120 x 110mm Long, Flange OD 190 |
| 5-8. | 2405T921 | [2] | BUSHING | KOBID 100 x OD 120 x 108mm Long |
| 6. | 2419P2652 | [1] | PIN,110mm OD x 315mm L | KOBOD 110 x 315mm Long |
| 7. | 2419P2198 | [1] | PIN,100mm OD x 305mm L | KOBOD 100 x 305mm Long |
| 8. | 2419P2943 | [2] | PIN | KOBOD 100 x 614mm Long |
| 9. | 2445Z1444 | [2] | DUST CAP | KOBSeal -- ID 120 x OD 145 x Th 4mm |
| 10. | 2418P20288 | [1] | RIGID TUBE | KOB |
| 11. | 2418P20287 | [1] | RIGID TUBE | KOB |
| 12. | ZX58N16160 | [2] | FLEXIBLE HOSE | KOB1600mm Long (63 in) |
| 13. | 2416P6934 | [1] | U-BRACKET | KOB |
| 14. | 2418T3887D1 | [4] | PLATE | KOB |
| 15. | 2432P1089 | [12] | CLAMP | KOB |
| 16. | 2432T1213D2 | [1] | CLAMP | KOB |
| 17. | ZD12P03400 | [2] | O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro | KOBID 33.70 ± 0.33 x OD 40mm |
| 18. | ZS18C10025 | [4] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm |
| 19. | ZS18C12025 | [8] | SCREW,Hex, M12 x 25mm | KOBM12x1.75x25mm |
| 20. | ZS18C12075 | [9] | SCREW,Hex, M12 x 75mm | KOBM12x1.75x75mm |
| 21. | ZS18C12100 | [12] | SCREW,Hex, M12 x 100mm | KOBM12x1.75x100mm |
| 22. | 2445R138D9 | [2] | SEAL,100mm ID x 120mm OD x 4mm Thk | KOBDust -- ID 100 x OD 120 x Th 4mm |
| 23. | ZN18C12010 | [25] | NUT | KOBM12x1.75mm |
| 24. | ZW16H12000 | [17] | WASHER | KOBID 13 x OD 26 x Th 3.2mm |
| 25. | ZG91S02000 | [10] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| 26. | ZG91U02000 | [2] | LUBE NIPPLE | KOB90° x 1/8" PT |
| 27. | 2420T2747D2 | [3] | SHIM,102mm ID x 170mm OD x 1.2mm Thk | KOBID 102 x OD 170 x Th 1.2mm |
| 28. | 2420T2747D3 | [3] | SHIM,102mm ID x 170mm OD x 1.6mm Thk | KOBID 102 x OD 170 x Th 1.6mm |
| 29. | 2420T2747D4 | [3] | SHIM,102mm ID x 170mm OD x 2.3mm Thk | KOBID 102 x OD 170 x Th 2.3mm |
| 30. | 2420T2747D5 | [3] | SHIM,102mm ID x 170mm OD x 3.2mm Thk | KOBID 102 x OD 170 x Th 3.2mm |
| 31. | 2420T2747D7 | [1] | SHIM,112mm ID x 180mm OD x 1.2mm Thk | KOBID 112 x OD 180 x Th 1.2mm |
| 32. | 2420T2747D8 | [1] | SHIM,112mm ID x 180mm OD x 1.6mm Thk | KOBID 112 x OD 180 x Th 1.6mm |
| 33. | 2420T2747D9 | [1] | SHIM,112mm ID x 180mm OD x 2.3mm Thk | KOBID 112 x OD 180 x Th 2.3mm |
| 34. | 2420T2747D10 | [1] | SHIM,112mm ID x 180mm OD x 3.2mm Thk | KOBID 112 x OD 180 x Th 3.2mm |
| 35. | 2445R138D9 | [4] | SEAL,100mm ID x 120mm OD x 4mm Thk | KOBDust -- ID 100 x OD 120 x Th 4mm |
| 37. | 2420R349D076 | [1] | HOSE,6.30 mm ID x 760.00 mm, SAE 100R7 | KOB760mm Long (29-59/64 in) Superseded by part number: HX21E04076DX |
| 38. | 2420R349D120 | [1] | HOSE,6.35mm ID x 1200mm L | KOB |
| 39. | 2444T2032D2 | [1] | HYD CONNECTOR | KOBElbow, 90° -- 1/4" PF - 1/8" PT x 43mm Long |
| 40. | 2444T2032 | [1] | HYD CONNECTOR | KOBElbow, 90° -- 1/4" PF - 1/8" PT x 20mm Long |
| 43. | ZW16X06000 | [4] | WASHER | KOBID 06 x OD 12.5 x Th 1.6mm Superseded by part number: 86588450 |
| 44. | 2444Z2002 | [2] | HYD CONNECTOR | KOB1/8"PTx1/4"PFx32mm Long |
| 45. | 2419P2999 | [2] | PIN,99mm OD x 781mm L | KOBOD 99 X 781mm Long |
| 46. | ZC45X10009 | [4] | CLIP | KOBLS0201, YS0201 to LS0214, YS0222 Superseded by part number: ZC46X10009 |
| . . | 2432R225D3 | [4] | CLAMP | KOBSingle -- ID 10 x 35.8mm Long LS0215, Start Serial: YS0223 Superseded by part number: ZC46X10009 |
| 48. | ZW16H10000 | [4] | WASHER | KOBID 11 x OD 24 x Th 3.2mm |
| 52. | ZN18C06005 | [4] | NUT | KOBM06x1.0mm |
| 53. | ZW26X06000 | [4] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm |
| 50. | 2411N2199F1 | [1] | ARM | |
| 50-1. | 2411N2199 | [1] | ARM | |
| 50-4. | 2405T1334 | [2] | BUSHING,120mm ID x 145mm OD x 130mm W | KOBID 120 x OD 145 x130mm Long |
| 50-5. | 2405P307 | [2] | BUSHING | KOBID 100 x OD 120 x 110mm Long, Flange OD 190 Superseded by part number: 2405P311 |
| 50-6. | 2405T920 | [2] | BUSHING | KOBID 100 x OD 120 x 100mm Long Superseded by part number: 2405T1950 |
| 50-7. | 2418T18985 | [1] | SPACER | KOBID 126.6 x OD 144.8 x 178mm Long |
| 50-8. | 2418T9360D1 | [1] | SPACER | KOBID 108 x OD 119.9 x 220mm Long |
