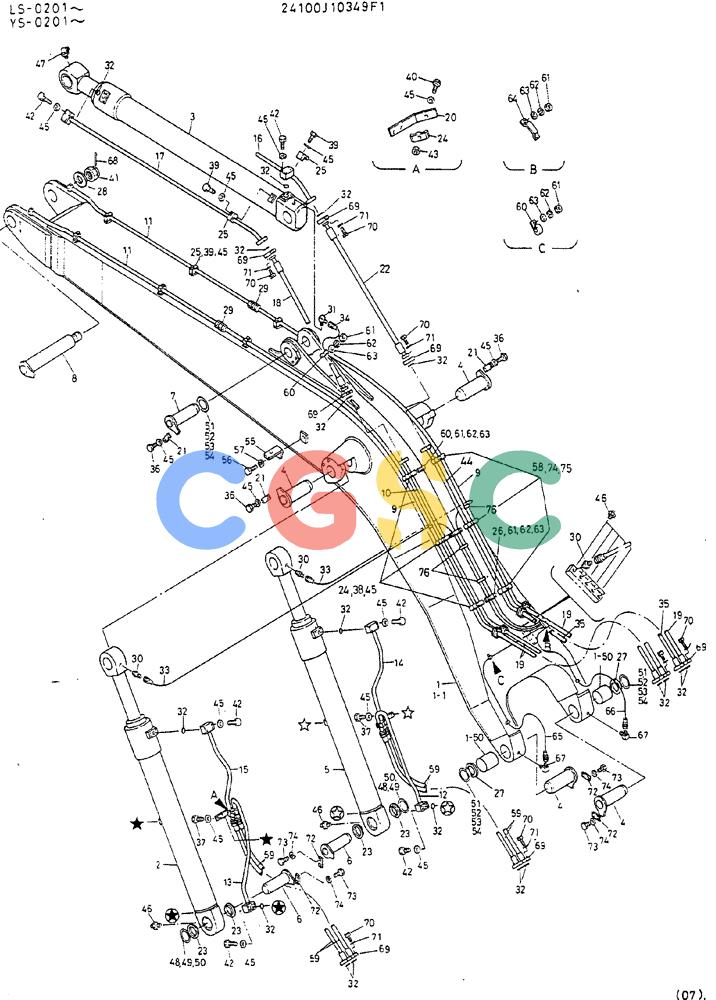

| . . | 24100J10349F1 | [1] | BOOM ASSY, 7.05M | |
| 1. | 2411J3423F1 | [1] | BOOM | BOOM |
| 1-1. | 2411J3423 | [1] | BOOM | |
| 1-50. | 2405T918 | [2] | BUSHING | KOB |
| 2. | 2438U1028D1F1 | [1] | CYLINDER BOOM | CYLINDER BOOM |
| 3. | 2438U1029F1 | [1] | CYLINDER | KOBARM |
| 4. | 2419P2877 | [4] | PIN | KOB |
| 5. | 2438U1028D2F1 | [1] | CYLINDER BOOM | CYLINDER BOOM |
| 6. | 2419P2192 | [2] | PIN | KOB |
| 7. | 2419P2194 | [1] | PIN | KOB |
| 8. | 2419P2874 | [1] | PIN | KOB |
| 9. | 2418N1978 | [2] | RIGID TUBE | KOB |
| 10. | 2418P20060 | [1] | TUBE | KOB |
| 11. | 2418P8649 | [2] | RIGID TUBE | KOB |
| 12. | 2418P21119D1 | [1] | TUBE | KOB |
| 13. | 2418P21119D2 | [1] | RIGID TUBE | KOB |
| 14. | 2418P20105D1 | [1] | TUBE | KOB |
| 15. | 2418P20105D2 | [1] | TUBE | KOB |
| 16. | 2418P20138 | [1] | RIGID TUBE | KOB |
| 17. | 2418P20139 | [1] | TUBE | KOB |
| 18. | ZX28P16120 | [1] | FLEXIBLE HOSE | KOB |
| 19. | ZX58S16160 | [3] | HOSE | KOB |
| 20. | 2416P6933 | [2] | BRACKET | KOB |
| 21. | 2418T3887D1 | [3] | PLATE | KOB |
| 22. | 2444R1052D1 | [1] | FLEXIBLE HOSE | KOB |
| 23. | 2418T6869 | [4] | SPACER | SPACER |
| 24. | 2432T1264 | [5] | CLAMP | KOB |
| 25. | 2432T1213D2 | [8] | CLAMP | KOB |
| 26. | 2416T3655 | [2] | CLAMP | KOB |
| 27. | 2445R138D10 | [4] | SEAL,110mm ID x 130mm OD x 4mm Thk | KOBDust -- ID 110 x OD 130 x Th 4mm |
| 28. | R16T0079D2 | [1] | WASHER | KOB |
| 29. | ZF23B35000 | [2] | HYD CONNECTOR | KOB |
| 30. | ZH22Z04000 | [7] | HYD CONNECTOR | KOB1/4"PTx1/4"PFx37mm Long |
| 31. | ZH32Z04000 | [1] | ELBOW | KOB90° -- (1/4" PT - 1/4" PT), (Incls. O-Ring ZD12P01100) |
| 32. | ZD12P03400 | [19] | O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro | KOBID 33.70 ± 0.33 x OD 40mm |
| 33. | 2420R349D350 | [2] | FLEXIBLE HOSE | KOB3500mm Long (137-51/64 in) Superseded by part number: HX21E04350DX |
| 34. | 2420R349D420 | [1] | HOSE | KOB4200mm Long (165-3/8 in) Superseded by part number: HX21E04420DX |
| 35. | 2444R1052D2 | [1] | FLEXIBLE HOSE | KOB |
| 36. | ZS18C12025 | [6] | SCREW,Hex, M12 x 25mm | KOBM12x1.75x25mm |
| 37. | ZS18C12035 | [4] | SCREW,Hex, M12 x 35mm | KOBM12x1.75x35mm |
| 38. | ZS18C12050 | [3] | SCREW,Hex, M12 x 50mm | KOBM12x1.75x50mm |
| 39. | ZS18C12065 | [8] | SCREW,Hex, M12 x 65mm | KOBM12x1.75x65mm |
| 40. | ZS18C12080 | [2] | SCREW,Hex, M12 x 80mm | KOBM12x1.75x80mm |
| 41. | R20P0050D4 | [1] | NUT | KOB |
| 42. | ZS18C12075 | [24] | SCREW,Hex, M12 x 75mm | KOBM12x1.75x75mm |
| 43. | ZN18C12010 | [2] | NUT | KOBM12x1.75mm |
| 44. | 2418P21382 | [1] | TUBE | KOB |
| 45. | ZW16H12000 | [47] | WASHER | KOBID 13 x OD 26 x Th 3.2mm |
| 46. | ZG91S02000 | [7] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| 47. | ZG91U02000 | [1] | LUBE NIPPLE | KOB90° x 1/8" PT |
| 48. | B16T0442D13 | [2] | SHIM,160mm OD x 92mm ID x 1.2mm Thk | KOBID 92 x OD 160 x Th 1.2mm |
| 49. | B16T0442D14 | [2] | SHIM,160mm OD x 92mm ID x 1.6mm Thk | KOBID 92 x OD 160 x Th 1.6mm |
| 50. | B16T0442D15 | [2] | SHIM,160mm OD x 92mm ID x 2.3mm Thk | KOBID 92 x OD 160 x Th 2.3mm |
| 51. | 2420T2747D7 | [2] | SHIM,112mm ID x 180mm OD x 1.2mm Thk | KOBID 112 x OD 180 x Th 1.2mm |
| 52. | 2420T2747D8 | [2] | SHIM,112mm ID x 180mm OD x 1.6mm Thk | KOBID 112 x OD 180 x Th 1.6mm |
| 53. | 2420T2747D9 | [2] | SHIM,112mm ID x 180mm OD x 2.3mm Thk | KOBID 112 x OD 180 x Th 2.3mm |
| 54. | 2420T2747D10 | [2] | SHIM,112mm ID x 180mm OD x 3.2mm Thk | KOBID 112 x OD 180 x Th 3.2mm |
| 55. | 2416T13056 | [1] | BRACKET | KOB |
| 56. | ZS18C10020 | [1] | SCREW,Hex, M10 x 20mm | KOBM10x1.50x20mm |
| 57. | ZW16H10000 | [1] | WASHER | KOBID 11 x OD 24 x Th 3.2mm |
| 58. | 2432T4325 | [3] | CLAMP | KOB |
| 59. | ZX58S16140 | [4] | HOSE | KOB |
| 60. | 2432R225D3 | [5] | CLAMP | KOBSingle -- ID 10 x 35.8mm Long Superseded by part number: ZC46X10009 |
| 61. | ZN18C06005 | [11] | NUT | KOBM06x1.0mm |
| 62. | ZW26X06000 | [11] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm |
| 63. | ZW16X06000 | [11] | WASHER | KOBID 06 x OD 12.5 x Th 1.6mm Superseded by part number: 86588450 |
| 64. | 2432T1476 | [1] | CLAMP | KOB |
| 65. | 2420R349D210 | [1] | FLEXIBLE HOSE | KOB2100mm Long (82-11/16 in) |
| 66. | 2420R349D140 | [1] | HOSE,6.35mm ID x 1400mm L | KOB1/4" PF |
| 67. | 2444T2032 | [2] | HYD CONNECTOR | KOBElbow, 90° -- 1/4" PF - 1/8" PT x 20mm Long |
| 68. | ZP15D10140 | [1] | COTTER PIN | KOB |
| 69. | ZE13X16000 | [26] | FLANGE | KOBClamp, Half -- (Incls. Capscrew & Lockwasher) |
| 70. | ZS23C12040 | [52] | SCREW,Hex Socket Head, M12 x 40mm | KOBM12x1.75x40mm |
| 71. | ZW26K12000 | [52] | LOCK WASHER | KOBID 12 x OD 17.8 x Th 2.5mm |
| 72. | 2418T17020 | [4] | PLATE | KOB |
| 73. | ZS18C14025 | [8] | SCREW,Hex, M14 x 25mm | KOBM14x2.0x25mm |
| 74. | ZW16H14000 | [11] | WASHER | KOBID 15 x OD 29 x Th 3.2mm |
| 75. | ZS18C14070 | [3] | SCREW,Hex, M14 x 70mm | KOBM14x2.0x70mm |
| 76. | 2432Z290 | [4] | CLIP | KOBWire Ties -- 185mm Long Superseded by part number: PY01P01043D3 |
