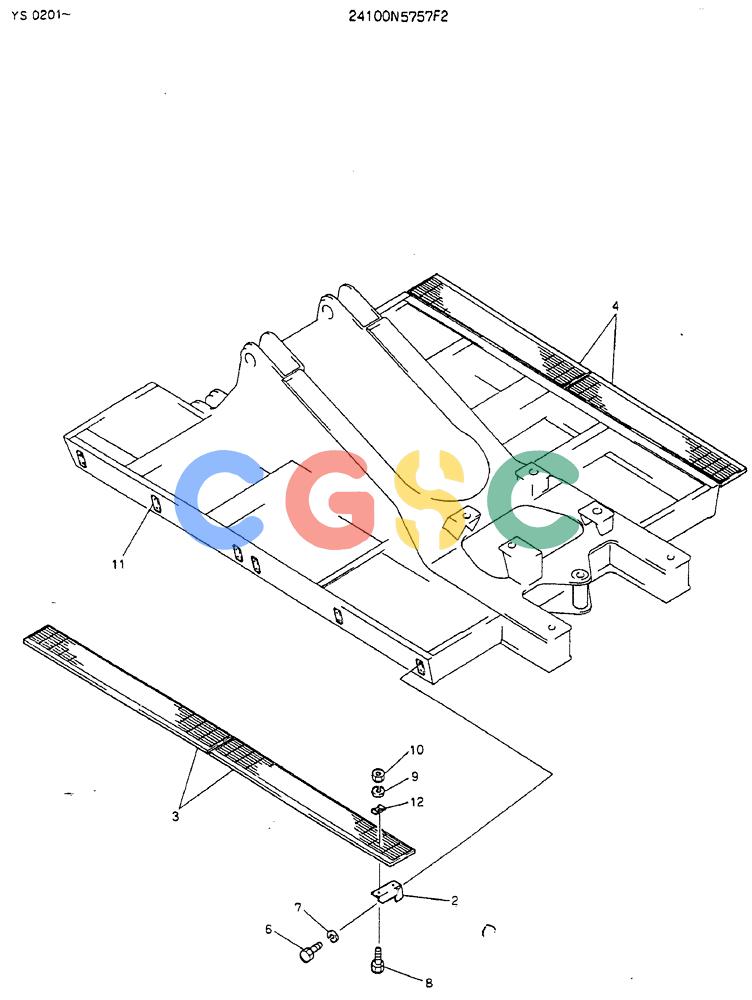

神钢零件查询(MD450BLC) - EXCAVATOR BTW TS0201 - TS0394 (1/80-12/06) (08-001) - CATWALK ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
230 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N5757F2 | [1] | DUST CAP | DUST CAP |
| 2. | 2416T22080 | [12] | BRACKET | KOB |
| 3. | 2428R1D1 | [2] | GRATING | GRATING |
| 4. | 2428R1D2 | [2] | GRATING | KOB |
| 6. | ZS18C10025 | [24] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm |
| 7. | ZW26X10000 | [24] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 8. | ZS18C08035 | [24] | SCREW,Hex, M8 x 35mm | KOBM08x1.25x35mm |
| 9. | ZW26X08000 | [24] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 10. | ZN18C08007 | [24] | NUT | KOBM08x1.25mm |
| 11. | 2422P1202 | [1] | REWORK, FRAME, UPP | REWORK, FRAME, UPP |
| 12. | 2406Z319 | [24] | CLIP | KOB |
