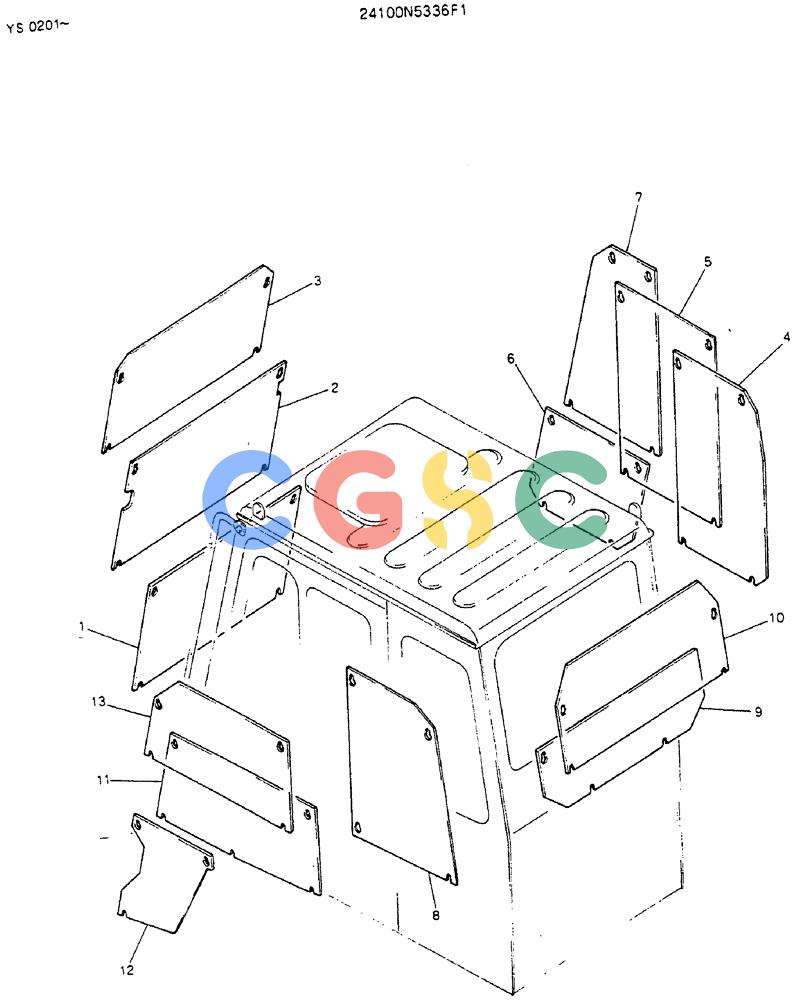

神钢零件查询(MD450BLC) - EXCAVATOR BTW TS0201 - TS0394 (1/80-12/06) (08-002) - GUARD ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
661 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N5336F1 | [1] | KIT | KOB |
| 1. | 2427P1904 | [1] | GUARD | KOB |
| 2. | 2427P1905 | [1] | GUARD | KOB |
| 3. | 2427P1906 | [1] | GUARD | KOB |
| 4. | 2427P1907 | [1] | GUARD | KOB |
| 5. | 2427P1908 | [1] | GUARD | GUARD |
| 6. | 2427P1909 | [1] | GUARD | KOB |
| 7. | 2427P1910 | [1] | GUARD | GUARD |
| 8. | 2427P1911 | [1] | GUARD | KOB |
| 9. | 2427P1912 | [1] | GUARD | KOB |
| 10. | 2427P1913 | [1] | GUARD | KOB |
| 11. | 2427P1914 | [1] | GUARD | KOB |
| 12. | 2427P1915 | [1] | GUARD | KOB |
| 13. | 2427P1916 | [1] | GUARD | KOB |
