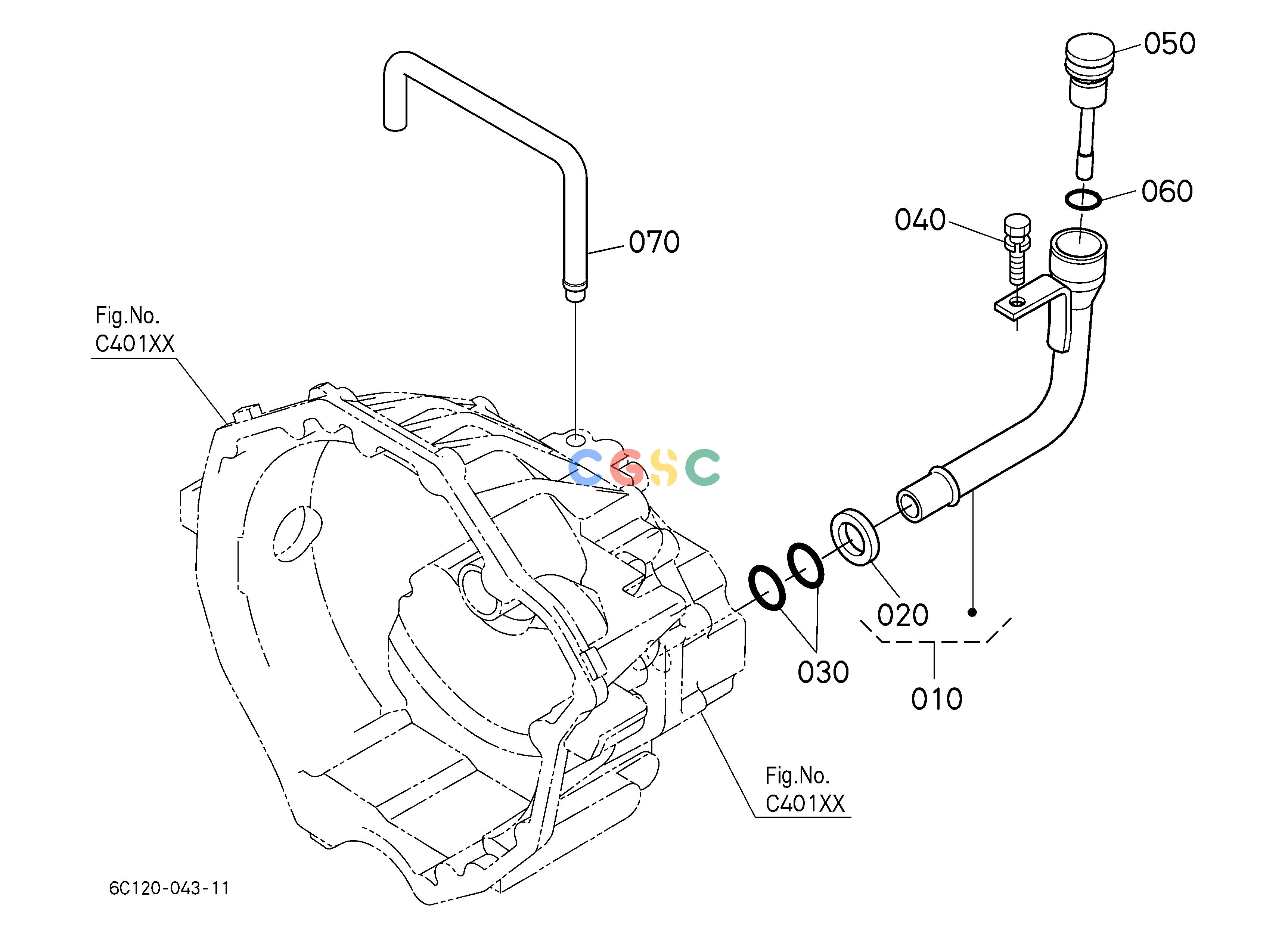

久保田零件查询C40500 CLUTCH DIPSTICK AND GUIDE CLUTCHEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
714 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C11013140
|
[1] |
PIPE OIL GAUGE
|
0.2420(lbs); 0.110
|
| 020. |
6C04013160
|
[1] |
RING
|
0.0022(lbs); 0.001
|
| 030. |
0481106170
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 030. |
0481606170
|
[2] |
O RING
|
0.0110(lbs); 0.005
|
| 040. |
0112350820
|
[1] |
BOLT
|
0.0242(lbs); 0.011
|
| 050. |
6C04056123
|
[1] |
GAUGE OIL
|
0.0528(lbs); 0.024
|
| 060. |
0481100180
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 060. |
0481600180
|
[1] |
O RING
|
0.0044(lbs); 0.002
|
| 070. |
6C11013190
|
[1] |
JOINT PIPE
|
0.0880(lbs); 0.040
|
| 070. |
6C11013180
|
[1] |
JOINT
|
0.1760(lbs); 0.080
|
