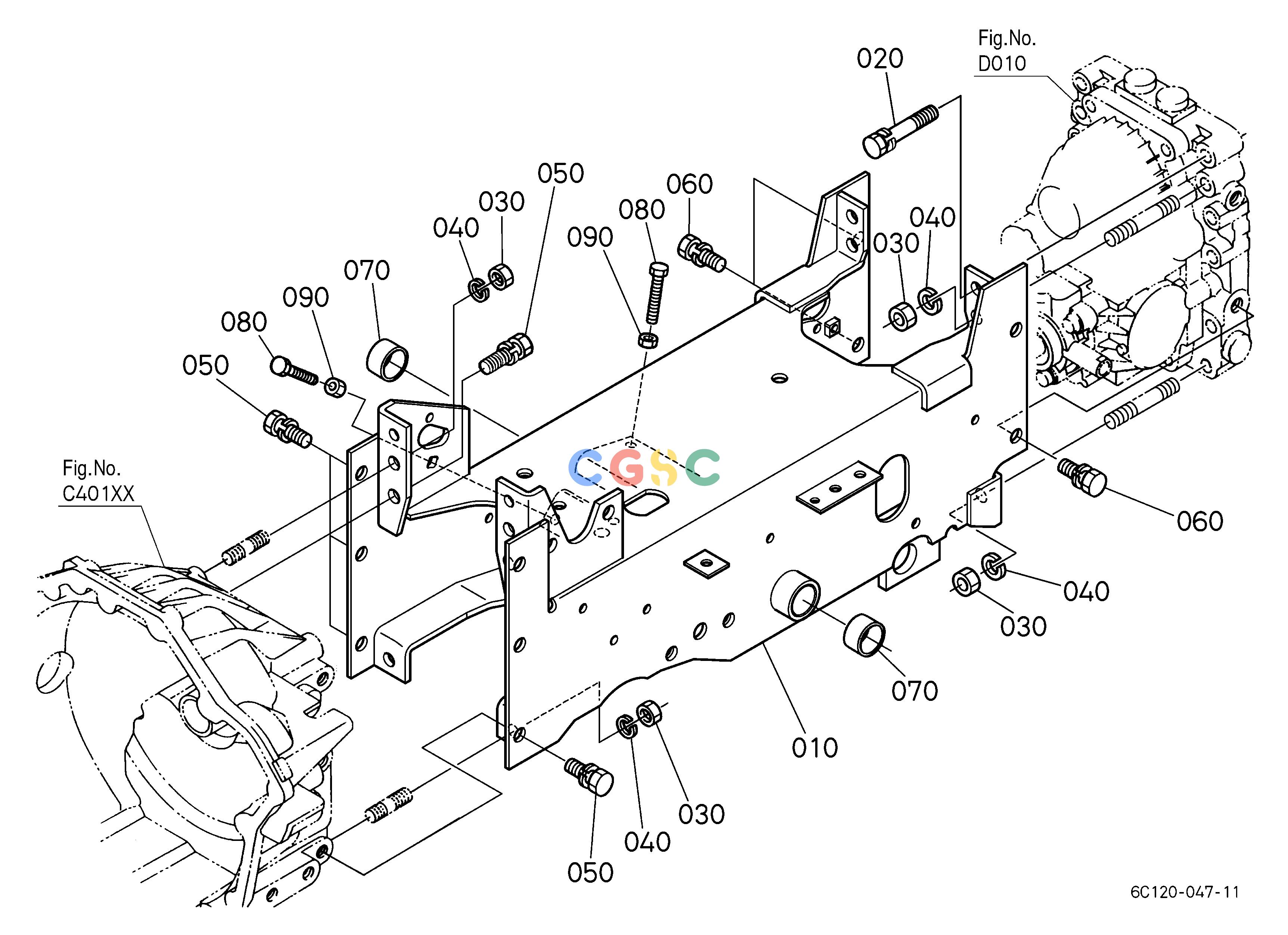

久保田零件查询C41501 CENTER FRAME CLUTCHEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
878 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C11051113
|
[1] |
COMP.FRAME CENTER
|
34.5400(lbs); 15.700
|
| 020. |
0112351265
|
[2] |
BOLT
|
0.1386(lbs); 0.063
|
| 030. |
0217450120
|
[8] |
NUT
|
0.0220(lbs); 0.010
|
| 040. |
0451260120
|
[8] |
WASHER SPRING
|
0.0110(lbs); 0.005
|
| 050. |
0112351230
|
[8] |
BOLT
|
0.0880(lbs); 0.040
|
| 060. |
0112361225
|
[4] |
BOLT
|
0.0880(lbs); 0.040
|
| 070. |
0851102515
|
[2] |
BUSH
|
0.0264(lbs); 0.012
|
| 080. |
0115550845
|
[2] |
BOLT
|
0.0440(lbs); 0.020
|
| 090. |
0211450080
|
[2] |
NUT
|
0.0110(lbs); 0.005
|
