神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (046-01-1) - MUFFLER ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
242 次

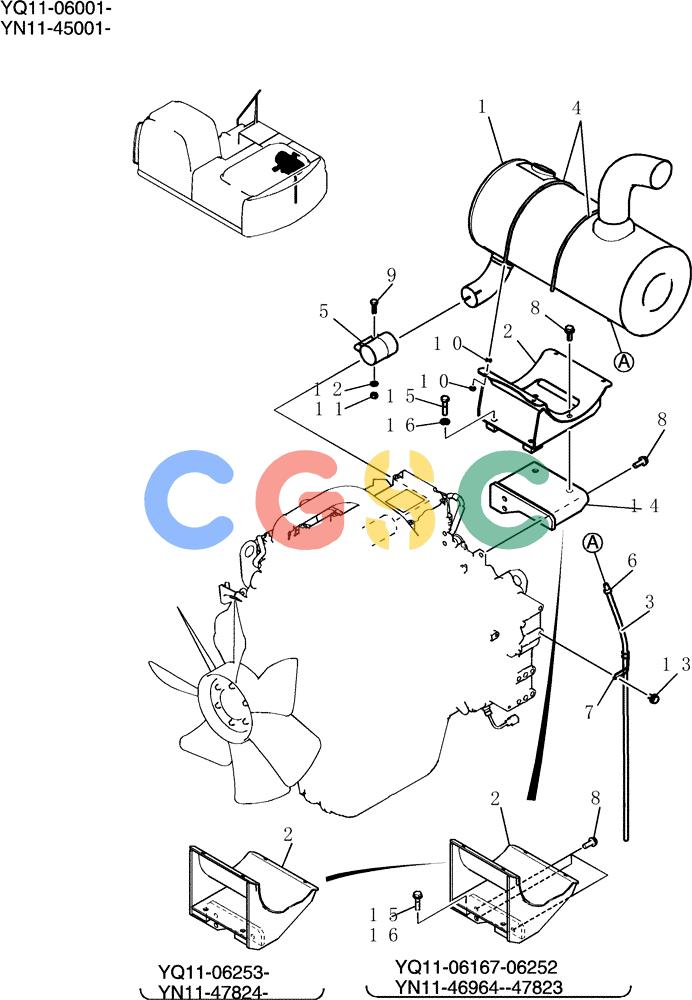

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN12P00034F1 | [1] | | |
| 1. | YN12P00041P2 | [1] | MUFFLER | KOB |
| 2. | YN12P01178P1 | [1] | BRACKET | KOB, Serial Range: YQ11-06001-YQ11-06166 |
| . . | LQ12P01082P1 | [1] | BRACKET | KOB, Serial Range: YQ11-06167-YQ11-06252 Superseded by part number: LQ12P01082P2 |
| . . | LQ12P01082P2 | [1] | BRACKET | KOB, Start Serial: YQ11-06253 |
| 3. | HX11Y07090DX | [1] | FLEXIBLE HOSE | KOB Superseded by part number: HX11Y07100DX |
| 4. | HR91C08000GM | [2] | U-BOLT | KOB |
| 5. | YN12P01023P1 | [1] | CLAMP,60.5mm - 65mm | KOBAssy |
| 6. | ZC16X01200 | [1] | CLIP,8mm - 15mm | KOB |
| 7. | YN12P01159P1 | [1] | CLIP | KOB |
| 8. | ZM73C12035 | [5] | BOLT,M12x35mm - Course Thread | KOBSems, Serial Range: YQ11-06001-YQ11-06166 |
| . . | ZM73C12035 | [3] | BOLT,M12x35mm - Course Thread | KOBSems, Start Serial: YQ11-06167 |
| 9. | ZS18C10035 | [2] | SCREW,Hex, M10 x 35mm | KOBCap |
| 10. | ZN18C08007 | [8] | NUT | KOBM08x1.25mm |
| 11. | ZN18C10008 | [2] | NUT | KOB |
| 12. | ZW16P10000 | [2] | WASHER | KOB |
| 13. | ZM73C12020 | [1] | BOLT,M12x20mm - Course Thread | KOBSems |
| 14. | YN12P01183P1 | [1] | BRACKET | KOB, Serial Range: YQ11-06001-YQ11-06166 |
| 15. | ZS18C12050 | [2] | SCREW,Hex, M12 x 50mm | KOBCap |
| 16. | ZW16H12000 | [2] | WASHER | KOB |
