神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (062-01A-1) - TANK INSTAL, HYD Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
524 次

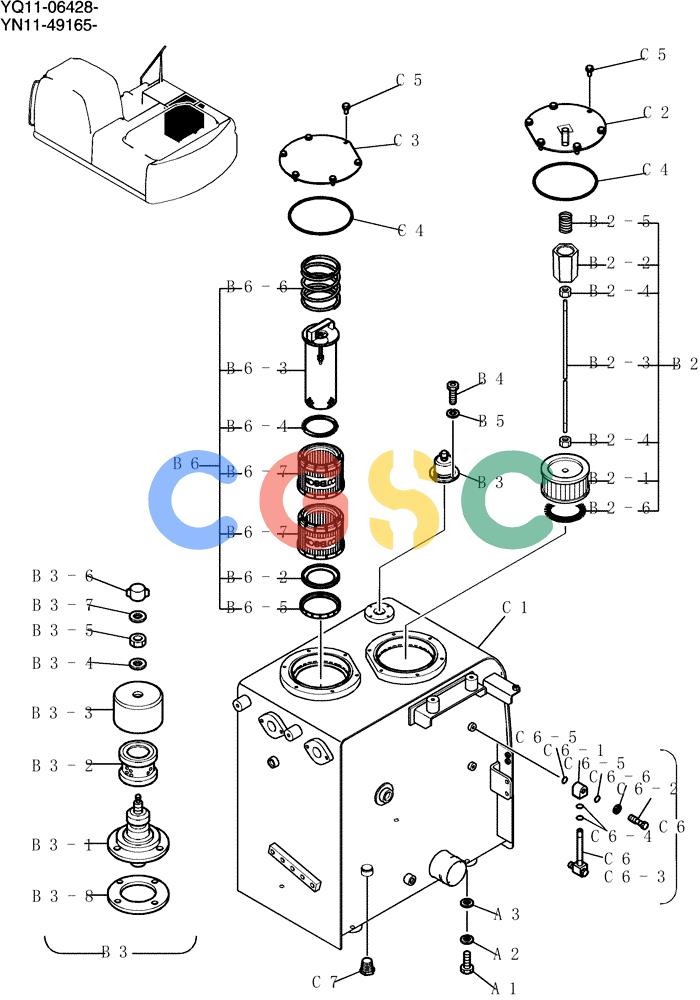

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN33H00070F1 | [1] | TANK | KOBInstal, Hyd |
| . . | YN33H00058F1 | [1] | TANK | KOBInstal, Hyd |
| A1. | ZS13C16040 | [4] | SCREW | KOBCap |
| A2. | ZW13H16000 | [4] | WASHER | KOB |
| A3. | LE33H01017D1 | [3] | SHIM,1.0mm Thk | KOB(1.0) |
| . . | YN33H00080F1 | [1] | FUEL TANK | KOBHyd |
| B2. | YN50V00025F1 | [1] | STRAINER ELEMENT | KOBAssy, Suction |
| B2-1. | YN50V00002S001 | [1] | STRAINER ASSY. | KOB |
| B2-2. | 2446R110S2 | [1] | HOLDER | KOBGuide |
| B2-3. | LS50V00007S003 | [1] | BOLT | KOB |
| B2-4. | ZN11C10008 | [2] | NUT | KOB Superseded by part number: ZN18C10008 |
| B2-5. | 2446R110S6 | [1] | SPRING | KOB |
| B2-6. | NSS | [1] | NOT SOLD SEPARAT | CONO-ring |
| B3. | YN57V00004F1 | [1] | BREATHER | KOBAssy Superseded by part number: YN57V00010F1 |
| B3-1. | NSS | [1] | NOT SOLD SEPARAT | CONBody Assy |
| B3-2. | YN57V00004S002 | [1] | ELEMENT | KOBFilter Superseded by part number: 47640920 |
| B3-3. | NSS | [1] | NOT SOLD SEPARAT | CONCover |
| B3-4. | NSS | [1] | NOT SOLD SEPARAT | CONSeal |
| B3-5. | NSS | [1] | NOT SOLD SEPARAT | CONNut |
| B3-6. | 2446U260S10 | [1] | NUT | KOB |
| B3-7. | NSS | [1] | NOT SOLD SEPARAT | CONSeal |
| B3-8. | 2446U260S8 | [1] | PACKING | KOB |
| B4. | ZS28C06016 | [4] | SCREW,Hex Socket Head, M6 x 16mm | KOBCap |
| B5. | ZW26K06000 | [4] | LOCK WASHER | KOB |
| B6. | YN52V01008F3 | [1] | ELEMENT | KOBFilter Superseded by part number: YN52V01016F3 |
| B6-2. | YN52V01008S002 | [1] | PLATE | KOB |
| B6-3. | YN21V00015P1 | [1] | CHECK VALVE | KOB |
| B6-4. | ZD11G09000 | [1] | O-RING,89.40mm ID x 95.60mm OD x 3.10mm | KOB |
| B6-5. | YN52V01008S005 | [1] | PACKING | KOB |
| B6-6. | LC33H01009P1 | [1] | SPRING | KOB |
| B6-7. | YN52V01011P1 | [2] | FILTER | KOBElement Superseded by part number: YN52V01021P1 |
| . . | YN52V01008R600 | [1] | ELEMENT | KOBKit Consists Of Ref. (b6-4)x1, (b6-5)x1 Superseded by part number: YN52V01016R600 |
| . . | YN33H00081F1 | [1] | TANK | KOBAssy Superseded by part number: YN33H00083P1 |
| C1. | YN33H00083P1 | [1] | TANK | KOB |
| C2. | YN33H01283P1 | [1] | COVER | KOB |
| C3. | YN33H01259P1 | [1] | COVER | KOB Superseded by part number: YN33H01259P2 |
| C4. | ZD11G19000 | [2] | O-RING,189.30mm ID x 200.70mm OD x 5.70mm | KOB |
| C5. | ZM73C10025 | [12] | BOLT,M10x25mm - Course Thread | KOB |
| C6. | YN58S00009F1 | [1] | GAUGE | KOBAssy, Level |
| C6-1. | NSS | [2] | NOT SOLD SEPARAT | CON |
| C6-2. | NSS | [2] | NOT SOLD SEPARAT | CON |
| C6-3. | NSS | [1] | NOT SOLD SEPARAT | CON |
| C6-4. | NSS | [4] | NOT SOLD SEPARAT | CON |
| C6-5. | NSS | [4] | NOT SOLD SEPARAT | CON |
| C6-6. | NSS | [2] | NOT SOLD SEPARAT | CON |
| C7. | ZE72X08000 | [1] | PLUG | KOB |
