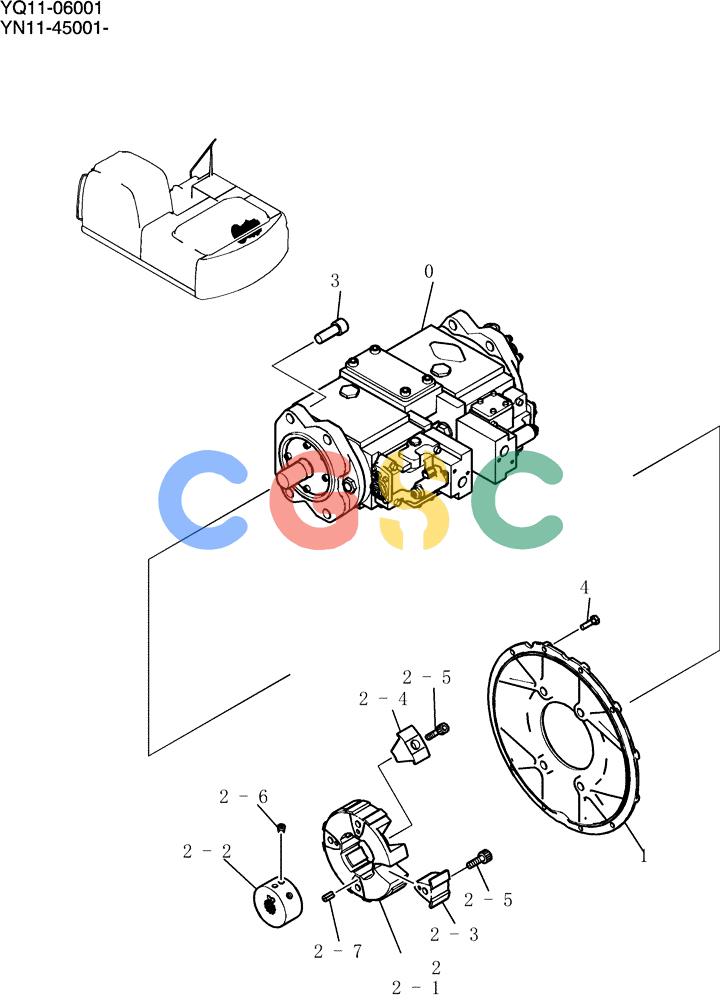

神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (070-01-1) - POWER TAKE-OFF ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
322 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN30P00020F1 | [1] | | |
| 0. | YN10V00036F1 | [1] | PUMP | KOB Superseded by part number: YN10V00036F4 |
| . . | YN30P00017F1 | [1] | | |
| 1. | YN30P01029P1 | [1] | BRACKET | SM |
| 2. | YN30P01028F1 | [1] | COUPLING | KOBAssy Superseded by part number: YN30P01028F2 |
| 2-1. | LQ30P01003S001 | [1] | COUPLING | KOBRubber |
| 2-2. | YN30P01028S002 | [1] | HUB | KOB |
| 2-3. | LQ30P01003S003 | [4] | THREADED INSERT | KOBNa |
| 2-4. | LQ30P01003S004 | [4] | THREADED INSERT | KOBR |
| 2-5. | LQ30P01003S005 | [8] | SCREW | KOBCap |
| 2-6. | YN30P01028S006 | [2] | SET SCREW | KOB |
| 2-7. | ZP26D05010 | [4] | PIN | KOBSpring |
| 3. | ZS28C20055 | [4] | CAP,Hex Socket Head, M20 x 55mm | KOB |
| 4. | ZS18C10035 | [8] | SCREW,Hex, M10 x 35mm | KOBCap |
