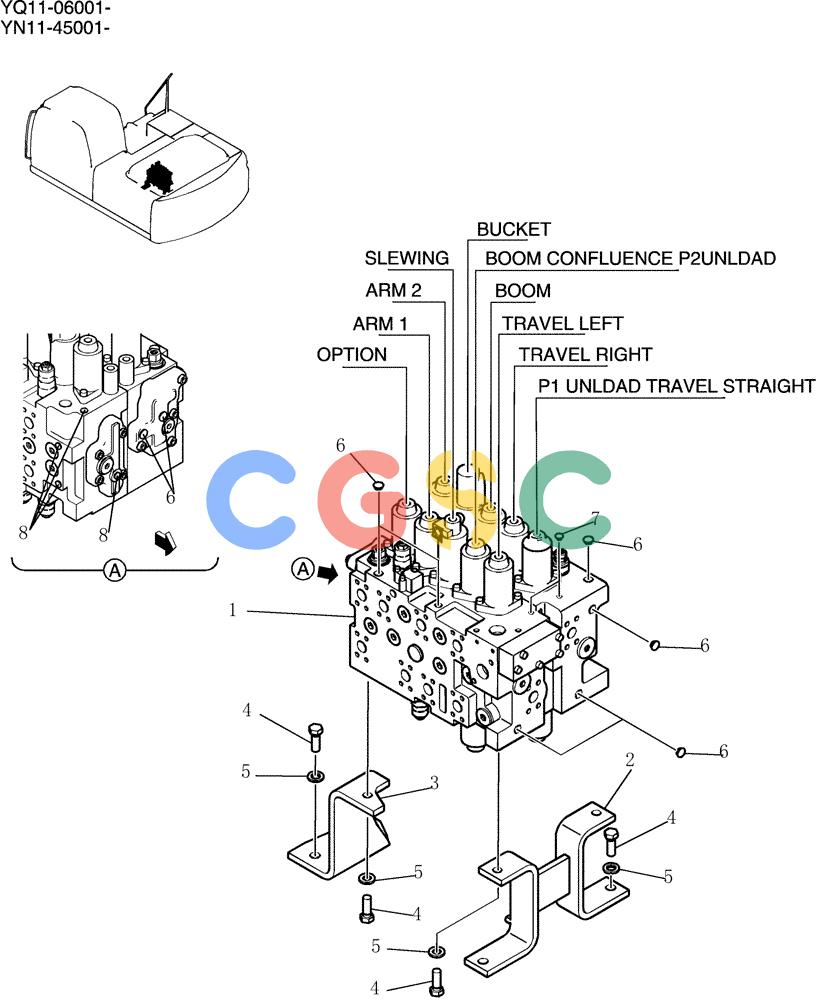

神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (080-01-1) - VALVE INSTAL Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
721 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YN30V00101F1 | [1] | VALVE, CONTROL | KOBAssy, Serial Range: YQ11-06001-YQ11-06136 Superseded by part number: YN30V00101F6 |
| . . | YN30V00101F3 | [1] | CONTROL VALVE | KOBAssy, Serial Range: YQ11-06137-YQ11-06214 Superseded by part number: YN30V00101F6 |
| . . | YN30V00101F2 | [1] | CONTROL VALVE | KOBAssy, Start Serial: YQ11-06215 Superseded by part number: YN30V00101F6 |
| 2. | YN64H01261P1 | [1] | BRACKET | KOB |
| 3. | YN64H01316P1 | [1] | BRACKET | KOB |
| 4. | ZS18C16045 | [7] | SCREW,Hex, M16 x 45mm | KOBCap |
| 5. | ZW16H16000 | [7] | WASHER | KOB |
| 6. | PV02B01073D7 | [8] | CAP | KOB, Serial Range: YQ11-06001-YQ11-06136 Superseded by part number: YN64H01392D1 |
| . . | YN64H01392D1 | [8] | CAP | KOB, Start Serial: YQ11-06137 |
| 7. | PV02B01073D4 | [2] | CAP | KOB, Serial Range: YQ11-06001-YQ11-06136 Superseded by part number: YN64H01393D1 |
| . . | YN64H01393D1 | [2] | CAP | KOB, Start Serial: YQ11-06137 |
| 8. | PV02B01073D3 | [4] | CAP | KOB, Serial Range: YQ11-06001-YQ11-06136 Superseded by part number: YN64H01391D1 |
| . . | YN64H01391D1 | [4] | CAP | KOB, Start Serial: YQ11-06137 |
