神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (100-01-2) - HYD LINES, UPP (MAIN) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
199 次

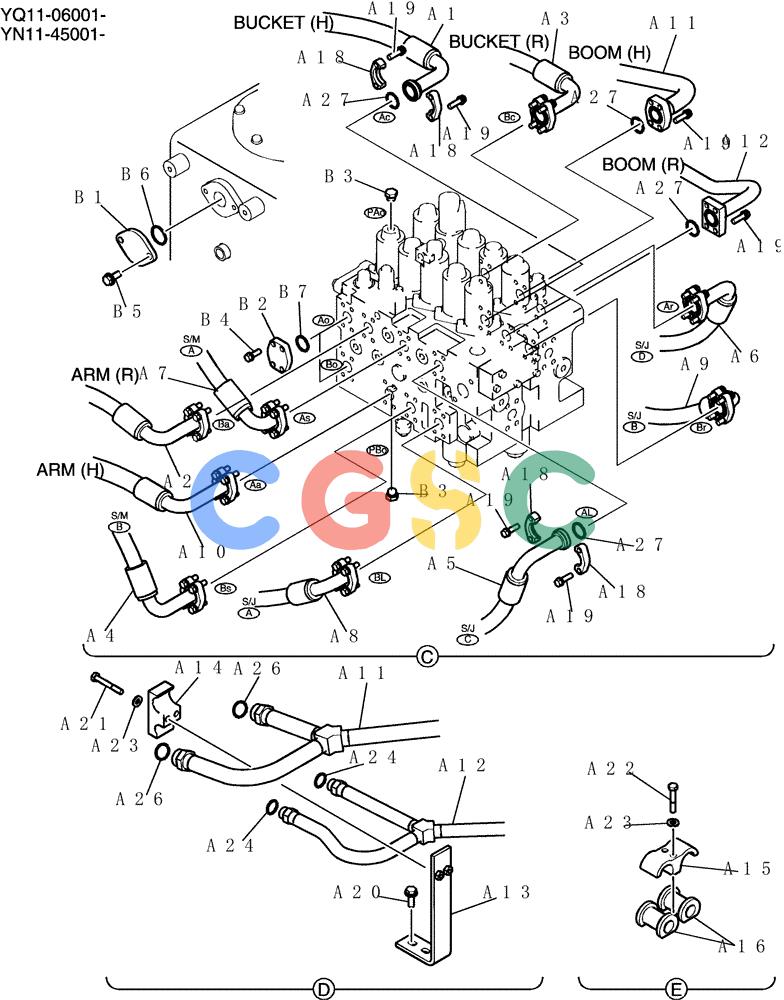

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN03H00122F1 | [1] | Hyd, Upper | |
| . . | YN03H00125F1 | [1] | Hyd, Upper | |
| A1. | YN03H01805D1 | [1] | HYDRAULIC HOSE | KOB |
| A2. | YN03H01886D1 | [1] | HYDRAULIC HOSE | KOB |
| A3. | YN03H01886D2 | [1] | HYDRAULIC HOSE | KOB |
| A4. | YN03H01886D3 | [1] | HYDRAULIC HOSE | KOB |
| A5. | YN03H01886D4 | [1] | HOSE | KOB |
| A6. | YN03H01886D5 | [1] | HYDRAULIC HOSE | KOB |
| A7. | YN03H01887D1 | [1] | HYDRAULIC HOSE | KOB |
| A8. | YN03H01887D2 | [1] | HYDRAULIC HOSE | KOB |
| A9. | YN03H01887D3 | [1] | HYDRAULIC HOSE | KOB |
| A10. | YN03H01889D1 | [1] | HOSE | KOB |
| A11. | YN03H01851P1 | [1] | TUBE | KOB |
| A12. | YN03H01852P1 | [1] | TUBE | KOB |
| A13. | YN03H01854P1 | [1] | SUPPORT | KOB |
| A14. | YN03H01840P1 | [1] | CLAMP | KOB |
| A15. | YN03H01427P1 | [2] | CLAMP | KOB |
| A16. | YN03H01432P1 | [4] | BUSHING,28mm ID x 56mm OD x 70mm L | KOB |
| A17. | ZG23F12012 | [2] | HYD CONNECTOR | KOB |
| A17-1. | ZD12P02400 | [1] | O-RING | KOB |
| A18. | ZE12X16000 | [20] | CLAMP | KOBHalf |
| A19. | HM83C10035G1 | [48] | BOLT | KOBSems |
| A20. | ZM73C12035 | [2] | BOLT,M12x35mm - Course Thread | KOBSems |
| A21. | ZS18C10075 | [2] | SCREW,Hex, M10 x 75mm | KOBCap |
| A22. | ZS18C10060 | [4] | SCREW,Hex, M10 x 60mm | KOBCap |
| A23. | ZW16H10000 | [6] | WASHER | KOB |
| A24. | ZD12A01600 | [2] | O-RING | KOB |
| A25. | ZD12A01800 | [2] | O-RING,1.78mm Thk x 18.77mm ID, Cl 6 | KOB |
| A26. | ZD12A02100 | [2] | O-RING | KOB |
| A27. | ZD12P03400 | [12] | O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro | KOB |
| . . | YN03H00126F1 | [1] | Hyd, Upper | |
| B1. | YN03H01884P1 | [1] | PLUG | SM |
| B2. | ZE12Q16000 | [2] | PLUG | KOB |
| B3. | ZE72X06000 | [2] | PLUG | KOB |
| B4. | HM83C10030G1 | [8] | BOLT | KOBSems |
| B5. | ZM73C12030 | [2] | BOLT,M12x30mm - Course Thread | KOBSems |
| B6. | ZD12P04800 | [1] | O-RING,3.5mm Thk x 47.7mm ID | KOB |
| B7. | ZD12P03400 | [2] | O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro | KOB |
