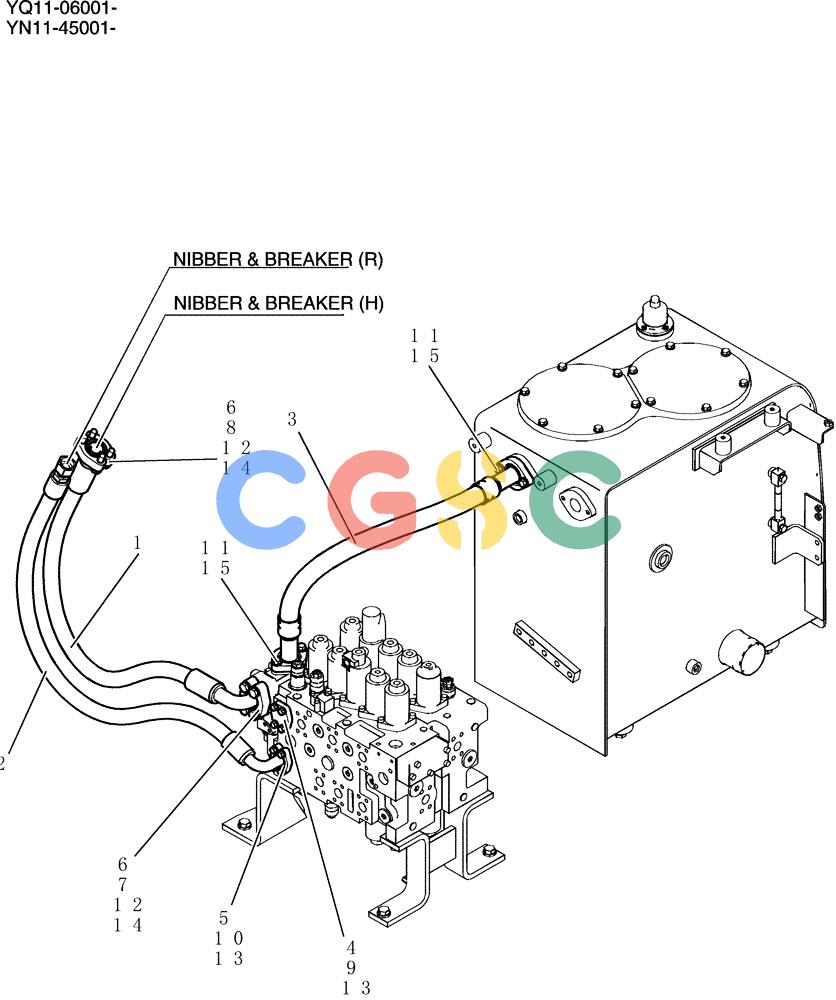

神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (100-60-1) - HYD LINES, UPP Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
860 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN03H00123F1 | [1] | Hyd, Upper | |
| . . | YN03H00125F1 | [1] | Hyd, Upper (See fig No. 100-01-1) | |
| . . | YN03H00127F1 | [1] | HYD TUBE | KOBHyd, Upper |
| 1. | YN03H01806D1 | [1] | HYDRAULIC HOSE | KOB |
| 2. | YN03H01807D1 | [1] | HYDRAULIC HOSE | KOB |
| 3. | LQ03H01282D1 | [1] | HOSE,38.1mm ID x 900mm L | KOB |
| 4. | ZE12Q16000 | [1] | PLUG | KOB |
| 5. | ZE12X16000 | [2] | CLAMP | KOBHalf |
| 6. | ZE13X20001 | [4] | CLAMP | KOBHalf Superseded by part number: ZE13X20000 |
| 7. | ZS18C14045 | [4] | CAP,Hex, M14 x 45mm | KOBScrew |
| 8. | ZS18C14050 | [4] | SCREW,Hex, M14 x 50mm | KOBCap |
| 9. | HM83C10030G1 | [4] | BOLT | KOBSems |
| 10. | HM83C10035G1 | [4] | BOLT | KOBSems |
| 11. | HM83C12035G1 | [4] | BOLT | KOBSems |
| 12. | ZW26X14000 | [8] | WASHER | KOB |
| 13. | ZD12P03400 | [2] | O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro | KOB |
| 14. | ZD12P03800 | [2] | O-RING | KOB |
| 15. | ZD12P04800 | [2] | O-RING,3.5mm Thk x 47.7mm ID | KOB |
