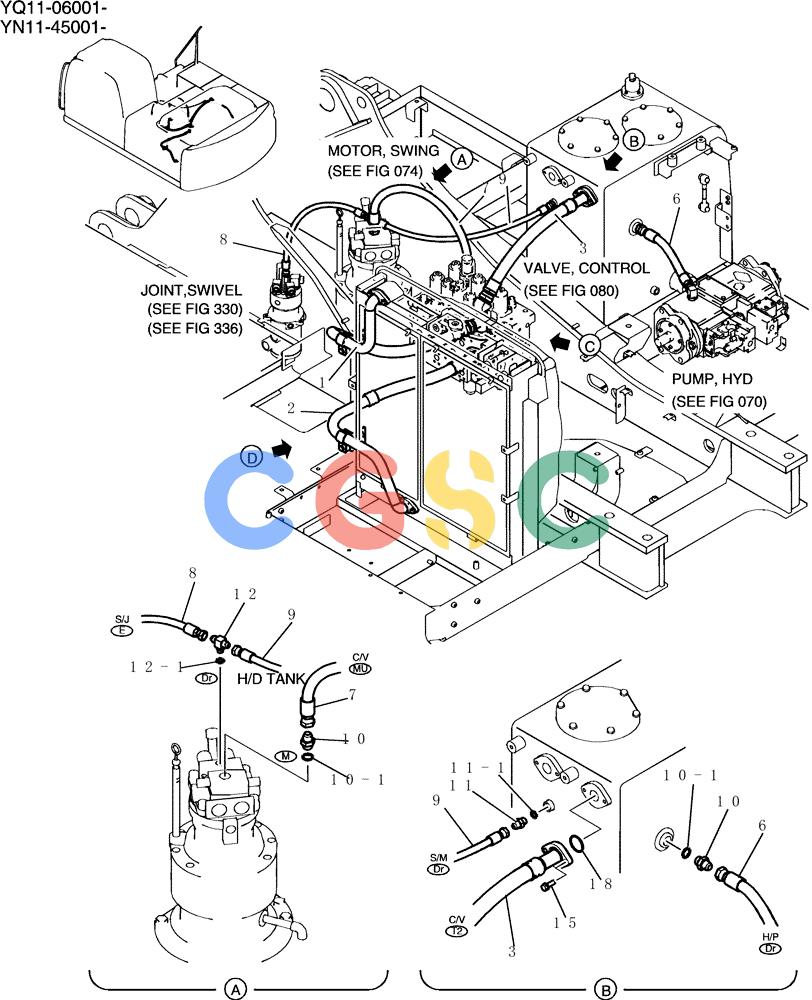

神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (110-01-1) - HYD LINES, RETURN Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
893 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN32H00049F1 | [1] | Hyd, Return | |
| . . | YN32H00043F1 | [1] | Hyd, Return | |
| 1. | YN32H01224D1 | [1] | HOSE | KOB |
| 2. | YN32H01226D1 | [1] | HOSE | KOB |
| 3. | YN32H01211D1 | [1] | HOSE,38.1mm ID x 660mm L | KOB |
| 4. | YN32H01231P1 | [1] | ELEC CONNECTOR | KOBAssy |
| 5. | YN32H01218P1 | [2] | PLATE | KOB |
| 6. | ZX22M12042 | [1] | HOSE | KOB |
| 7. | ZX22M12088 | [1] | HOSE | KOB Superseded by part number: ZX22M12090 |
| 8. | ZX22M08070 | [1] | HOSE,12.7mm ID x 700mm L | KOB |
| 9. | ZX22M08084 | [1] | HOSE | KOB Superseded by part number: ZX22M08085 |
| 10. | ZH22X12000 | [3] | HYD CONNECTOR | KOB |
| 10-1. | ZD12P02400 | [1] | O-RING | KOB |
| 11. | ZH22X08000 | [1] | HYD CONNECTOR | KOB |
| 11-1. | ZD12P01800 | [1] | O-RING | KOBID 17.8mm x OD 20.2mm |
| 12. | 2444Z2360 | [1] | TEE | KOB |
| 12-1. | ZD12P01400 | [1] | O-RING | KOB |
| 13. | YN32H01066P1 | [2] | CLAMP | KOB |
| 14. | ZM73C12030 | [4] | BOLT,M12x30mm - Course Thread | KOBSems |
| 15. | HM83C12035G1 | [10] | BOLT | KOBSems |
| 16. | ZS18C12055 | [2] | SCREW,Hex, M12 x 55mm | KOBCap |
| 17. | ZW16H12000 | [2] | WASHER | KOB |
| 18. | ZD12P04800 | [3] | O-RING,3.5mm Thk x 47.7mm ID | KOB |
| 20. | ZN18C12010 | [2] | NUT | KOB |
