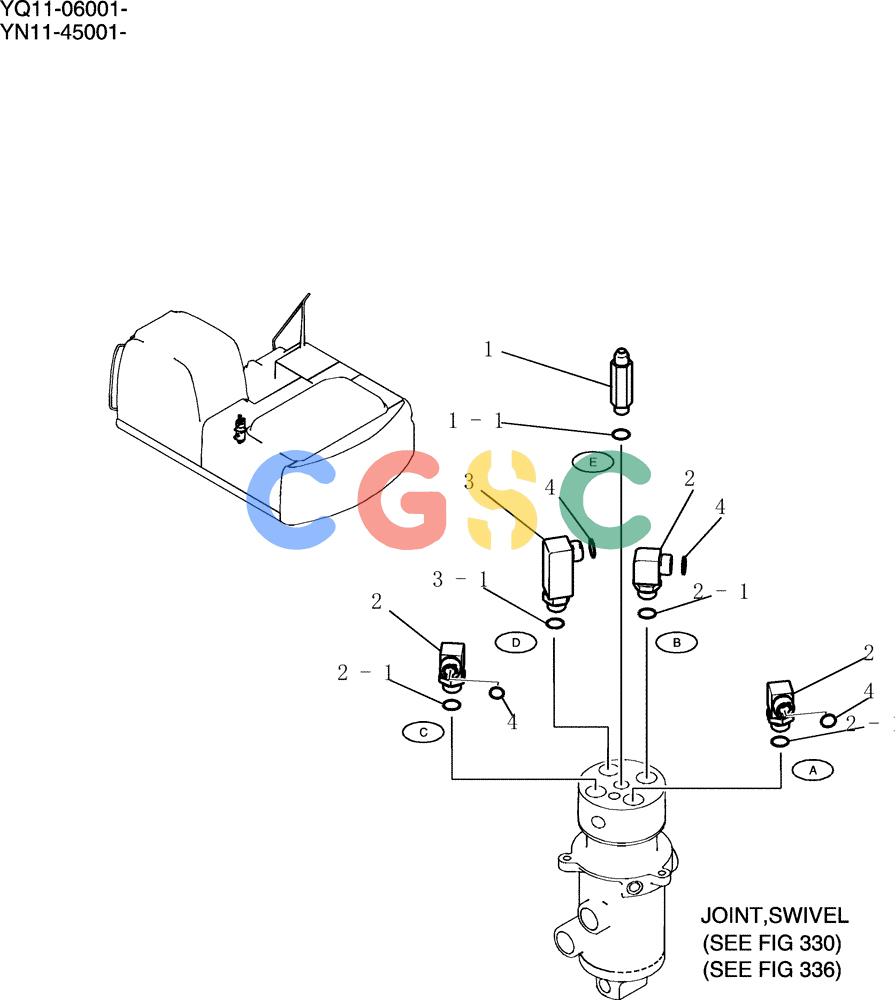

神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (102-01-1) - HYD LINES, SWIVEL Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
214 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN19H00047F1 | [1] | Hyd, Swivel | |
| 1. | HH25X08008G5 | [1] | ELEC CONNECTOR | KOB |
| 1-1. | ZD12P01800 | [1] | O-RING | KOBID 17.8mm x OD 20.2mm |
| 2. | ZG33F12012 | [3] | 90 ELBOW,1 3/16"-12 UN x PF 3/4" | KOB |
| 2-1. | ZD12P02400 | [1] | O-RING | KOB |
| 3. | YN03H01172P1 | [1] | ELBOW,1-3/16" - 12 ORFS x 3/4" ORB | KOB |
| 3-1. | ZD12P02400 | [1] | O-RING | KOB |
| 4. | ZD12A01800 | [4] | O-RING,1.78mm Thk x 18.77mm ID, Cl 6 | KOB |
