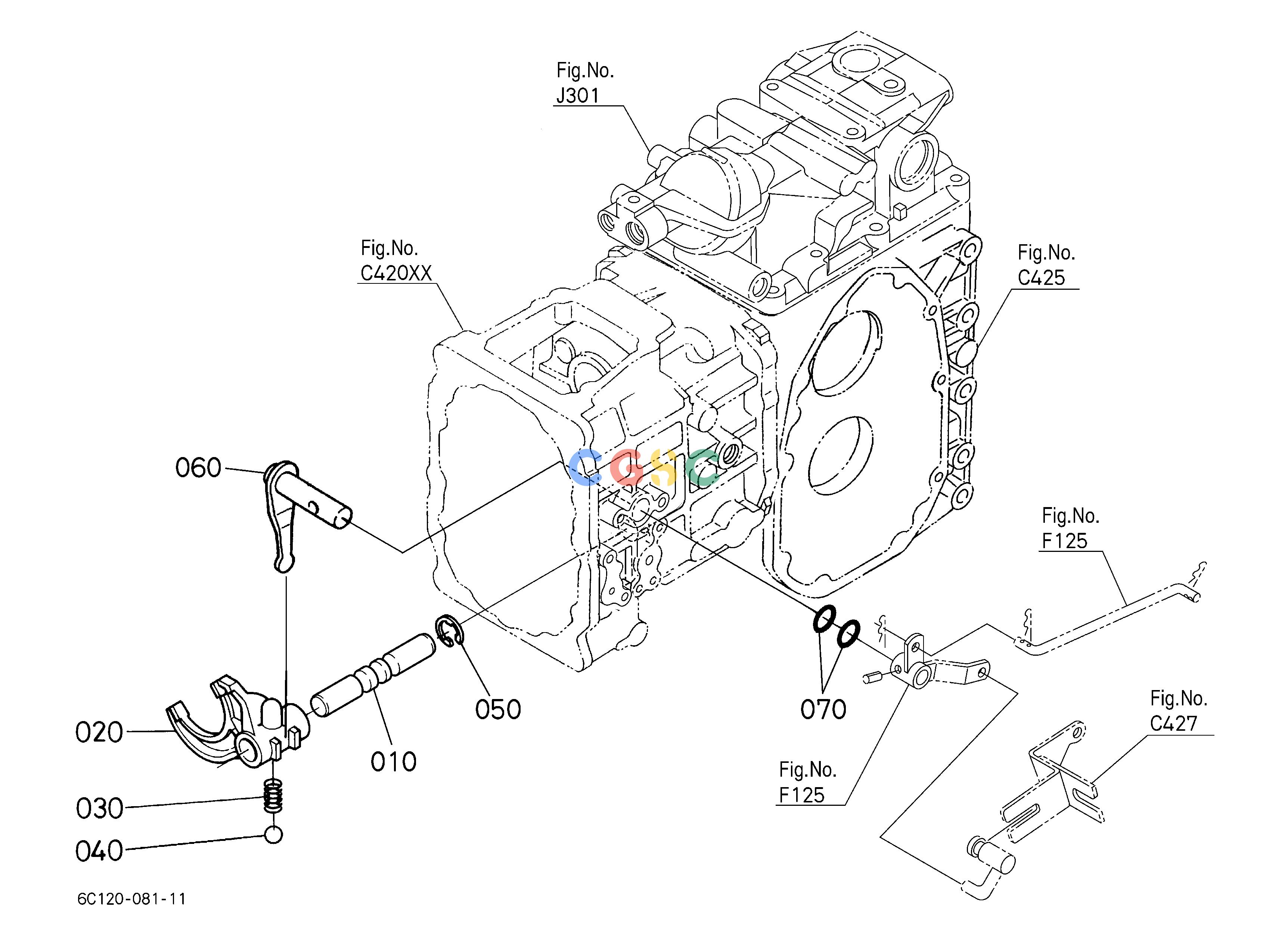

久保田零件查询D22001 PTO GEAR SHIFT FORK SPEED CHANGEEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
1002 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C09018612
|
[1] |
ROD FORK
|
0.2420(lbs); 0.110
|
| 020. |
6C09018620
|
[1] |
FORK PTO SHIFT
|
0.1980(lbs); 0.090
|
| 030. |
6206118260
|
[1] |
SPRING STOPPER
|
0.0044(lbs); 0.002
|
| 040. |
0771501605
|
[1] |
BALL
|
0.0066(lbs); 0.003
|
| 050. |
0461350120
|
[1] |
CIR CLIP EXTERNAL
|
0.0022(lbs); 0.001
|
| 060. |
6C04018710
|
[1] |
ARM PTO SHIFT
|
0.3410(lbs); 0.155
|
| 060. |
6C04018712
|
[1] |
ARM PTO SHIFT
|
0.3520(lbs); 0.160
|
| 070. |
0481100160
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 070. |
0481600160
|
[2] |
O RING
|
0.0066(lbs); 0.003
|
