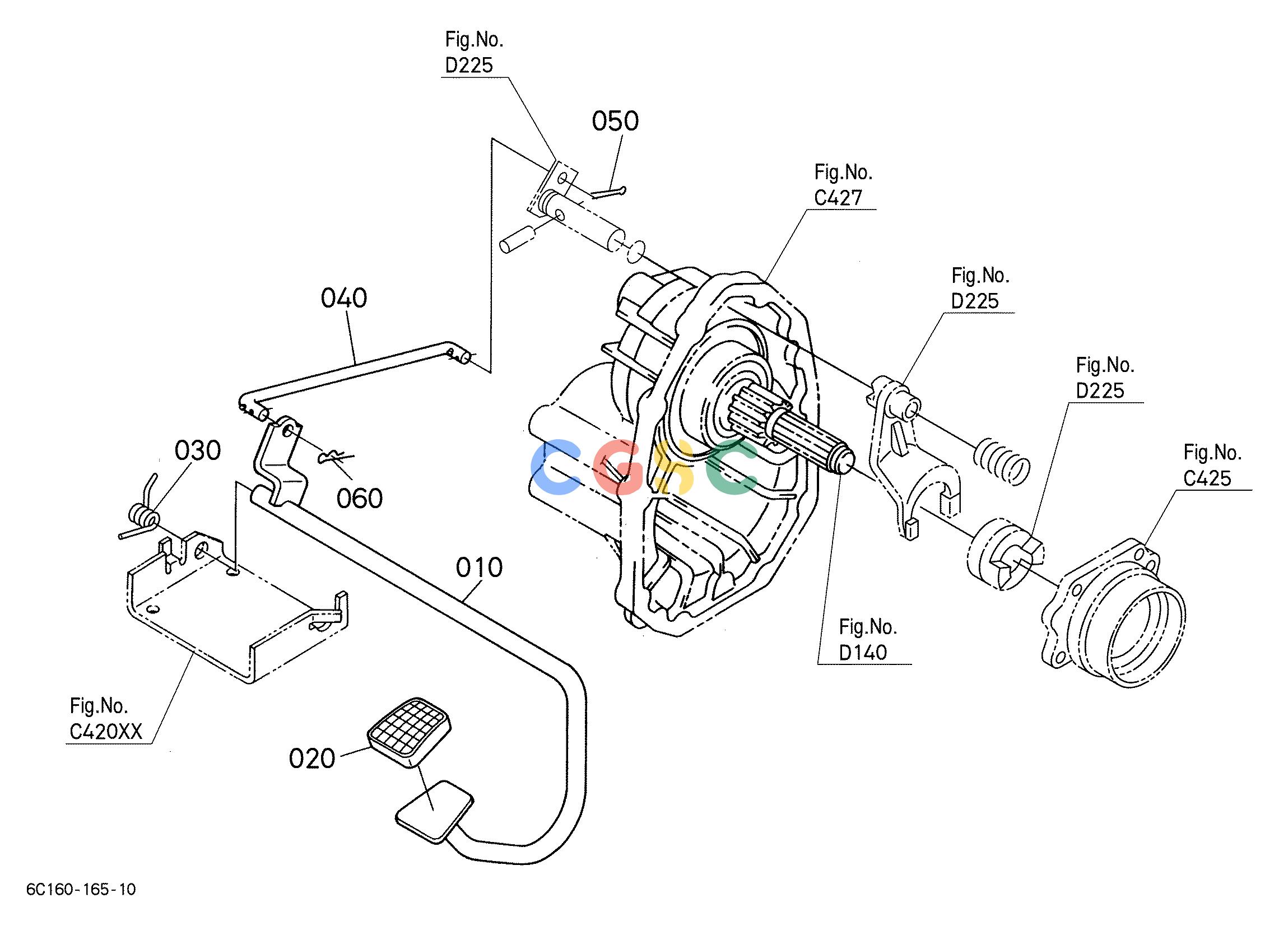

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 010. | 6C05042872 | [1] | PEDAL DIFF.LOCK | 2.6400(lbs); 1.200 |
| 020. | 3741042760 | [1] | COVER PEDAL | 0.0550(lbs); 0.025 |
| 030. | 6C05042890 | [1] | SPRING | 0.0880(lbs); 0.040 |
| 040. | 6C04042880 | [1] | ROD DIFF.LOCK | 0.2200(lbs); 0.100 |
| 050. | 0551150215 | [1] | PIN SPLIT | 0.0022(lbs); 0.001 |
| 060. | 0552550800 | [1] | PIN SNAP | 0.0022(lbs); 0.001 |
