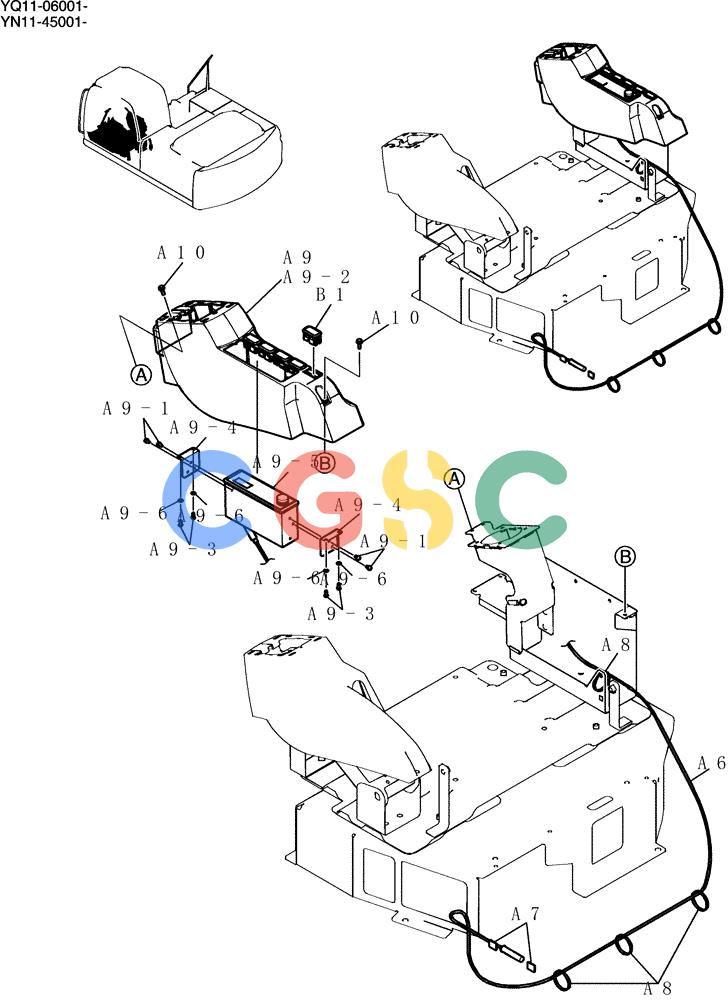

神钢零件查询(200-8) - EXCAVATOR S/N YN11-45001 - (1/06-12/09) (129-01-1) - RADIO INSTAL Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
877 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN54E00006F1 | [1] | Instal | |
| A6. | YN17M01072P1 | [1] | CABLE | KOB Superseded by part number: 72203961 |
| A7. | 2432Z478D1 | [2] | CLIP | KOB |
| A8. | PY01P01043D3 | [4] | CABLE TIE,188mm L | KOB |
| . . | YN54E00013F1 | [1] | Instal | |
| A9-1. | 2420R1089D1 | [4] | BOLT,M5 x 10mm | KOBSems |
| A9-2. | YN03M01942F1 | [1] | GUARD | SMCover Assy Superseded by part number: YN03M01942F2 |
| A9-3. | YN17M01262P1 | [4] | SCREW,Phillips Drive, Pan HD, M5 x 10mm | SMTapping |
| A9-4. | YN54E01020P1 | [2] | BRACKET | KOB |
| A9-5. | YN54S00044P1 | [1] | RADIO | KOB Superseded by part number: YN54S00074P1 |
| A9-6. | ZW16P05000 | [4] | WASHER | KOB |
| A10. | ZM66C06016 | [3] | BOLT | KOBSems |
| . . | YN50E00018F1 | [1] | Instal | |
| B1. | YN17M01282P1 | [5] | CAP | KOB Superseded by part number: YN17M01282P2 |
